BIM-CH1 insulation monitoring device for AC DC system

BIM-CH1 (6)

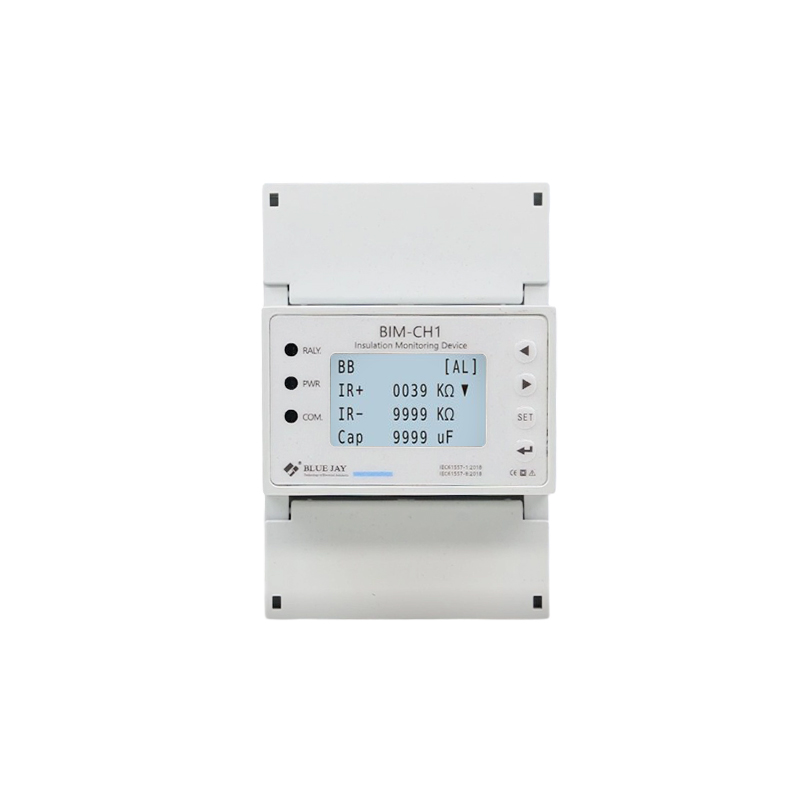

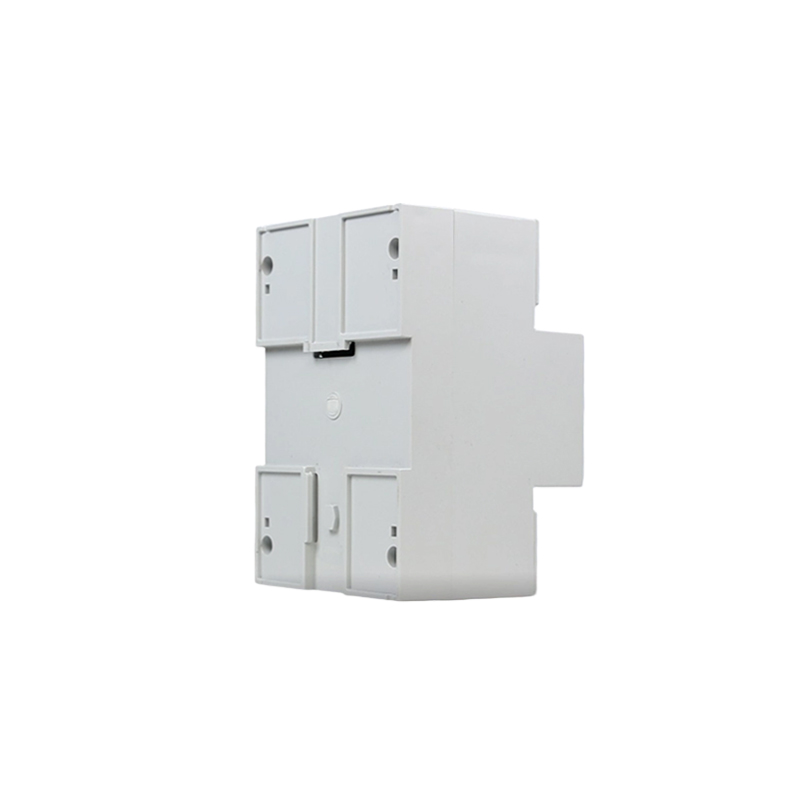

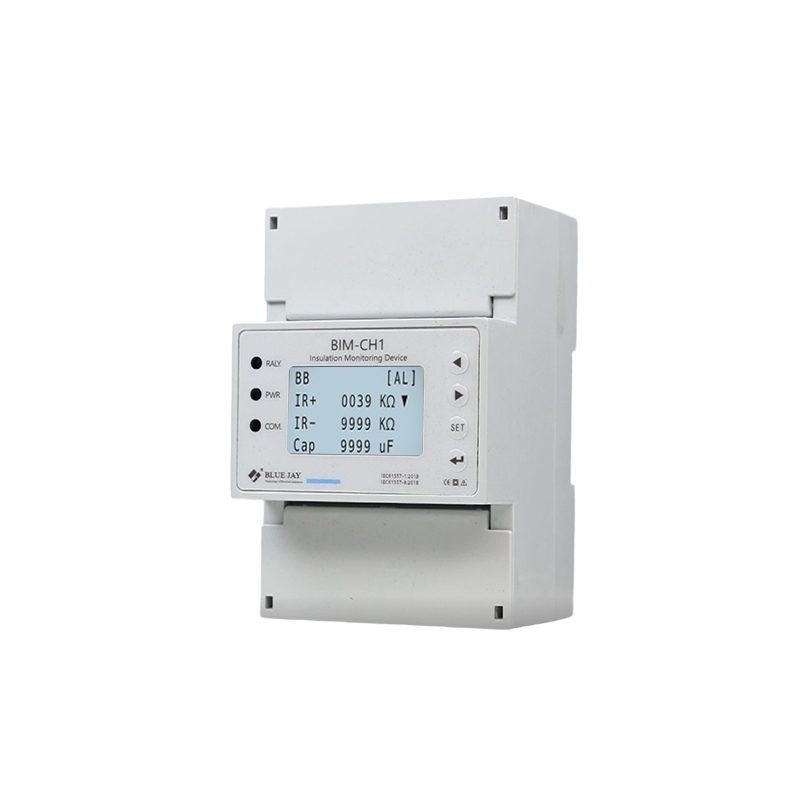

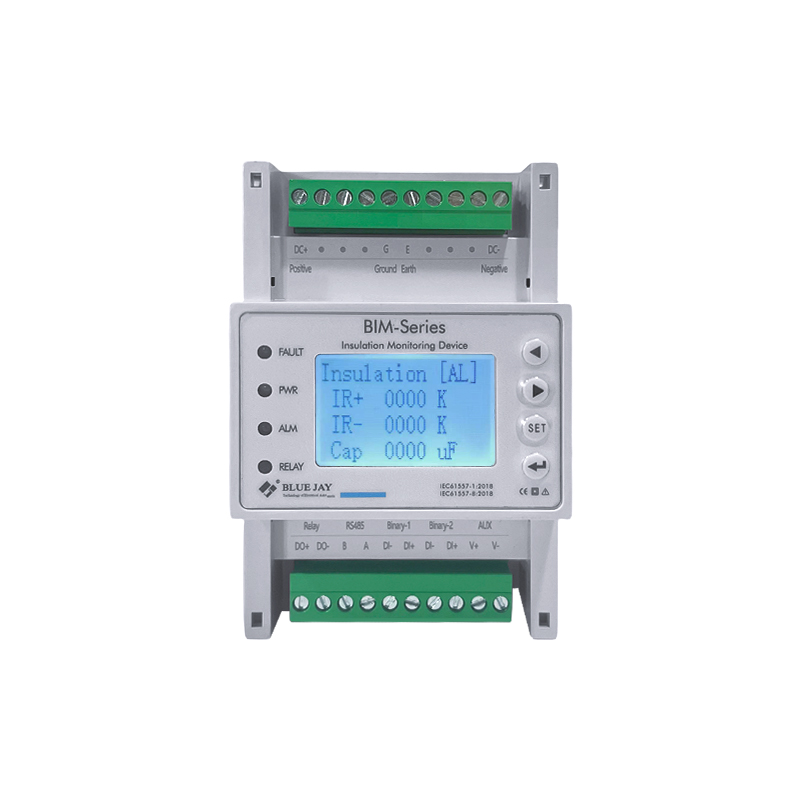

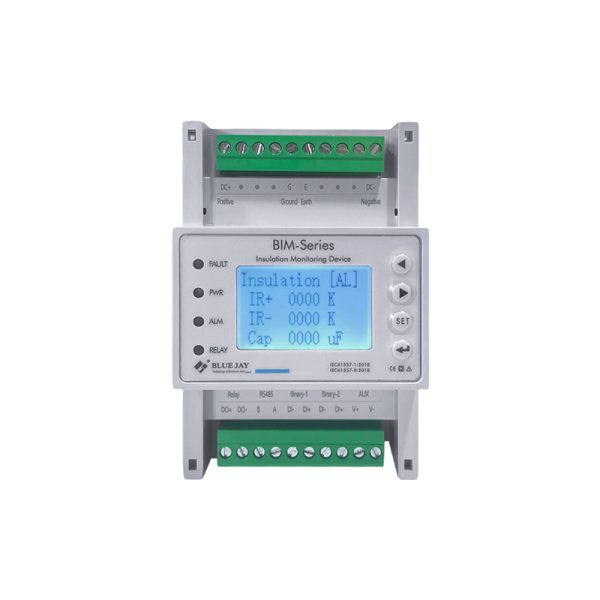

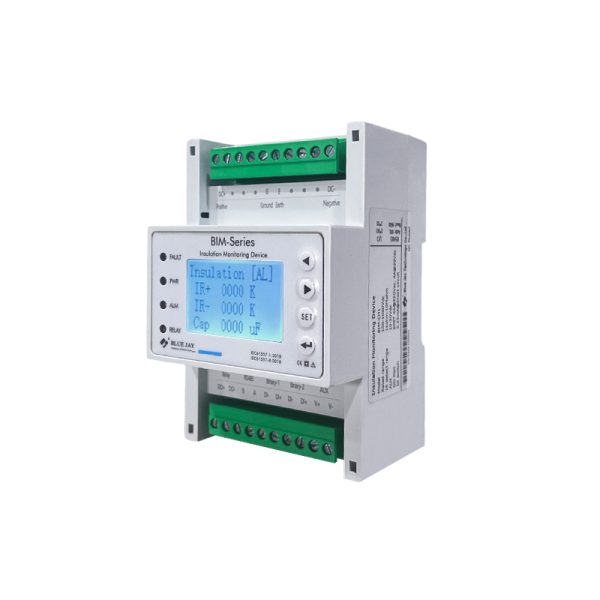

BIM-CH1 Insulation Monitoring Device

The BIM-CH1 insulation monitoring device monitors the insulation resistance of DC systems (IT systems) devices up to DC 0- 1000V. BIM-CH1 has insulation monitoring start and stop functions. After insulation monitoring is turned on, it can real time monitor the insulation resistance of the positive and negative poles to the ground. The monitoring results are not affected by DC voltage fluctuations and the symmetry of the insulation resistance of the positive and negative poles.

BIM-CH1 is equipped with RS485 /Modbus communication, which can remotely monitor the system status. BIM-CH1 uses two working principles for monitoring: unbalanced bridge method to monitor the insulation resistance value to ground, and balanced bridge method to monitor the voltage value to ground. Optional temperature sensor can be used for system temperature measurement.

Category: Insulation Monitor

BIM-CH1 insulation monitoring device for AC DC system

BIM-CH1 (6)

The BIM-CH1 insulation monitoring device monitors the insulation resistance of DC systems (IT systems) devices up to DC 0- 1000V. BIM-CH1 has insulation monitoring start and stop functions. After insulation monitoring is turned on, it can real time monitor the insulation resistance of the positive and negative poles to the ground. The monitoring results are not affected by DC voltage fluctuations and the symmetry of the insulation resistance of the positive and negative poles.

BIM-CH1 is equipped with RS485 /Modbus communication, which can remotely monitor the system status. BIM-CH1 uses two working principles for monitoring: unbalanced bridge method to monitor the insulation resistance value to ground, and balanced bridge method to monitor the voltage value to ground. Optional temperature sensor can be used for system temperature measurement.

Category: Insulation Monitor

Feature

Adaptive capacitance to ground;
Widely insulation monitoring range (100V~1000VDC);
Monitoring the insulation resistance for unearthed DC systems: 0KΩ~10MΩ;
Two working modes: balanced bridge method, used to monitor the voltage value to the ground / unbalanced bridge method, used to monitor the insulation resistance to the ground;
Measured value indication via a multi-functional LCD display;
Automatic device self-test with connection monitoring;
DC voltage reverse connection alarm function;
RS485 communication, MODBUS RTU protocol;
Selectable N/C or N/O relay operation;
Password protection to prevent unauthorized parameter changes;
Optional temperature sensor for system temperature measurement.

Specification

Parameter	Value
Power supply	10-30VDC, Power 3w
DC voltage range	100V~1000V
DC voltage measurement accuracy	≤2V+0.3%
Insulation resistance measurement range	1KΩ~10MΩ (DC System voltage:100V~1000V)
Insulation monitoring accuracy ((When :DC voltage:100V-1000V)	C_Y range	Resistance range		Accuracy
	0~0.8μF	≤60kΩ		≤3kΩ
		60kΩ<R≤1MΩ		≤5%
	0.8μF ~3μF	≤60kΩ		≤6kΩ
		60kΩ<R≤1MΩ		≤20%
Insulation resistance value update time after turning on	After insulation monitoring is turned on, the time until the effective resistance value can be read for the first time		0.7s~2s
Insulation resistance value update time	Switch the insulation resistance until the module can read the switched insulation resistance value.		0.5s~3s
Insulation monitoring function switching times	50*10⁵ times
Off-line pressure test	<2mA
Standard	IEC 61557-8:2018
Humidity	85%
Storage temperature	– 40°C ~125°C
Operating temperature	– 40°C ~75°C

Withstand voltage test

Pressure point	Maximum voltage rating	Time
DC+/DC- to GND	4200VDC/3000VAC	≤1min
Power supply +/- to GND	3500VDC/2500VAC	≤1min
RS485 A/B to GND	3500VDC/2500VAC	≤1min
DC+/DC- to Power supply +/-	3500VDC/2000VAC	≤1min
DC+/DC- to A/B	3500VDC/2000VAC	≤1min

Application

DC charging systems;
DC system up to 1000 V;
Railway vehicle, electric vehicle (EV/HEV);
Photovoltaic solar system, energy storage systems;
Substation DC panels, UPS power supply system;
Medical fields and others;

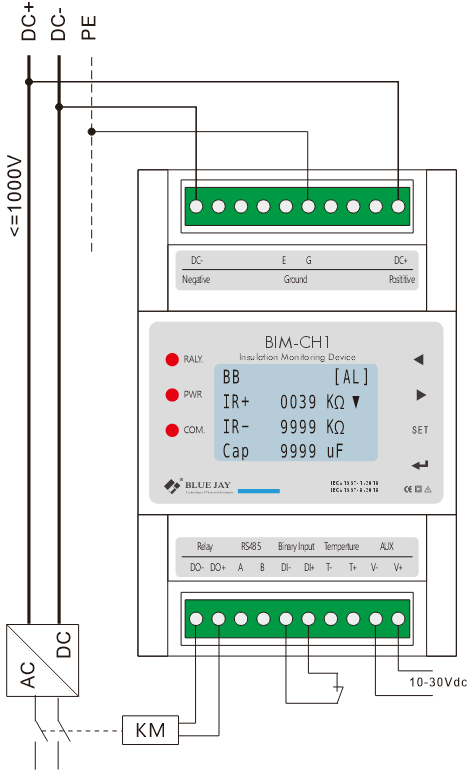

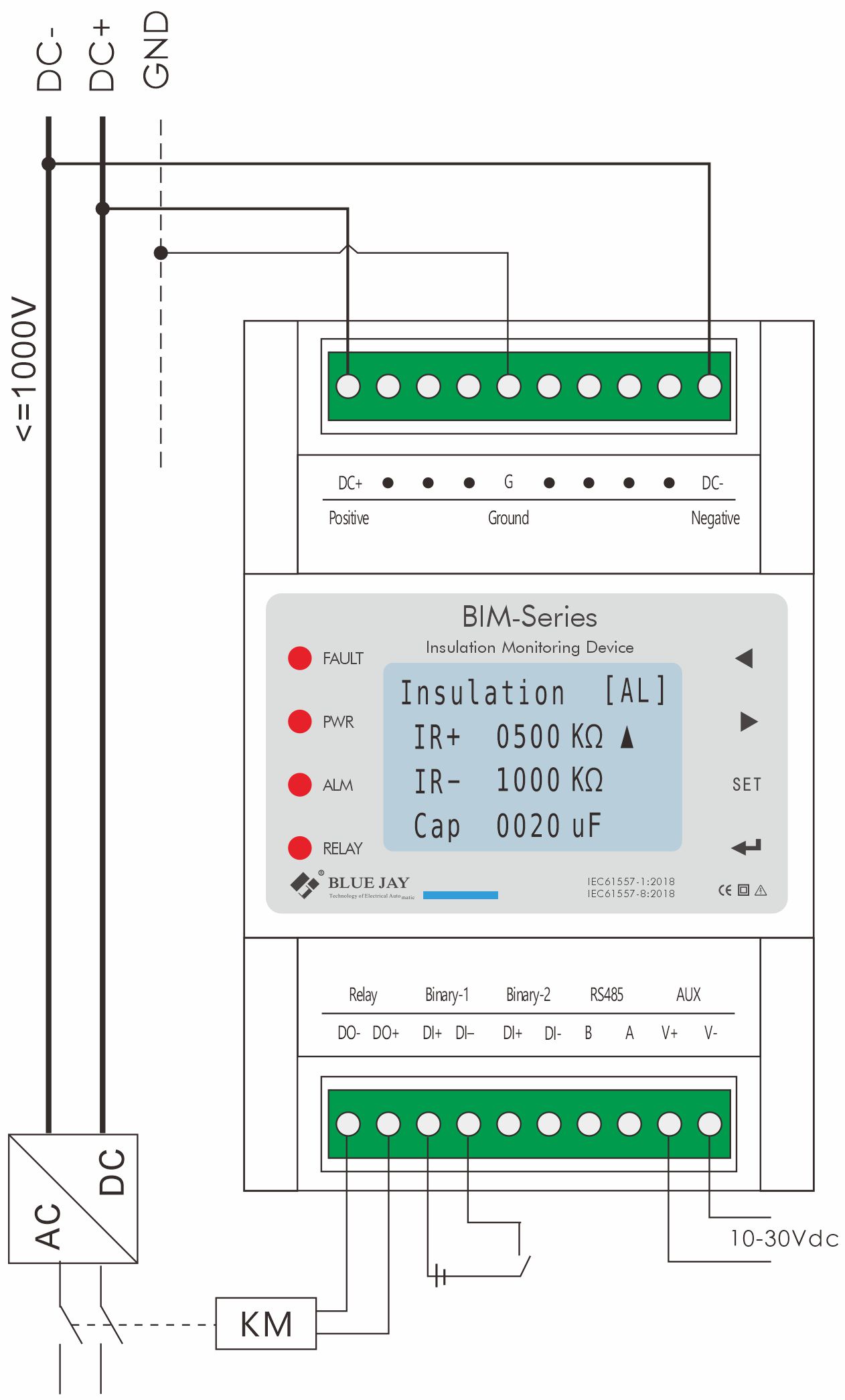

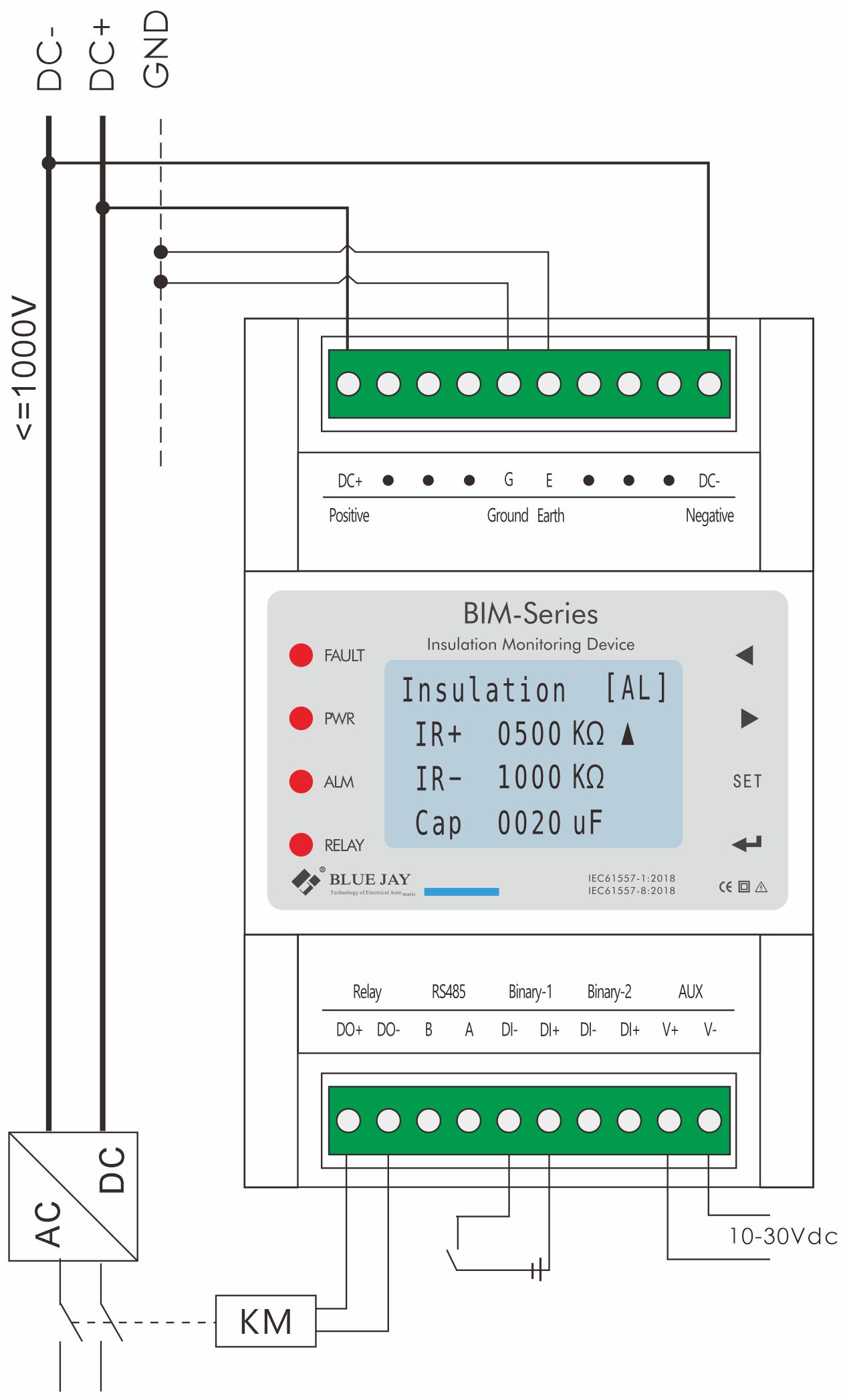

Wiring method

Dimension

Download

BIM-CH1-User manual-V1.10
