F-FTU200 Recloser Controller

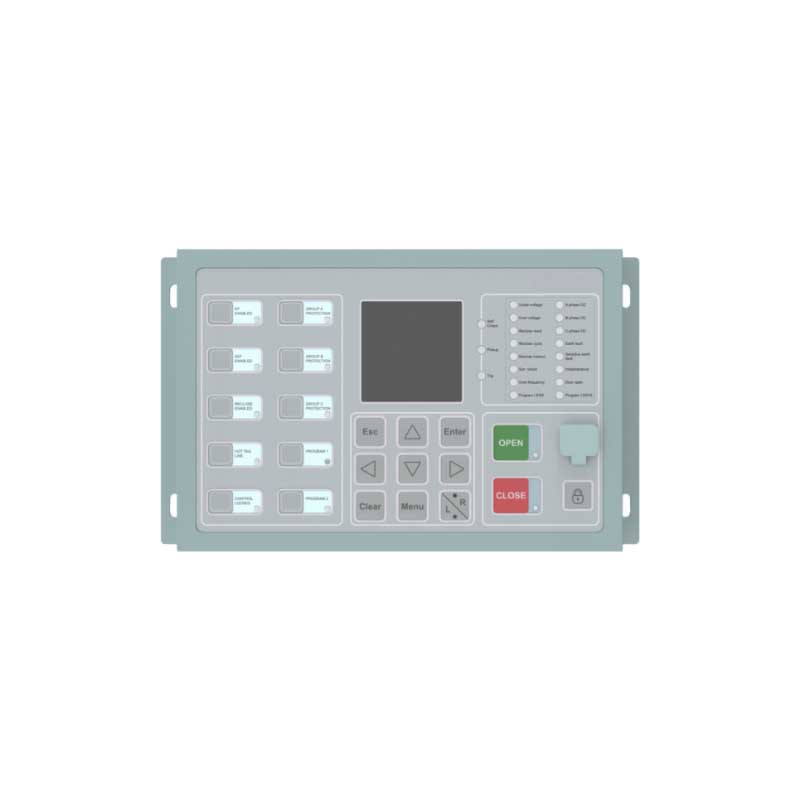

F-FTU200 Recloser Controller

F-FTU200 Recloser Controller is critical for achieving feeder automation in modern power distribution networks. Their primary role is to execute Fault Detection, Isolation, and Restoration (FDIR), ensuring quick fault clearance and minimizing outage times. By enhancing the reliability and stability of the power supply, FTUs significantly improve the efficiency of power distribution systems.

The F-FTU200 series is designed to integrate seamlessly with a wide range of pole-mounted switches, including Automatic Circuit Reclosers (ACRs), Load Break Switches (LBS), and Circuit Breakers (CBs). These units support advanced automation functions and adhere to IEC and ANSI international standards, offering flexible and scalable solutions for diverse grid applications.

Category:

F-FTU200 Recloser Controller is critical for achieving feeder automation in modern power distribution networks. Their primary role is to execute Fault Detection, Isolation, and Restoration (FDIR), ensuring quick fault clearance and minimizing outage times. By enhancing the reliability and stability of the power supply, FTUs significantly improve the efficiency of power distribution systems.

The F-FTU200 series is designed to integrate seamlessly with a wide range of pole-mounted switches, including Automatic Circuit Reclosers (ACRs), Load Break Switches (LBS), and Circuit Breakers (CBs). These units support advanced automation functions and adhere to IEC and ANSI international standards, offering flexible and scalable solutions for diverse grid applications.

Category:

Feature



  • Multiple protection

Support definite time curve, 26 l inverse definite minimum time curves, 24 user-defined curves, comply with IEC and ANSI standards, and satisfied with diverse needs of customers.



  • Distribution Automation

Realize feeder automation, support current-based and voltage-based solutions of the sectionalizer, support loop automation and auto-changeover solutions of the recloser, and satisfy with demands of Fault Detection, Isolation and Restoration (FDIR).



  • Multiple protocols

Support IEC 60780-5-101/104,DNP3.0 and MODBUS standard protocols, supports protocol synchronization and B code time synchronization functions, and satisfy the needs of customers for “Tele- signal”, “Tele-measurement”, “Tele-control”, and “Tele-regulating ”.



  • Power Quality Analysis

Support power quality analysis, you can check the proportion of harmonic components of up to 16 analog quantity in real time, including current, voltage, active power, reactive power, apparent power, and up to 11 harmonics can be calculated to meet Customers’ high-quality electricity demands.



  • Waveform capture

Support record 10 fault records with a maximum of 10 seconds at the storage rate of 128 sampling points in each fundamental frequency period, and store up to 100 fault wave-forms to help customers comprehensively analyze the reason of the fault, tracing the rooting cause to solve the problem.
