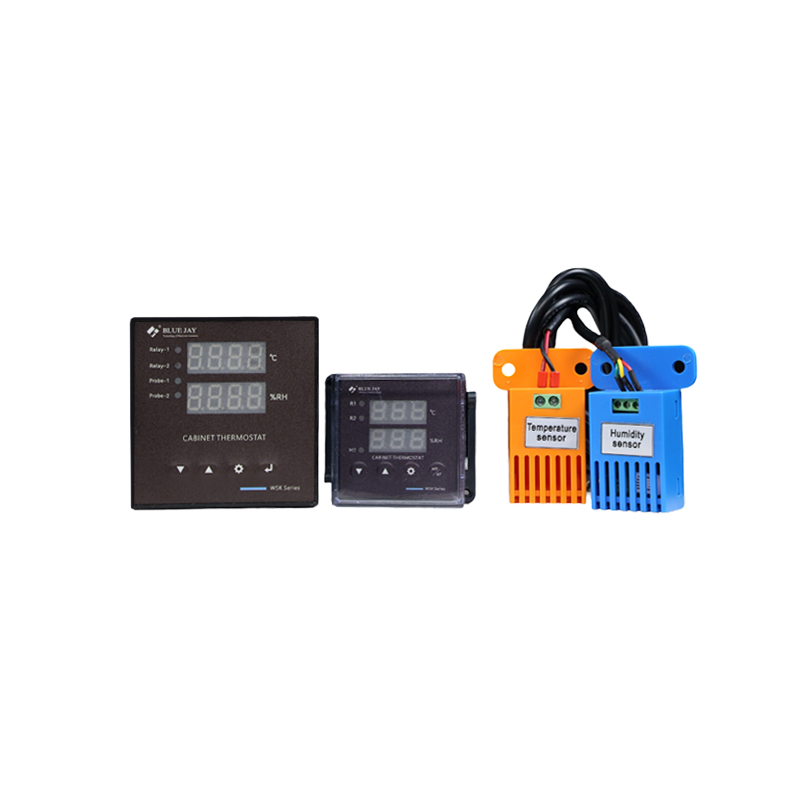

WSK series digital temperature and humidity controller is a measuring device for temperature and humidity control. This digital temperature humidity controller uses a complete FUZZY algorithm to provide precise temperature and humidity monitoring and controls fans or heaters to maintain sensible heat capacity and latent capacity. The humidity control module is integrated into the system, which greatly improves the applicability of the equipment, obtains the temperature and humidity changes from the sensor, and sends the measurement data to the electronic processor.
It adopts load control relay output, fast response, accurate PID parameter self-tuning, and supports Modbus communication protocol. It is suitable for various temperature and humidity control occasions and can be used in harsh environments for a long time. It is an ideal product to ensure the normal and efficient operation of power equipment and reduce costs., also suitable for temperature and humidity control needs in other places
WSK series digital temperature and humidity controller is a measuring device for temperature and humidity control. This digital temperature humidity controller uses a complete FUZZY algorithm to provide precise temperature and humidity monitoring and controls fans or heaters to maintain sensible heat capacity and latent capacity. The humidity control module is integrated into the system, which greatly improves the applicability of the equipment, obtains the temperature and humidity changes from the sensor, and sends the measurement data to the electronic processor.
It adopts load control relay output, fast response, accurate PID parameter self-tuning, and supports Modbus communication protocol. It is suitable for various temperature and humidity control occasions and can be used in harsh environments for a long time. It is an ideal product to ensure the normal and efficient operation of power equipment and reduce costs., also suitable for temperature and humidity control needs in other places
| Power Supply | 85V~265VAC/DC 50Hz Optional 24/48DC |
| Power consumption | <5VA |
| Input signal channel | Max 2 channels |
| Temperature sensor | NTC (-20~99℃) or customer request |
| Humidity sensor | Digital type (0~99%RH) or customer request |
| Sampling ratio | 400ms |
| Load control channel | Max 2 channels 250VAC, 5A (10A optional) |
| Communication Port (Optional) | RS485 (2/3 wires half duplex) Modbus RTU mode |
Recommended Selectable Model of WKS Series Electric Thermostat

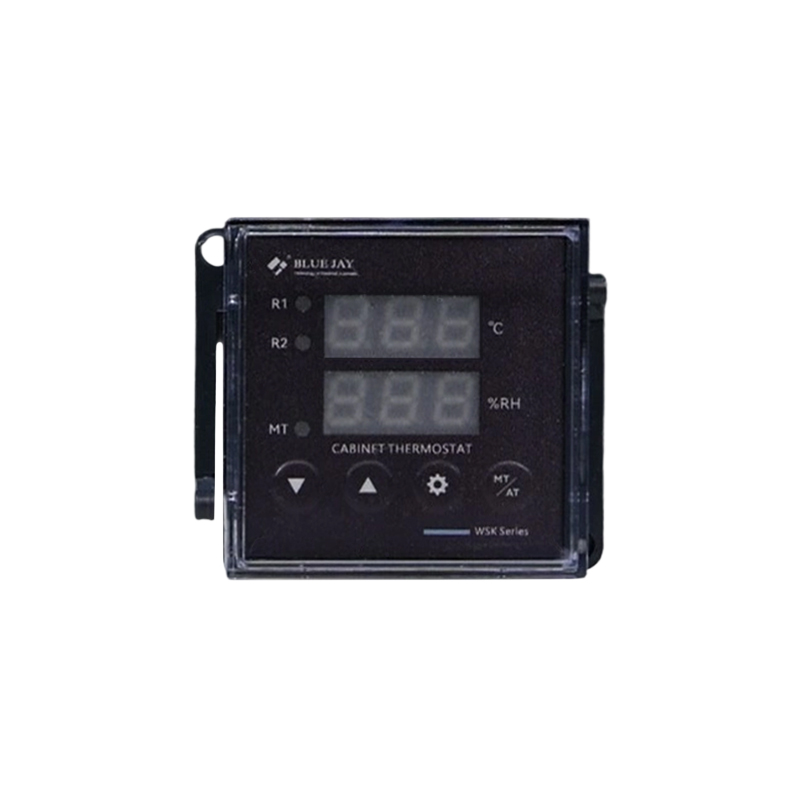

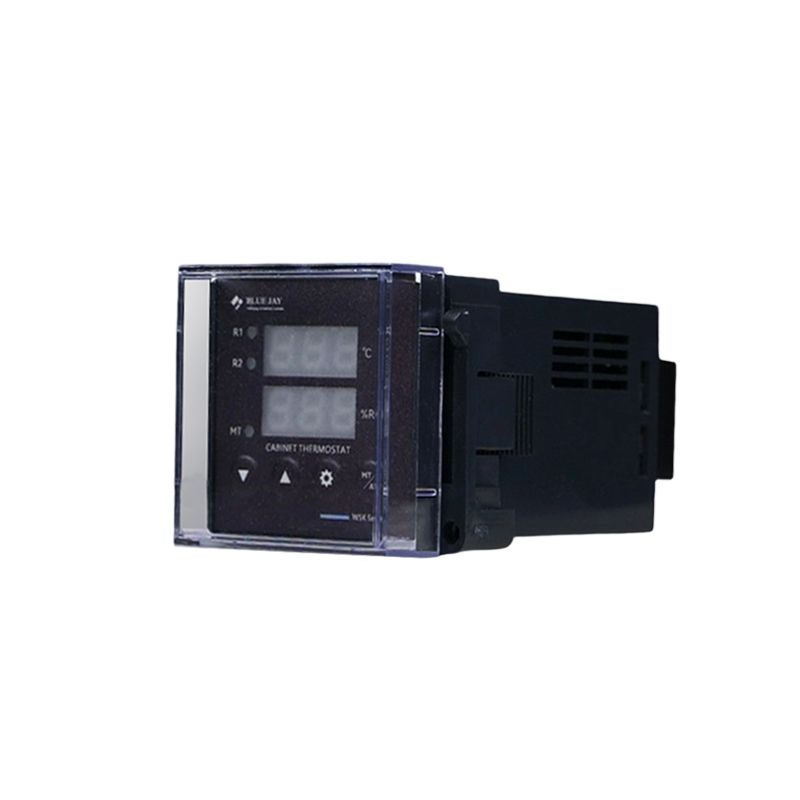

| WSK-W1K1 | Size:48*48*78mm One-channel temperature sensor One-channel output relay |
| WSK-S1K1 | Size:48*48*78mm One-channel humidity sensor One-channel output relay |
| WSK-W1K2 | Size:48*48*78mm One-channel temperature sensor Two-channels output relay |

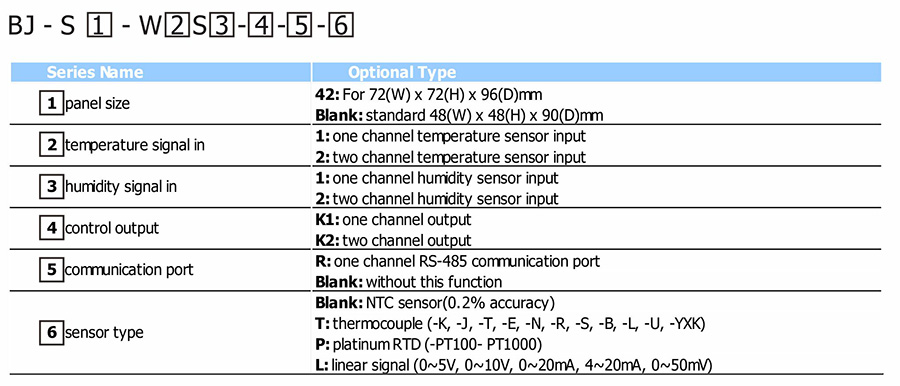

Available WSK Series Thermostat and Humidity Controller
| WSK-①-②③④-⑤⑥ | |
| Series Name | Optional Type |
| ①panel size | 72: For 72(W) x 72(H) x 96(D)mm |
| Blank: standard 48(W)x 48(H)x 90(D)mm | |
| ②temperature signal in | W1: one channel temperature sensor input |
| W2: two-channel temperature sensor input | |
| ③humidity signal in | S1: one channel humidity sensor input |
| S2: two-channel humidity sensor input | |
| ④control output | K1: one channel output relay |
| K2: two-channel output relay | |
| ⑤communication port | Blank:without this function |
| R: one channel RS-485 communication port | |
| ⑥sensor type | Blank: NTC sensor(0.2% accuracy) |
| T: thermocouple (-K, -],-T, -E, -N -R,-S, -B, -L, -U, -YXK) | |
| P: platinum RTD(-PT100- PT1000) | |
| L: linear signal(0~5V, 0~10V, 0~20mA, 4~20mA, 0~50mV) | |
