Data Center Power Metering & Energy Management
Power metering is the foundational engine of data center energy management. Achieving this requires strategically deploying high-precision, revenue-grade energy meters at every critical node—from the main utility inlet through the UPS, cooling systems, and PDUs, down to the IT server racks—to deliver comprehensive, end-to-end insights into energy usage, complete with real-time feedback on kW, kWh, and power quality. This continuous, granular data is the sole basis for accurate PUE calculation, enabling facilities to monitor efficiency, identify systemic losses (like UPS inefficiencies or overcooling), and ensure vital load balancing. Furthermore, energy meters at the utility and UPS levels support revenue-grade accuracy and compliance reporting, while branch and rack-level data drives precise energy cost allocation, performance tracking, and crucial capacity planning and load forecasting. Ultimately, data center metering provides the definitive visibility and quantification necessary to enforce closed-loop energy management, ensuring data centers operate at the intersection of peak efficiency and maximum reliability while achieving core sustainability goals.
Optimizing Data Center Energy Power Management with Power Meters
To make data center power & energy usage more efficient, energy meters are usually used in 13.8KV utility main switchgear, 13.8KV Generator paralleling switchgear or switching panel, 480V mechanical switchgear, 480V UPS Input switchgear, 480V UPS output switchgear, 480Vor 120VPower distribution panels, and UPS CRAH Panels.
Data Center Power Monitoring with Power Quality Meters
The main power inlet area of a data center facility precisely encompasses the high-voltage service transformers responsible for receiving and stepping down the voltage, the main switchgear (Mains SWGR) responsible for protection and initial distribution, and the generator parallel switchgear (PSG) or automatic transfer switch (ATS) and main power distribution unit (Main PDB) used to manage the switching and synchronization of primary and backup power supplies, which together constitute the power core of the facility.
Power meters deployed in this critical region of the data center must meet the industry’s most stringent performance specifications. These devices must deliver revenue-grade accuracy, offer comprehensive Power Quality analysis (Voltage sags, swells, transients, harmonic distortion, THD monitoring, etc.), support seamless integration via industry-standard protocols, and possess the capability for high-speed transient capture to log instantaneous data during events like motor start-up and critical grid switching or transfer operations.
Blue Jay’s APM-96Q is an industrial-grade AC multifunction energy meter specifically engineered for critical data center applications, including utility, main, and generator switchgear. Featuring integrated Power Quality (PQ) analysis, the meter’s high sampling rate is vital for accurately monitoring voltage and frequency synchronization status, which is essential for reliable transfer switch operations. Furthermore, the APM-96Q meets stringent IEC Class 0.2S or 0.5S accuracy standards and supports industry-standard protocols, such as Modbus TCP, for seamless integration into DCIM platforms.”
Data Center UPS Power Monitoring with Multifunction Meters
Installing energy meters on UPS input switchgear and UPS output switchgear is necessary for data center power energy management.
Installing meters at the UPS input switchgear is for real-time monitoring of the UPS input power, the actual current load drawn by the UPS from the upstream main distribution panel (Main PDB), and the AC power quality entering the UPS, including voltage fluctuations and harmonics, thereby enabling refined data center management. Installing meters at the UPS output switchgear is for accurately measuring the total critical load power leaving the UPS system and flowing to all downstream PDUs or RPPs, continuously monitoring the load current and power of the UPS output main bus or main feeder, and monitoring the AC power quality after UPS conditioning.
Blue Jay multi-function meter solutions

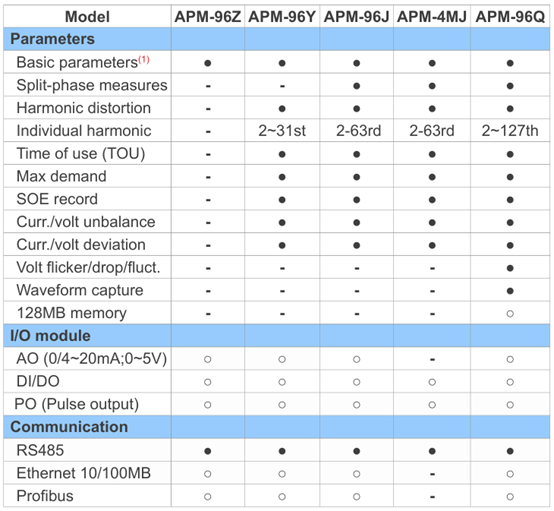

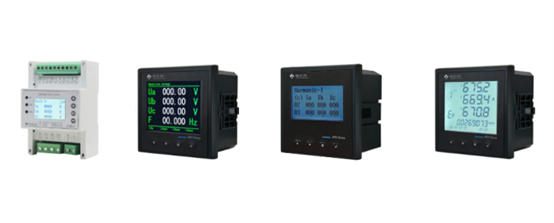

These switchgears need to be equipped with IEC class 0.5S or 1S AC multifunction meters or multifunction meters with basic PQ analysis capabilities. The Blue Jay APM series is recommended. The APM series meters support three-phase three-wire/four-wire systems and provide metering functions for voltage, current, power, frequency, power factor, and active/reactive power. They can also monitor power quality parameters such as harmonics (THD), voltage/current imbalance, and maximum demand. Equipped with RS-485 (Modbus-RTU) or Ethernet (Modbus-TCP) communication interfaces, they enable remote centralized monitoring and data logging, making them ideal for data center energy management requirements.
Data Center PDU & Feeder Power Metering with Multi-Circuit Submeters
Power Distribution Units (PDUs) and feeders serve as the intermediate backbone of the data center power distribution chain and are the core of capacity management. At this level, power is typically stepped down (e.g., from 480 V to 230/208 V) and allocated to different IT load zones. Accurate multi-circuit sub-metering at this stage enables refined capacity control, cost allocation, and infrastructure loss accounting.
Since these distribution boards supply multiple branch circuits distributed across racks and server rows, high-density and high-accuracy multi-circuit metering is required. By using a single multi-circuit meter paired with multiple CT inputs, dozens of branch circuits can be monitored simultaneously, substantially reducing installation space, wiring complexity, and overall costs.
Blue Jay Multi-Circuit Submeter Solutions

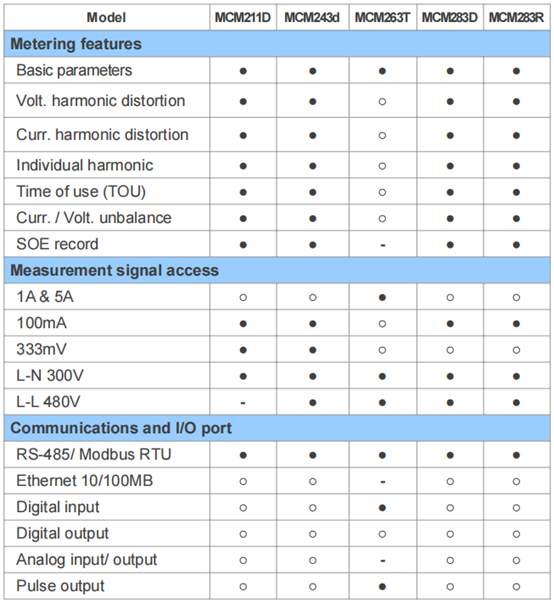

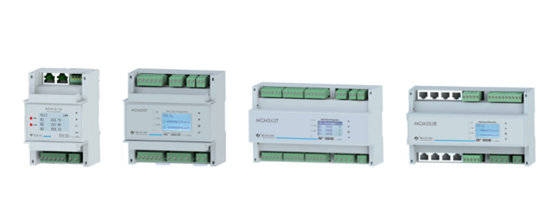

Blue Jay provides a wide portfolio of multi-channel energy meters — including 1-circuit, 3-circuit, 4-circuit, 6-circuit, 12-circuit, and 18-circuit models — to meet data-center sub-metering and energy-management needs. Advantages of Blue Jay multi-circuit submeters:
- 1 to 24 circuits configurable (supports both single-phase and three-phase)
- Class 0.5S high-accuracy active energy metering
- Power quality monitoring: THD, voltage/current unbalance, SOE event recording
- Flexible current signal access: 1A/5A CT, 100 mA, or 333 mV
- DIN-rail compact design for high-density feeder cabinets
- Industrial-grade safety: CAT III-300 V; withstand up to 4 kV
- Rich communication options: RS-485 (Modbus-RTU) and Ethernet TCP/IP
- Optional DI/DO/AI/AO expansion for alarm and control integration
These features make it ideal for PDU/RPP and rack-level multi-loop monitoring, supporting real-time phase load balancing analysis, branch energy consumption visualization, and capacity prediction, which helps improve data center power usage efficiency (PUE) and critical business continuity.
Data center power metering with DC energy meters
With the advancement of technology, more and more data center power distribution systems are integrating DC buses, such as between rectifiers, battery systems, and UPS internal inverters. DC buses are used to power IT loads via DC-compatible PDUs and also for renewable energy integration, with solar or battery energy flowing directly into the DC bus. In this scenario, specialized DC meters are needed to accurately monitor and quantify the energy flow on the DC bus. Depending on the measurement purpose, meters are typically installed on the rectifier/inverter bus, BESS, DC PDU feeder, renewable energy inlet, etc.

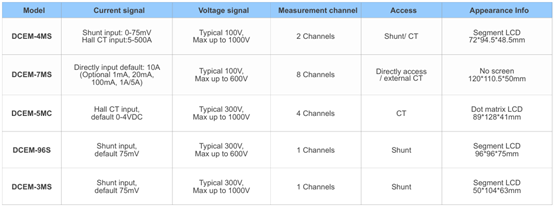

Blue Jay offers high-precision DC energy meters designed specifically for DC power measurement in data centers. Here is the feature and specification.
Key features
- Bidirectional energy measurement, supporting both charging and discharging flow monitoring
- Flexible current measurement via shunt or Hall-effect sensors
- Up to class 0.2 accuracy, ensuring precise DC power and energy analytics
- Suitable for DC bus monitoring across UPS, BESS, PV, and DC distribution systems
Conclusion
Whether it’s a standalone data center or an embedded data center, we can provide a range of high-precision electricity meters and monitoring solutions to help users optimize energy management, achieve accurate power usage insights, improve operational efficiency, and support sustainable, cost-effective data center operations.
