192P/192Q Active/Reactive Power Meter is an economic digital power meter that is a precise device for measuring the active power of the energy consumption system in real time. It can replace an analogical panel meter users can get clear information about which part needs to improve effective management and control of energy.

It is with the keyboard that can switch measurement range and protection of the parameters of programming by a password. 192P/192Q Active/Reactive Power Meter is ideal for reducing installation manpower and optimizing the used one space in the panel.

192P/192Q Active/Reactive Power Meter is an economic digital power meter that is a precise device for measuring the active power of the energy consumption system in real time. It can replace an analogical panel meter users can get clear information about which part needs to improve effective management and control of energy.

It is with the keyboard that can switch measurement range and protection of the parameters of programming by a password. 192P/192Q Active/Reactive Power Meter is ideal for reducing installation manpower and optimizing the used one space in the panel.

192P/192Q Active/Reactive Power Meter Features

  • Three phase 3P4W or 3P3W electric network monitor
  • Display 1/3 lines 4 digits and 1 decimal 0~9999 with one LED indicate unit Kilo/Million
  • Indipendent show each phase active power or reactive power
  • 96*96mm panel mounting size, optional 80*80mm, 72*72mm
  • Accept customer design

Specification

Power Supply AC / DC 80-265V, 45-65Hz
Burned < 4VA
Current Measurement AC: …/ 1A or …/5 A
Burned < 0.1W
Voltage Measurement Direct measurement 18~277V ac (L-N)
PT secondary …/100Vac
Burned < 0.1W
Frequency Measurement 45~65Hz
Resolution 0.01Hz
Accuracy U / I – 0.5%
P / Q – 0.5%
Communication Port (Optional) RS485 (2/3 wires half duplex)
Modbus RTU mode



Models

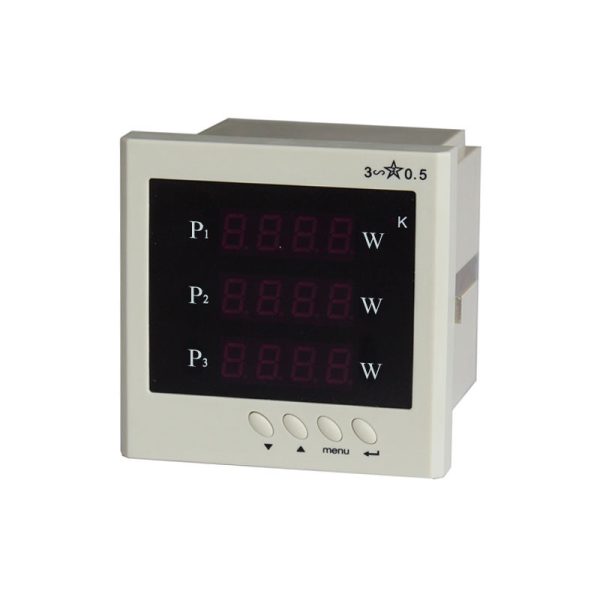

BJ-192P-9X4 Three phase active power meter
BJ-192Q-9X4 Three phase reactive power meter

Downloads

Brochure of Digital Panel Meter

BJ192 Power Meter Usermanual V1.4

BJ192 Current Meter Usermanual V1.4
