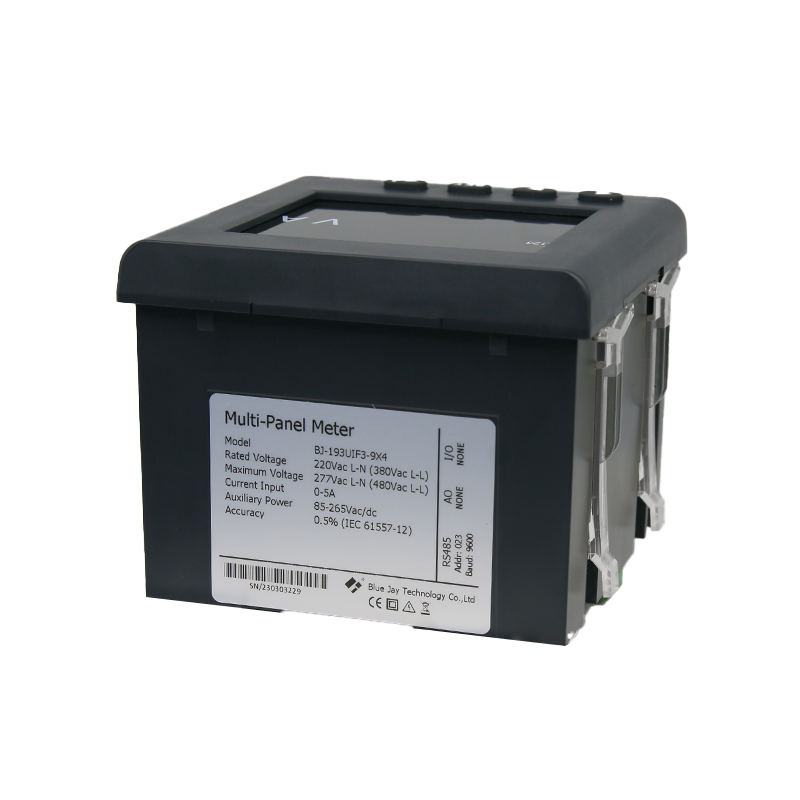

193UI Voltage & Current Combine Meter

193UI Voltage & Current Combine Meter

Especially developed for indication and supervision of the low-medium voltage three phase electrical network measurement also can be used in DC circuit. It can replaces other analogical panel meter reducing installation manpower and optimizing the used one of spaces in the panel.

Ideal for protection of single-phase networks is monitored and generally to own alarm superior and inferior. Protection of the parameters of programming by password.

Especially developed for indication and supervision of the low-medium voltage three phase electrical network measurement also can be used in DC circuit. It can replaces other analogical panel meter reducing installation manpower and optimizing the used one of spaces in the panel.

Ideal for protection of single-phase networks is monitored and generally to own alarm superior and inferior. Protection of the parameters of programming by password.

Features

  • Three phase or single phase electric network monitor
  • AC or DC loop detect
  • Display 1/3 lines 4 digits and 1 decimal 0~9999 with one LED indicate unit Kilo/Million
  • Combination show Voltage & Current & Frequency(AC) or Power(DC)
  • 96*96mm panel mounting size
  • Accept customer design

Specification

Power Supply AC / DC 80-265V, 45-65Hz
Burned < 4VA
Current Measurement AC: …/ 1A or …/5 A
DC: Current: 0-5V/4-20mA
Burned < 0.1W
Voltage Measurement Direct measurement 18~277V ac (L-N)
PT secondary …/100Vac
or 0-5V/4-20mA for DC
Burned < 0.1W
Frequency Measurement 45~65Hz
Resolution 0.01Hz
Accuracy U / I – 0.5%
Hz – 0.1%
Communication Port RS485 (2/3 wires half duplex)
Modbus RTU mode
Analog Outputs (Optional) 1 channel Isolated
0 / 4 … 20 mA
Alarms Outputs (Optional) 2 channel DO & 4 channel DI
230 VAC  5 A

Models

BJ-193I-9X1 Single phase ammeter
BJ-193U-9X1 Single phase voltmeter
BJ-193I-9X4 Three phase ammeter
BJ-193U-9X4 Three phase voltmeter
BJ-193UI-1 Single phase volt & amp meter
BJ-193UI-3 Three phase volt & amp meter

Accept customer design

Downloads

Brochure of Digital Panel Meter

BJ193 Universal Usermanual V2.2
