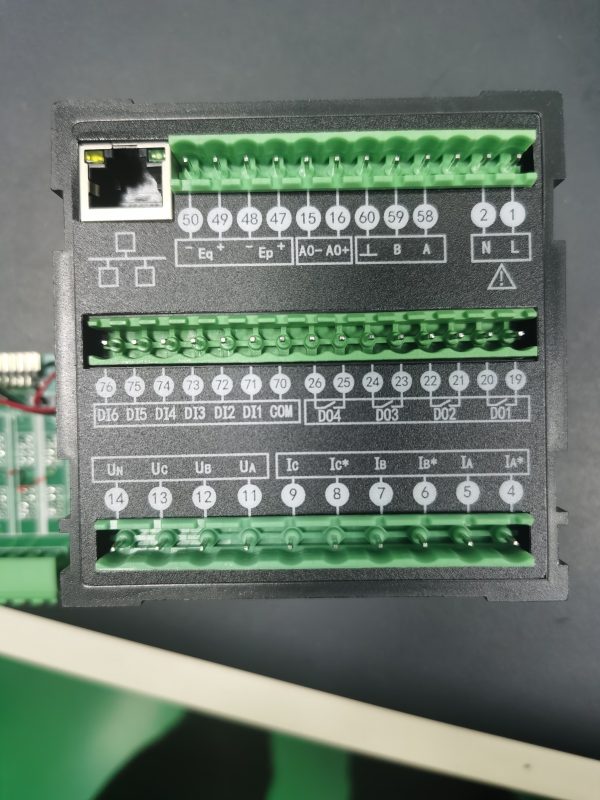

APM-96Y (194Y) Multifunction Panel Meter with Ethernet Port

APM-96Y (194Y) Multifunction Panel Meter with Ethernet Port

194Y Multifunction Panel Meter with Ethernet Port is a three-phase electrical network power quality detection device, it provides energy consumption and generation, THD (Total Harmonic Distortion), and Harmonic individual data reading. This 3-phase power monitor is the ideal choice for monitoring and controlling power distribution systems.

Its four direct access keys and LCD displays help you use all the parameters in 3P3W or 3P4W LV installation. 194Y Multifunction Power Meter has a built-in 4 tariffs energy logger function with onboard memory that can record the last three-month energy data free. You can set max 12-segment record period that can be used as a commercial billing unit.

194Y Multifunction Panel Meter with Ethernet Port is a three-phase electrical network power quality detection device, it provides energy consumption and generation, THD (Total Harmonic Distortion), and Harmonic individual data reading. This 3-phase power monitor is the ideal choice for monitoring and controlling power distribution systems.

Its four direct access keys and LCD displays help you use all the parameters in 3P3W or 3P4W LV installation. 194Y Multifunction Power Meter has a built-in 4 tariffs energy logger function with onboard memory that can record the last three-month energy data free. You can set max 12-segment record period that can be used as a commercial billing unit.

Features

  • Class 0.2 / 0.5 for basic power parameter.
  • Class 1.0 for active energy (KWH), reference IEC62053-21.
  • 96*96mm panel mounting size.
  • ITF Technology: galvanic insulation protection inputs outputs
  • Provide THD and 15th harmonic individual monitor.
  • Provide multi-tariffs energy data record.
  • Optional 2*AO port can instead electricity transmitter
  • Optional 2*DO port for remote control
  • Optional 4*DI port for collect signal from other equipment in site

Specifications

Power Supply AC / DC 80-265V, 45-65Hz
DC 20-60V (Optional)
Burned < 10VA
Current Measurement …/ 1A or …/5 A
Burned < 0.1W
Voltage Measurement Direct measurement 18~277V ac (L-N)
PT secondary …/100Vac
Burned < 0.1W
Frequency Measurement 45~65Hz
Resolution 0.01Hz
Accuracy U & I – 0.2% ;  P &Q – 0.5%
Frequency – 0.1%
Active Energy – 1.0s class
Reactive Energy – 2.0s class
Communication Port RS485 (2/3 wires half duplex)
Modbus RTU mode
Pulse Outputs 2-channel Coupler relay
Analog Outputs (Optional) 1 channel Isolated
0 / 4 … 20 mA
Alarms Outputs (Optional) 2 channel DO & 4 channel DI
230 VAC  5 A
