CBM3000 circuit breaker manager (CBM) is an integrated control relay, designed for 3KV to 35KV indoor switchgear, used to replace multiple components in LV compartments, and can reduce LV panel space occupation. It can be called a switchgear circuit breaker too.
On its panel, this switchgear breaker provides a primary circuit simulation diagram, switch indicator, VCB status & control switch, environment control, high voltage indicator, etc. The special sound prompt function can remind staff to operate the switchgear safely.
This switchgear circuit breaker can be used in various types of switchgear such as GZS (Centrally Installed Switchgear), Handcart Cabinet, Fixed Cabinets, Ring Main Units, etc.
CBM3000 circuit breaker manager (CBM) is an integrated control relay, designed for 3KV to 35KV indoor switchgear, used to replace multiple components in LV compartments, and can reduce LV panel space occupation. It can be called a switchgear circuit breaker too.
On its panel, this switchgear breaker provides a primary circuit simulation diagram, switch indicator, VCB status & control switch, environment control, high voltage indicator, etc. The special sound prompt function can remind staff to operate the switchgear safely.
This switchgear circuit breaker can be used in various types of switchgear such as GZS (Centrally Installed Switchgear), Handcart Cabinet, Fixed Cabinets, Ring Main Units, etc.

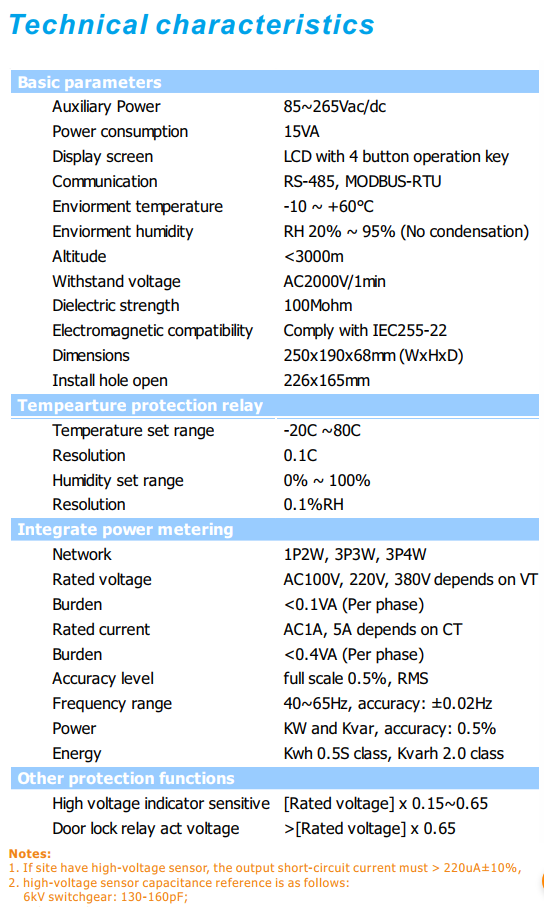

Technical Characteristics of CBM Circuit Breaker
| Basic Parameters of CBM3000 Circuit Breaker | |
| Auxiliary Power | 85~265Vac/dc |
| Power consumption | 15VA |
| Display screen | LCD with 4 button operation key |
| Communication | RS-485, MODBUS-RTU |
| Enviorment temperature | -10 ~ +60°C |
| Environment humidity | RH 20% ~ 95% (No condensation) |
| Altitude | <3000m |
| Withstand voltage | AC2000V/1min |
| Dielectric strength | 100Mohm |
| Electromagnetic compatibility | Comply with IEC255-22 |
| Dimensions | 250x190x68mm (WxHxD) |
| Install hole open | 226x165mm |
| Temperature Protection Relay | |
| Temperature set range | -20C ~80C |
| Resolution | 0.1C |
| Humidity set range | 0% ~ 100% |
| Resolution | 0.1%RH |
| Integrate Power Metering | |
| Network | 1P2W, 3P3W, 3P4W |
| Rated voltage | AC100V, 220V, 380V depend on VT |
| Burden | <0.1VA (Per phase) |
| Rated current | AC1A, 5A depends on CT |
| Burden | <0.4VA (Per phase) |
| Accuracy level | full scale 0.5%, RMS |
| Frequency range | 40~65Hz, accuracy: ±0.02Hz |
| Power | KW and Kvar, accuracy: 0.5% |
| Energy | Kwh 0.5S class, Kvarh 2.0 class |
| Other Protection Functions of CBM3000 Circuit Breaker | |
| High voltage indicator sensitive | [Rated voltage] x 0.15~0.65 |
| Door lock relay act voltage | >[Rated voltage] x 0.65 |
Notes:
1. If the site has a high-voltage sensor, the output short-circuit current must be> 220uA+10%.
2. High-voltage sensor capacitance reference is as follows: 6kV switchgear: 130-160pF.
