GYID Insulation Monitoring Device for Electric Vehicle

GYID Insulation Monitoring Device for Electric Vehicle

GYID is designed for insulation monitoring of the entire electric drive system of electric and hybrid vehicles. Whether it is used for insulation monitoring in commercial vehicles (trucks, buses, or industrial trucks) or in special vehicles (military, construction vehicles, cranes, etc,) this insulation monitoring device for electric vehicle is the ideal solution for manufacturers of electric and hybrid vehicles.

  • Supply voltage: 10-36V
  • Voltage measuring range: DC 100V -1000V
  • Measurement accuracy:0.5% – 1%
  • Response time for insulation resistance: 4-12S
  • Isolation withstand voltage: 3.5KV, 2.5KV
  • AKARM Response value: 1000 kΩ (Error), 500 kΩ (Warning)
  • Communication: CANbus Built-in CNBOOTLOADER
  • Insulation resistance measurement: 0 – 50 MΩ
  • Certification: IEC, CE and ROHS Certificated
Category:

GYID is designed for insulation monitoring of the entire electric drive system of electric and hybrid vehicles. Whether it is used for insulation monitoring in commercial vehicles (trucks, buses, or industrial trucks) or in special vehicles (military, construction vehicles, cranes, etc,) this insulation monitoring device for electric vehicle is the ideal solution for manufacturers of electric and hybrid vehicles.

  • Supply voltage: 10-36V
  • Voltage measuring range: DC 100V -1000V
  • Measurement accuracy:0.5% – 1%
  • Response time for insulation resistance: 4-12S
  • Isolation withstand voltage: 3.5KV, 2.5KV
  • AKARM Response value: 1000 kΩ (Error), 500 kΩ (Warning)
  • Communication: CANbus Built-in CNBOOTLOADER
  • Insulation resistance measurement: 0 – 50 MΩ
  • Certification: IEC, CE and ROHS Certificated
Category:

Overview

The GYID Insulation Monitoring Device for Electric Vehicle can real-time monitor Insulation resistance to the ground, insulation failure of measuring equipment shell to ground, and high voltage to the shell, etc.

GYID Electric Vehicle Insulation Monitor for ensuring EV safety



Types of GYID Insulation Monitoring Device for Electric Vehicle

Depending on the two types of insulation monitoring devices for electric vehicles, both DC and AC systems can easily monitor insulation resistance to the ground. Our insulation monitoring device for electric vehicles includes GYID-10D36CAx-x and GYID-10M36CAx-x.

GYID-10M36CAx-x Insulation Monitoring Device for Electric Vehicle measures the parallel value of the insulation resistance of the positive and negative poles of the output 0 ~1000 Vd.c. DC floating (IT) system to the ground. Or measure the insulation resistance to the ground of the entire 0 ~750 Va.c.AC floating system without distinguishing specific phase line insulation faults.

GYID-10M36CA insulation monitoring for AC DC system and GYID-10D36CA for AC system

GYID-10D36CAx-x Insulation Monitoring Device for Electric Vehicle measures the insulation resistance of the positive and negative poles of the output DC floating system to the ground respectively.



Electric Vehicle Insulation Monitoring: AC vs. DC Systems

In a DC system, the insulation resistance of the positive and negative poles of the DC system to the ground can be independently measured. Insulation resistance can also be reliably monitored in specific electric vehicle applications under strong interference or complex driving conditions, such as acceleration/deceleration, braking, and energy recovery.

In AC systems, it can suppress the interference of high-frequency harmonics of voltage and accurately measure the insulation resistance to the ground of the entire AC system.

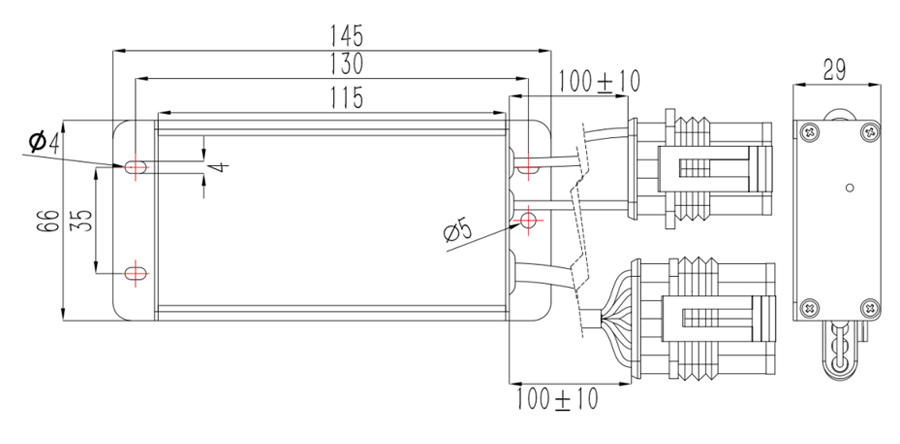

Dimension of GYID Insulation Monitoring Device for Electric Vehicle
Feature of GYID Insulation Monitoring Device for Electric Vehicle

  • DC system(IT system): monitor the ground insulation status of 0 ~ 1000 VDC DC floating system and accurately measure DC voltage.
  • AC system(IT system): monitors the ground insulation status of the entire 0~750 VAC AC floating system, cannot select lines (that is, does not distinguish the specific phase line insulation fault), and cannot measure AC voltage.
  • Measuring insulation resistance range: 0 ~ 50MΩ, when it exceeds 50MΩ, the default output is 50MΩ.
  • Automatically adapt to system Y capacitance CY (CY ≤4 μF).
  • CAN bus communication interface.
  • Built-in high-voltage relay can disconnect the physical connection between the insulation monitor’s terminal block (DC+/DC-) and the system under test.
  • Passive equipment: monitor the insulation status between the equipment and the casing or the equipment and the ground.
  • When the bus voltage is 0, the system’s insulation resistance to the ground can still be reliably monitored.
    Class B voltage ① (high voltage side) and Class A voltage (low voltage side) isolation withstand voltage 3500 Vd.c. / 2500 Va.c.(rms)
  • Monitor the insulation faults on the DC side, the AC side, and the motor side;
  • Simultaneously monitor the positive and negative asymmetric insulation faults and symmetrical insulation faults;
  • Measuring battery pack voltage
  • Monitor the internal insulation faults of the battery pack and locate the fault point;
  • Monitor in the case of a short circuit on the high-voltage DC side;
  • Reliably monitor insulation resistance in high-intensity interference, such as acceleration, deceleration, and energy recovery.



Application of GYID Insulation Monitoring Device for Electric Vehicle
The GYID series insulation monitor can be used for ground insulation monitoring in electric vehicle power battery high-voltage systems, hybrid vehicle high-voltage systems, hydrogen vehicle high-voltage systems, energy storage systems, other DC floating systems, AC floating systems, etc. Taking the application of the high-voltage system of electric vehicle power batteries as an example, its typical application is shown in Figure 1.

Typical applications of electric vehicles insulation monitoring device - the high-voltage system of electric vehicle power batteries
                                                                                                                             Figure 1

In electric vehicle power battery high-voltage systems, it is used for real-time monitoring of the insulation resistance between the high voltage components (0~1000Vdc) and the chassis (earth) of the power battery pack (pure electric or hybrid) power supply system.



Why Choose Blue Jay GYID Insulation Monitoring Relay?



Why choose our insulation monitoring device for EV cars

1. Various electric vehicle insulation monitoring available and compatible

Various electric vehicles such as cars, motor racing, commercial vehicles, and special vehicles can use our GYID insulation monitoring Relay. Besides, many electric vehicle brands are using our GYID insulation monitor such as Tesla electric and hybrid vehicles, Chevrolet electric and hybrid vehicles, Ford electric and hybrid vehicles, Toyota electric and hybrid vehicles, Hyundai electric and hybrid vehicles, Nissan electric cars, BMW hybrid vehicles, Mercedes-Benz hybrid vehicles.

2. OEM &ODM Service for your special needs

We have specialized in designing and manufacturing insulation monitoring devices for over 10 years. Just provide your needs such as logo design, and function design, and we can professionally design and manufacture your insulation monitoring device quickly.

3. High-Quality Guaranteed

We strictly select materials, inspect the manufacturing process, and check the product quality, to make our GYID meet the IEC, CE, and ROHS standards. The qualification rate of our insulation monitoring products can reach 99.9%.

Specifications

Parameter Condition Typical value
Insulation resistance
output mode
GYID-10D36CAx-x insulation monitor Bus voltage 20~1000 Vd.c. output RISO+ and RISO
Bus voltage 0 ~ 20 Vd.c. Compulsory RISO+ = RISO- = RISO
GYID-10M36CAx-x insulation monitor Bus voltage 0 ~ 1 000 Vd.c. output RISO
Bus voltage
measurement range
0 ~ 1 000 Vd.c.
Bus voltage
measurement accuracy
1%
Power supply range of
auxiliary power supply
9 ~ 36 Vd.c.
Input power ≤ 2W
Insulation resistance
measurement range
0 ~ 50 MΩ
Insulation resistance
measurement accuracy ①
0~ 100 kΩ, CY≤ 2μF, Bus voltage stability ±12 kΩ
100 kΩ~1 MΩ,CY≤ 2μF, Bus voltage stability ±10 %
1 MΩ~50 MΩ, CY =0μF, Bus voltage stability ±10 %
Insulation resistance
measurement response
time
RISO≥ 500 kΩ, CY =0μF, Bus voltage stability 4 s
RISO<500 kΩ, CY =0μF, Bus voltage stability 5 s
RISO=1 MΩ, CY =1μF, Bus voltage stability 8 s
RISO=1 MΩ, CY =2μF, Bus voltage stability 12 s
DC equivalent internal
resistance
Power on 10.2 MΩ
Amplitude of injection
pulse signal
±15 V
Injection pulse signal
frequency
 It is related to the size of Y capacitor
and insulation resistance
.
self-adaption
High to low voltage
withstanding voltage
3 500 Vd.c.
2 500 Va.c.(rms)
CAN to high voltage
withstanding voltage
3 500 Vd.c.
2 500 Va.c.(rms)
Working temperature -40 ℃ ~+ 85 ℃
Storage temperature -40 ℃ ~+ 85 ℃
Protection level IP55

CY is the system-to-ground Y capacitor

Selectable Model

Selectable models of GYID EV insulation monitoring device
This is the selectable models of GYID to help you choose our GYID clearly and easily.

Wiring

As for the GYID wiring diagram,  it is different in AC system and DC systems. Here are GYID wiring diagrams in the AC and DC systems.

Wiring diagram of Insulation Monitoring Device for Electric Vehicle in ac system
This is the wiring diagram of GYID in AC system.
wiring diagram of GYID insulation monitoring device for EV in dc system
This is the wiring diagram of GYID in the DC system.
