MCM2400 Multi Circuit Energy Meter is designed for commercial and residential power circuit sub-metering projects. This Multi-Circuit Energy Meter includes a 4-channel three-phase energy meter that is MCM2403 and a 12-channel single-phase energy meter that is MCM2401. Both of them have basic parameters, voltage harmonic distortion, current harmonic distortion measuring function, and 2*Digital outputs. The MCM2400 uses a 35mm standard din-rail installation and 6M width size, with a 1.6” dot matrix LCD interface so it can easily display all parameters on screen.
MCM2400 Multi Circuit Energy Meter is designed for commercial and residential power circuit sub-metering projects. This Multi-Circuit Energy Meter includes a 4-channel three-phase energy meter that is MCM2403 and a 12-channel single-phase energy meter that is MCM2401. Both of them have basic parameters, voltage harmonic distortion, current harmonic distortion measuring function, and 2*Digital outputs. The MCM2400 uses a 35mm standard din-rail installation and 6M width size, with a 1.6” dot matrix LCD interface so it can easily display all parameters on screen.
The MCM2400 multi circuit energy meter performs real-time metering, measures energy consumption, and multi-tariff time-of-use (TOU), and monitors the power quality of multi-channel feeder loops, with an RS485 port that can send out collected value to the remote host. The dimensions of MCM2400 are a length of 105 mm, a height of 104 mm, and a width of 61.75 mm.
It is ideal for multi-tenant or departmental metering applications within office towers, condominiums, apartment buildings, shopping centers, and other multi-user environments
Feature of MCM2400 Multi Circuit Energy Meter
4 channels three-phase or 12 channels single phase circuit metering
Measurement accuracy class 0.5
Current measuring 100mA or 333mV
1.6’’ dot matrix LCD screen
Universal series power supply (85-265VAC/DC)
Provide 5 virtual alarm trigger
With RS-485 Modbus/RTU Communications
With harmonic analysis
With SPDT relay output for alarm output
Accept customization design
Specifications
Power Supply
AC / DC 80-265V, 45-65Hz
Burned < 6VA
Current Measurement
…/ 100mA or …/ 333mV
Burned < 0.1W
Voltage Measurement
Direct measurement 30~450V ac (L-L)
Burned < 0.1W
Frequency Measurement
45~65Hz
Accuracy
U / I / P / Q – 0.5% (Optional 0.2%)
Frequency – 0.1%
Active Energy – 1.0 class
Reactive Energy – 2.0 class
Communication Port
RS485 (2/3 wires half duplex)
Modbus RTU mode
Typical Wiring
Three Phase Circuit
Single Phase Circuit

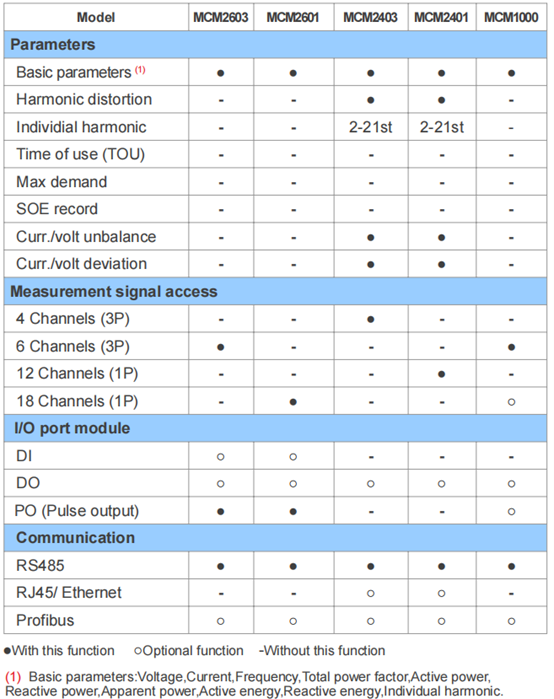

Selectable Models
MCM2603
MCM2601
MCM2403
MCM2401
MCM1000
MCM400
METERING FEATURES
Voltage (P-P, P-N)
●
●
●
●
●
●
Current (P-N)
●
●
●
●
●
●
Frequency
●
●
●
●
●
●
Total Power Factor
●
●
●
●
●
●
Active power
●
●
●
●
●
●
Reactive power
●
●
●
●
●
●
Apparent power
●
●
●
●
●
●
Active energy consumed
●
●
●
●
●
●
Active energy generated
●
●
●
●
●
●
Reactive energy consumed
●
●
●
●
●
●
Reactive energy generated
●
●
●
●
●
●
Voltage harmonic distortion (THD)
○
○
●
●
–
●
Current harmonic distortion (THD)
○
○
●
●
–
●
Individial harmonic (1)
○
○
●
●
–
●
Time of Use (TOU)
○
○
–
–
–
–
Current / Voltage unbalance
○
○
○
○
–
○
Max Demand
○
○
○
○
–
○
Voltage deviation
○
○
○
○
–
○
Sequncy of Event record (SOE)
○
○
–
–
–
–
MEASUREMENT SIGNAL ACCESS
1A & 5A
●
○
–
–
●
–
100mA
○
●
●
●
–
●
333mV
○
○
○
○
–
○
L-L 480V, three phase
●
–
●
–
●
●
L-N 300V, single phase
–
●
–
●
○
○
4 metering channels (3P)
–
–
●
–
–
●
6 metering channels (3P)
●
–
–
–
●
–
12 metering channels (1P2W)
–
–
–
●
–
○
18 metering channels (1P2W)
–
●
–
–
○
–
HUMAN-MACHINE INTERFACE
72*72 external display unit
–
–
–
–
●
–
On board 1.6” dot matrix LCD
●
●
●
●
–
●
COMMUNICATIONS AND I/O PORT
RS-485
●
●
●
●
●
●
Ethernet 10/100MB
–
–
○
○
–
–
Modbus RTU
●
●
●
●
●
●
Profubus
○
○
○
○
○
○
6*Digital inputs
○
○
–
–
○
–
2*Digital outputs (2)
○
○
●
●
○
–

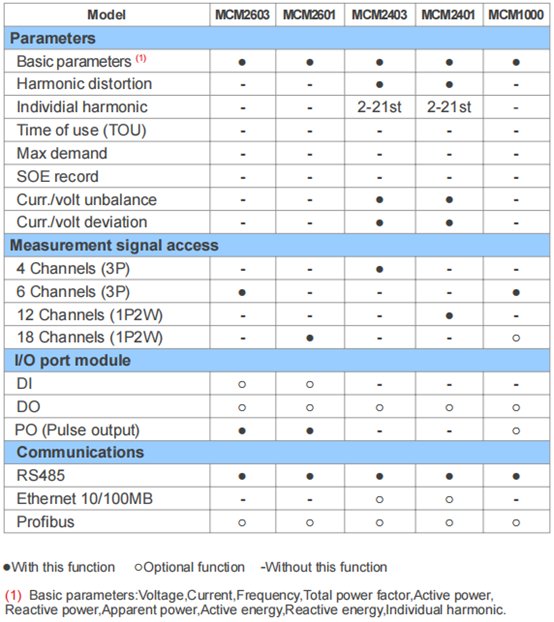

● With this function ○ Optional function — Without this function
(1) MCM2603/2601 multi channel energy meter detect 2~31 , MCM2403/2401 detect 2~15. (2) MCM2603/2601 and MCM1000 sub-meter is a signal logic alarm output, 2 relays independent of logic and hardware; MCM2403/2401 with 5 virtual alarms and SPDT relays.
Other notes:
Max Demand value default calculated by 15min Sliding window method, if need Block Interval please tell us before order. Choose Ethernet port protocol default use MODBUS-TCP.
