MCM2600 Multi Channel Energy Meter

MCM2600 Multi Channel Energy Meter
MCM2600 Multi Channel Energy Meter
MCM2600 Multi Channel Energy Meter
MCM2600 Multi Channel Energy Meter
MCM2600 multi-channel energy meter

MCM2600 Multi Channel Energy Meter

MCM2600 Multi Channel Energy Meter be designed for Industrial or commercial circuits sub-metering projects. This multi channel energy meter support 6 channels 3P4W/3P3W three-phase (MCM2603) or 18 channels 1P2W single-phase (MCM2601) branch circuit electrical parameter collection.

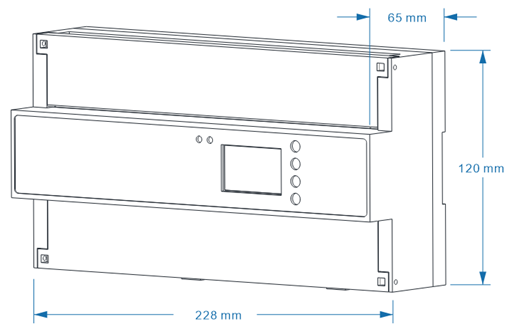

The MCM2600 multi channel energy monitor adopts standard din-rail install. The size of this din rail energy meter is 13M width with a 1.6” dot matrix LCD interface so it can easily display all parameters on screen. 0.5class high-precision performance and can instead of multiple digital energy meters. Moreover, the MCM2600 Multi Channel Energy Meter can reduce equipment investment in electrical metering projects, improve equipment reliability and reduce maintenance costs.

Category:
Contact Us
MCM2600 Multi Channel Energy Meter
MCM2600 Multi Channel Energy Meter
MCM2600 Multi Channel Energy Meter
MCM2600 Multi Channel Energy Meter
MCM2600 multi-channel energy meter

MCM2600 Multi Channel Energy Meter be designed for Industrial or commercial circuits sub-metering projects. This multi channel energy meter support 6 channels 3P4W/3P3W three-phase (MCM2603) or 18 channels 1P2W single-phase (MCM2601) branch circuit electrical parameter collection.

The MCM2600 multi channel energy monitor adopts standard din-rail install. The size of this din rail energy meter is 13M width with a 1.6” dot matrix LCD interface so it can easily display all parameters on screen. 0.5class high-precision performance and can instead of multiple digital energy meters. Moreover, the MCM2600 Multi Channel Energy Meter can reduce equipment investment in electrical metering projects, improve equipment reliability and reduce maintenance costs.

Category:

MCM2600 Multi Channel Energy Meter Features

  • 6 channels three phase or 18 channels single phase circuit metering
  • Measurement accuracy class 0.5
  • Current measuring …/5 or …/1 A
  • 1.6’’ dot matrix LCD screen
  • Universal series power supply (85-265VAC/DC)
  • With RS-485 Modbus/RTU Communications
  • Optional 6 channels Digital Input (DI) and 2 channels Digital Output (DO)
  • Optional advanced electrical parameter
  • Optional record and read multi- tariffs ratio, Up to 3 months (TOU record)
  • Optional max 99 lists SOE record
  • Accept customization design

Specifications

Power Supply AC / DC 80-265V, 45-65Hz
Burned < 10VA
Current Measurement …/ 1A or …/5 A
Burned < 0.1W
Voltage Measurement Direct measurement 30~450V ac (L-L)
PT secondary …/100Vac
Burned < 0.1W
Frequency Measurement 45~65Hz
Accuracy U / I / P / Q – 0.5% (Optional 0.2%)
Frequency – 0.1%
Active Energy – 1.0s class
Reactive Energy – 2.0s class
Communication Port RS485 (2/3 wires half duplex)
Modbus RTU mode
Alarms Outputs (Optional) 2 channel DO & 6 channel DI
230 VAC  5 A



Typical wiring

Three Phase Circuit



Single Phase Circuit

Selectable Models

MCM2603 MCM2601 MCM2403 MCM2401 MCM1000 MCM400
METERING FEATURES
Voltage (P-P, P-N) ● ● ● ● ● ●
Current (P-N) ● ● ● ● ● ●
Frequency ● ● ● ● ● ●
Total Power factor ● ● ● ● ● ●
Active power ● ● ● ● ● ●
Reactive power ● ● ● ● ● ●
Apparent power ● ● ● ● ● ●
Active energy consumed ● ● ● ● ● ●
Active energy generated ● ● ● ● ● ●
Reactive energy consumed ● ● ● ● ● ●
Reactive energy generated ● ● ● ● ● ●
Voltage harmonic distortion (THD) ○ ○ ● ● – ●
Current harmonic distortion (THD) ○ ○ ● ● – ●
Individial harmonic (1) ○ ○ ● ● – ●
Time of Use (TOU) ○ ○ – – – –
Current / Voltage unbalance ○ ○ ○ ○ – ○
Max Demand ○ ○ ○ ○ – ○
Voltage deviation ○ ○ ○ ○ – ○
Sequence of Event record (SOE) ○ ○ – – – –
MEASUREMENT SIGNAL ACCESS
1A & 5A ● ○ – – ● –
100mA ○ ● ● ● – ●
333mV ○ ○ ○ ○ – ○
L-L 480V, three phase ● – ● – ● ●
L-N 300V, single phase – ● – ● ○ ○
4 metering channels (3P) – – ● – – ●
6 metering channels (3P) ● – – – ● –
12 metering channels (1P2W) – – – ● – ○
18 metering channels (1P2W) – ● – – ○ –
HUMAN-MACHINE INTERFACE
72*72 external display unit – – – – ● –
On board 1.6” dot matrix LCD ● ● ● ● – ●
COMMUNICATIONS AND I/O PORT
RS-485 ● ● ● ● ● ●
Ethernet 10/100MB – – ○ ○ – –
Modbus RTU ● ● ● ● ● ●
Profubus ○ ○ ○ ○ ○ ○
6*Digital inputs ○ ○ – – ○ –
2*Digital outputs (2) ○ ○ ● ● ○ –

● With this function                                                     ○ Optional function                                                                — Without this function

(1) MCM2603/2601 multi channel energy meter detect 2~31 , MCM2403/2401 detect 2~15.
(2) MCM2603/2601 and MCM1000  sub meter is a signal logic alarm output, 2 relays independent of logic and hardware; MCM2403/2401 with 5 virtual alarms and SPDT relays.

Other notes on multi channel energy monitor:
Max Demand value default calculated by 15min Sliding window method, if need Block Interval please tell us before order. Choose Ethernet port protocol default use MODBUS-TCP.

Downloads

Brochure of Multi-channel Energy Meter

MCM2600 Multichannel energy meter-User manual -V1.36
