W3000 wireless temperature monitor can help medium-low voltage switchgear operators and maintenance engineers, to reduce safety risks from sudden temperature increases in switchgear components. It provide 7*24 hours switchgear monitor for critical busbar joints.

Multiple styles of remote sensors node can deal with different electrical contacts, W3000 support max 32 monitoring node for single switchgear. Panel mount HMI unit have acousto-optic alarm and DO port, user can free to build various automatic alarm / control system. Equipped RM485 port can connect existing SCADA system for remote sensering control.

It can protects your electrical assets from costly outages; while increasing safety via remotely monitoring equipment. This also increases asset integrity, and minimizes downtime.

W3000 wireless temperature monitor can help medium-low voltage switchgear operators and maintenance engineers, to reduce safety risks from sudden temperature increases in switchgear components. It provide 7*24 hours switchgear monitor for critical busbar joints.

Multiple styles of remote sensors node can deal with different electrical contacts, W3000 support max 32 monitoring node for single switchgear. Panel mount HMI unit have acousto-optic alarm and DO port, user can free to build various automatic alarm / control system. Equipped RM485 port can connect existing SCADA system for remote sensering control.

It can protects your electrical assets from costly outages; while increasing safety via remotely monitoring equipment. This also increases asset integrity, and minimizes downtime.

Features

  • Real time data 24*7 / 365 Days monitor LV switchgear incomers and feeder, line and load side.
  • Quick and easy installation.
  • Suitable for retrofits and new installations.
  • Two-level alarm parameter setting. provide 2*DO NC & NO contact for external alarm trig.
  • Permanently installed sensors, zero maintenance thanks to battery-free design.
  • Optional battery inside temperature probe.
  • RS 485 MODBUS-RTU easy integration into existing SCADA systems.

Specification

Power Supply AC / DC 80-270V, 45-65Hz
DC 20-60V (Optional)
Maximum power consumption 6W
Wireless Remote Sensing Unit Standard type 3-12*
Temperature monitor range From 0°C ~ 99 °C
Wireless communication frequency 433MHZ / 460Mhz / 869Mhz
Transmit power Less than 20mW
Distance of the receiver and monitor Up to 80m (260 foot)
Battery life 3-5 years (Every fifteen minutes to send a data)
Working environment Temperature: -20℃~ +125℃
Humidity: RH 20%~95%(No condensation)
Protection Panel: IP40
Storage Conditions Temperature: -25℃~+60℃
Humidity: RH 20%~95%

Typical Install

Selectable Models

W3000-3S 3*Temperature probe, 1*HMI
W3000-6S 6*Temperature probe, 1*HMI
W3000-9S 9*Temperature probe, 1*HMI
W3000-12S 12*Temperature probe, 1*HMI

If need multiple probe in one site, there provide Turnkey Solutions, please contact our sales staff for more details.

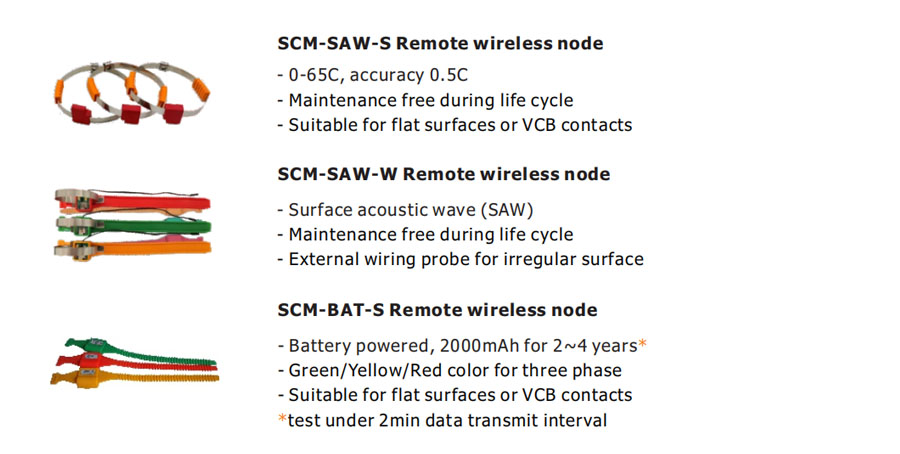

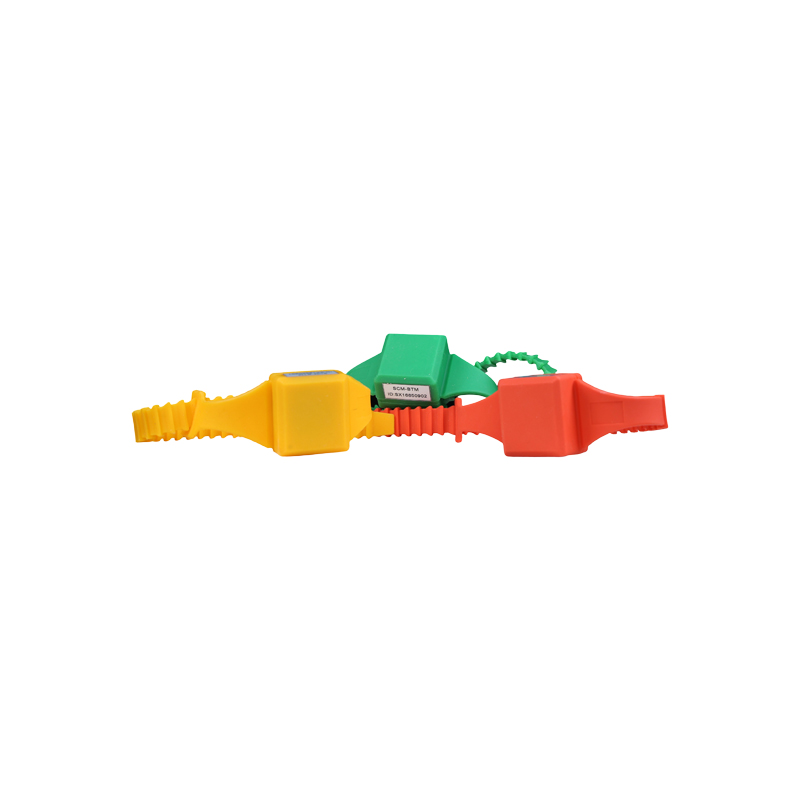

Valid probe stype and specifications:

Downloads

Brochure of Switchgear Condition Monitor
