What is alarm annunciator
An alarm annunciator is an industrial monitoring device used to display, record, and alert operators about abnormal conditions or faults in electrical, mechanical, or process systems. It receives input signals from sensors, switches, or protection devices, and provides visual and audible indications to quickly identify the location and nature of the fault.
Alarm annunciator working principle
The working principle of an alarm annunciator is based on real-time acquisition of operational status signals from field equipment, logical evaluation, and audiovisual output. Its input terminals typically receive dry contact or wet contact signals from sensors, switches, or protection devices. These signals are processed through isolation and filtering, then fed into the internal logic circuit or microprocessor for status identification.
When an abnormal condition or limit violation is detected, the system immediately activates the corresponding channel’s indicator (such as high-brightness LEDs) to provide a visual alert, while simultaneously triggering the built-in buzzer or an external audible/visual alarm device. The annunciator supports “Reset/mute” functions, allowing operators to mute the audible alarm while retaining the visual indication. Once the fault is cleared, the system can be reset to normal.
Fault Alarm Annunciator function
An alarm annunciator serves as a centralized monitoring and alarm unit, providing operators with clear, organized, and actionable fault indications. Its core functions include:
Real-Time Fault Indication
Continuously monitors multiple input points and immediately identifies abnormal conditions, displaying them on dedicated visual indicators for each channel.
Ensures that operators can pinpoint the exact location and nature of the fault without scanning through complex HMI screens.
Visual Alarm Indication and Audible Alarm Output
Uses high-brightness LEDs to represent the status of each channel, with distinct colors (e.g., red for alarm, yellow for pre-alarm, green for normal) for intuitive status recognition. Maintains the visual indication until the fault is cleared and the annunciator is manually reset.
Activates an internal buzzer or external horn to ensure alarms are noticed in noisy industrial environments. Supports adjustable sound levels or external siren control for site-specific requirements.
Alarm Acknowledge & Mute
Allows operators to acknowledge an alarm, which mute the audible output while keeping the visual alert active for ongoing fault awareness.
Prevents noise while ensuring the issue remains visible until resolved.
Reset Function
Restores normal display and clears alarm indicators once the abnormal condition is resolved and the operator manually initiates a reset. Can be configured for manual or automatic reset modes depending on application requirements.
Fault Alarm Annunciator Types
Blue Jay can provide 4 channel, 6 channel, 8 channel, 10 channel, 13 channel, and 16 channel alarm fault annunciators with OEM & ODM service.
4-Channel Annunciator
- Suitable for small machinery or compact control panels.
- Provides essential fault monitoring in limited space.
6-Channel Annunciator
- Ideal for local panels or small pump stations.
- Offers additional monitoring points while maintaining compact size.
8-Channel Annunciator
- Fits medium-sized distribution boards or generator panels.
- Balances channel capacity and panel footprint for moderate monitoring needs.
10-Channel Annunciator
- Designed for medium-to-large control systems.
- Provides extra monitoring points without requiring significantly larger panels.
12-Channel Annunciator
- Designed for larger switchgear or industrial systems.
- Supports expanded monitoring without excessive space requirements.

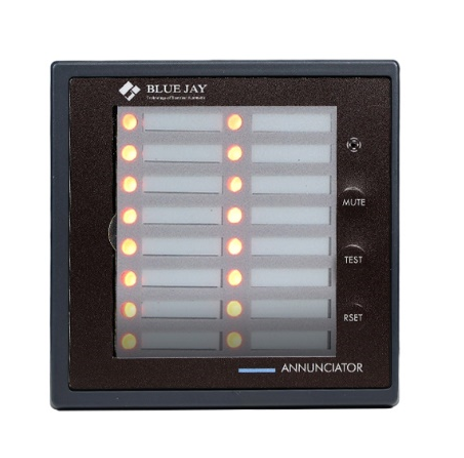

16-Channel Annunciator
- Best for substations, turbine control, or large-scale industrial processes.
- Enables simultaneous monitoring of multiple points with modular expandability.
Alarm Annunciator panel application
Our alarm annunciators are widely used in power generation, substations, industrial automation, oil & gas, water treatment, and other process control systems where prompt fault identification is critical for operational safety and efficiency.
Power Generation and Distribution
Monitors transformers, circuit breakers, and protection relays in substations and power plants.
Example: A 16-channel annunciator displays multiple feeder and transformer faults, allowing operators to act immediately.
Industrial Automation and Manufacturing
Supervises motors, pumps, and critical process parameters such as temperature and pressure.
Example: An 8-channel annunciator in a chemical plant alerts operators to pump failures or overpressure conditions, preventing downtime.
Water and Wastewater Treatment
Tracks pump status, tank levels, and flow sensors for reliable water supply and treatment.
Example: A 10-channel annunciator in a water treatment facility signals low tank levels or pump malfunctions for timely intervention.
Marine and Offshore Systems
Monitors engine rooms, bilge levels, and safety systems on ships and offshore platforms.
Example: A 12-channel annunciator displays alarms for engine room temperature, bilge water, and fire detection systems, ensuring fast response to hazards.
Conclusion
An alarm annunciator is a vital monitoring device that provides real-time fault detection with visual and audible alerts. It converts input signals from sensors or protection devices into clear indications, helping operators quickly identify and respond to abnormal conditions. Bluejay supply 4–16 channel configurations, annunciators are applied in power generation, industrial automation, water treatment, and marine/offshore systems etc., enhancing safety and operational efficiency.
