What’s the difference between double pole and single pole thermostat
Single pole and double pole thermostats are essential temperature control components widely applied in electrical enclosures to maintain optimal internal conditions for electronic and power distribution systems. Their structural difference lies in the number of switching poles used to control connected circuits, directly affecting system safety, isolation capacity, and control versatility.
What is a single pole thermostat for electrical enclosure

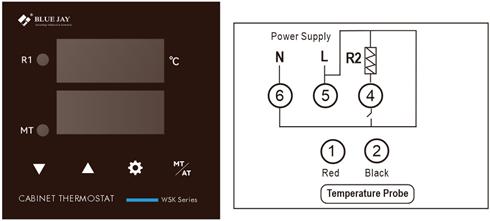

A single pole thermostat for electrical enclosures is equipped with one switching contact that controls the live (L) wire, while the neutral (N) remains connected. It switches heating or cooling devices on or off according to a preset temperature setpoint. Available in mechanical and digital versions, it offers simple installation, reliable operation, and cost-effective temperature management for enclosures.
What is a double pole thermostat for electrical enclosure？

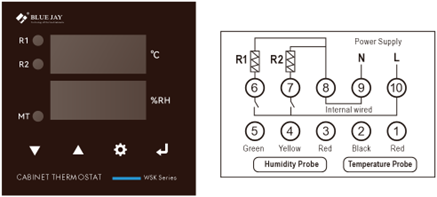

A double pole thermostat features two switching contacts, controlling both the live (L) and neutral (N) wires simultaneously. This provides full electrical isolation when the contact is open, enhancing operational safety. Certain models combine temperature and humidity control — one contact for temperature, one for humidity — referred to as “one temperature one humidity” thermostats, widely used in control panels and industrial cabinets.

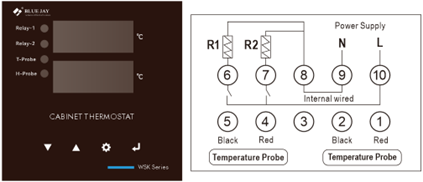

A dual-channel (double temperature) thermostat controls two independent temperature control channels within a single device. Each channel can be individually configured with separate sensors, setpoints, and output contacts, enabling simultaneous management of two separate heating or cooling circuits. This type is ideal for enclosures requiring multi-point temperature regulation, such as managing both heater and fan systems or controlling different compartments within a cabinet.
What's the difference between double pole and single pole thermostat?
Parameter | Single Pole Thermostat | Double Pole Thermostat |
Number of Switching Contacts | 1 (controls only the Live (L) wire) | 2 (controls both Live (L) and Neutral (N) wires) |
Disconnection Type | Partial disconnection (Neutral always connected) | Full electrical isolation of both conductors |
Safety Level | Standard | Enhanced safety with complete circuit isolation |
Typical Applications | Basic temperature control in enclosures | Industrial enclosures requiring complete isolation or combined control (temperature + humidity) |
Control Function | Temperature only | Temperature only or dual-function (e.g., temperature + humidity) |
Wiring Complexity | Simple | More complex (two-pole wiring) |
Available Versions | Mechanical and Digital | Mechanical and Digital |
Installation Cost | Lower | Higher due to additional safety and control functions |
Conclusion
When selecting an electrical enclosure thermostat, understanding the difference between single pole and double pole designs is essential for ensuring operational safety and control efficiency. Single pole thermostats provide a simple, cost-effective solution for basic temperature control where partial disconnection is acceptable. In contrast, double pole thermostats offer full electrical isolation and greater safety, making them ideal for industrial environments and applications requiring dual-function control such as temperature and humidity management. The appropriate choice should be based on the specific safety requirements, control functions, and operational conditions of the enclosure system.
