What is Arc Flash Protection System
An Arc Flash Protection System is a high-speed integrated safety solution designed to mitigate the devastating effects of internal arc faults. While specific configurations vary by manufacturer, a standard system comprises three core components:
Arc Flash Relays: The central processing unit that analyzes input signals and issues ultra-fast trip commands to circuit breakers.
Arc Flash Sensors: Optical detectors (either point sensors or fiber-optic cables) that monitor switchgear compartments for the intense light flash associated with an arc event.
Current Transformers (CTs): Devices that monitor for a simultaneous surge in current, providing a secondary check to prevent nuisance tripping from non-fault light sources.
Depending on the manufacturer and the specific application (such as Medium Voltage or High Voltage switchgear), these systems may also include specialized accessories like high-speed quenching devices or remote monitoring interfaces to enhance overall facility safety.
Blue Jay Arc Flash Protection System components
Blue Jay have two types of arc protection system. The basic Blue Jay arc flash protection system consists of an arc flash relays, arc flash sensors, current transformer. The comprehensive arc fault protection system is based on the basic types with temperature sensors and smoke sensors, which is the combination of arc flash protection and enclosure condition monitoring. Let us learn more about Blue Jay Technology arc protection system components in the following:
One Arc Flash Relay: It is the core unit of the system, used for comprehensive judgment of arc flash fault signals.

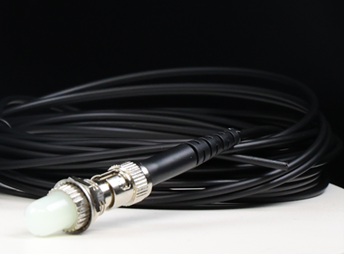

Multiple Arc Flash Sensors: There are fiber optic or point-type arc flash sensors to quickly detect the high-intensity light signals generated by arc flash.

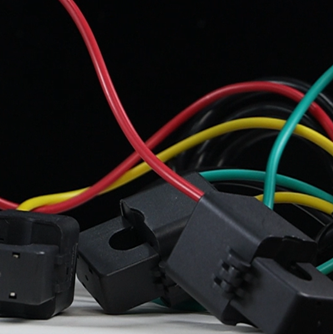

One set（A,B,C phase）Current Transformer (CT): There are three current transformers for separate ABC Phase. They are used to detect fault current and logically coordinates with the arc flash signal (Light + Current) to improve the reliability of arc flash fault judgment.

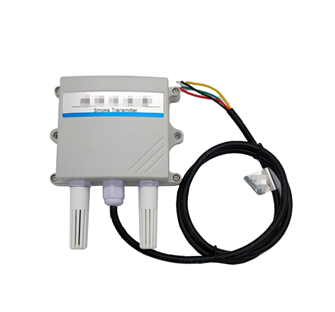

One unit Smoke Sensor: This smoke sensor is optional. It is used to supplement the monitoring of smoke phenomena caused by abnormal arcing or insulation degradation.

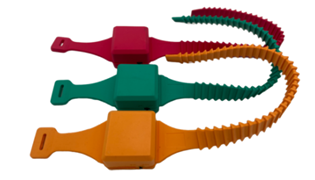

One set（A,B,C phase）wireless temperature Sensor: There are 3 -12 wireless temperature sensors that are used to monitor the temperature rise inside the cabinet, serving as an auxiliary signal for early fault or operational status assessment.

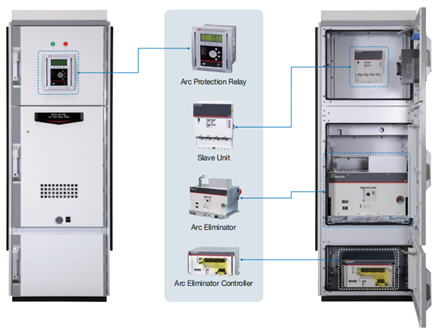

LS arc protection system components
LS arc protection system consists of arc flash relays, arc protection module, arc eliminator, and arc flash relay accessories including arc light sensor, STP cable, optical cable.
One LS Arc protection relay: It can quickly determine accidents using optical signal and current siginal.
One Arc protection module: It is an expansion unit for signal acquisition and system coordination with the main relay.
Arc Eliminator Controller: It is used to receive arc protection relay commands via optical communication and delivers drive current output within 0.6 ± 0.1 ms.
Arc Eliminator: It Extinguishes the arc by grounding and short-circuiting the three-phase system.
Arcteq arc protection system
The Arcteq arc protection system consist of an arc protection relay, multiple arc flash sensors, and an arc quenching device.

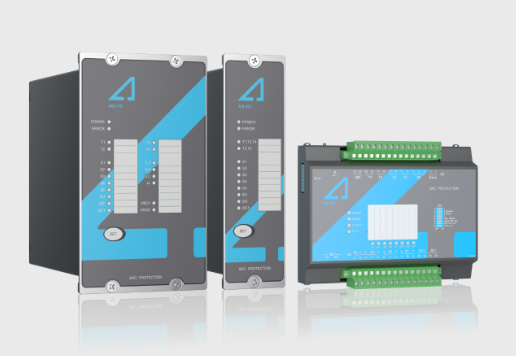

One Arc Protection Relay: Detects arc flash faults using sensor inputs and issues ultra-fast trip commands to limit fault energy.

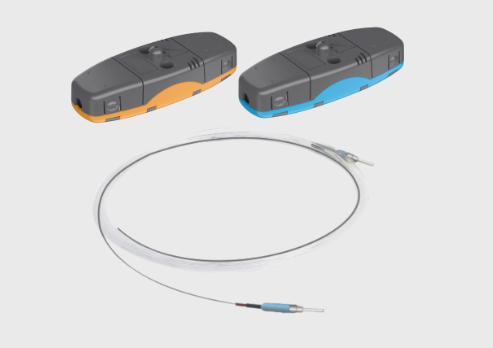

Arcteq Arc Flash Detection Sensors: One arc flash relay may be equipped with 2 arc light point sensors (3 point sensors per channel) and 1 fiber loop sensor. They can rapidly detect arc flash events through optical sensing and provide real-time signals to the relay.

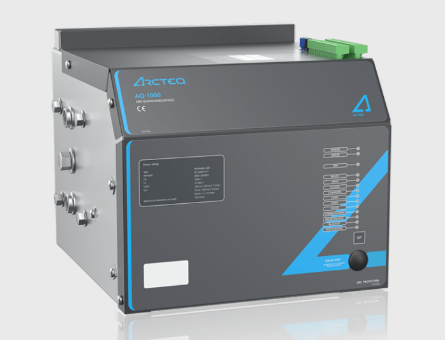

Arcteq Arc Quenching Device: It instantly creates a low-impedance path to extinguish the arc and reduce arc flash impact on equipment and personnel.
Tier AF 800Arc Flash Relay System
Tier AF 800Arc Flash Relay System is the combination of electrical an enclosure, an arc flash relay, multiple arc flash sensors, and other accessories.
