APM-96Q Multifunction Meter With RS485

APM-96Q Multifunction Meter With RS485 by Blue Jay is a premium panel mounting power analyzer with advanced features and precise measurement accuracy. with a user-friendly interface and four direct access keys, it is easy to use for 3P3W or 3P4W low voltage (LV) installations. APM-96Q multi-function power meter also has a digital RS485 communication port that uses the Modbus Protocol to transmit monitoring data.

APM-96Q multi-function power meter gathers data for intelligent power distribution or plant automation. It measures harmonics and records multi-tariff data for accounting purposes. It monitors up to 127th harmonic for a clear understanding of electrical grid quality.

Category: Multifunction Power Meter

APM-96Q multifunction power quality metering

APM-96Q multifunction power quality metering

APM-96Q Multifunction Meter With RS485 by Blue Jay is a premium panel mounting power analyzer with advanced features and precise measurement accuracy. with a user-friendly interface and four direct access keys, it is easy to use for 3P3W or 3P4W low voltage (LV) installations. APM-96Q multi-function power meter also has a digital RS485 communication port that uses the Modbus Protocol to transmit monitoring data.

APM-96Q multi-function power meter gathers data for intelligent power distribution or plant automation. It measures harmonics and records multi-tariff data for accounting purposes. It monitors up to 127th harmonic for a clear understanding of electrical grid quality.

Category: Multifunction Power Meter

Features

Class 0.2 for basic power parameter, according to IEC62053-22 standard
Class 0.5s for active energy (kWh), Class 1.0 for reactive energy (kVarh),
Panel mounting size: 96*96mm
ITF technology: galvanic insulation protection for inputs and outputs
Colorful LCD screen display with English characters
Provides THD and 2-127th individual harmonic monitoring with bar graph display
Records multi-tariff energy data
Displays three-phase current and voltage waveforms
Monitoring of Max demand, Grid unbalance, Voltage, and Current deviation.
Voltage drop and flicker monitoring and recording
5 virtual alarms for event tracing
Max 50 lists SOE records and waveform capture for fault tracing
Optional 128MB memory for logging basic electrical parameters
Optional 3 AO ports for electricity transmitter
Optional 4 DO ports for remote control
Optional 6 DI ports for data collection

Specifications

Power Supply	AC / DC 85-265V, 45-65Hz DC 20-60V (Optional) Burned < 10VA
Current Measurement	…/ 1A or …/5 A Burned < 0.1W
Voltage Measurement	Direct measurement 18~277V ac (L-N) PT secondary …/100Vac Burned < 0.1W
Frequency Measurement	45~65Hz Resolution 0.01Hz
Accuracy	U & I – 0.2; P &Q – 0.5S Frequency – 0.1S Active Energy – 0.5S class Reactive Energy – 1.0 class
Communication Port	RS485 (2/3 wires half duplex) Modbus RTU mode
Pulse Outputs	2 channels Optocoupler relay
Analog Outputs (Optional)	Max 3 channel Isolated 0 / 4 … 20 mA
Relay Outputs (Optional)	Max 4 channel DO & 6 channel DI 5 A@250VAC , 5A@30VDC

Selectable Models

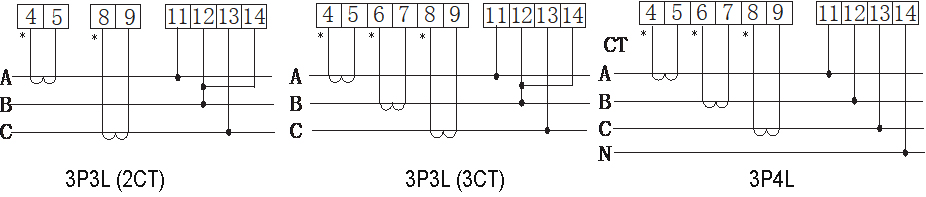

Typical wiring

Download

Catalogue of APM Series multi-Function digital Panel Meter

APM-96Q-User Manual-V1.10 (127th -THD)

APM-96Q-User Manual-V1.12 (63th -THD)

Releted Articles

» Multifunction Meter – Everything You Should Know

» Differences In Wiring Methods Between 3P3W And 3P4W In Electric Meters

» 15 Frequently Asked Questions of Digital Multifunction Power Meter
