BYX550 Transformer Differential Protection Relay

transformer differential protection relay

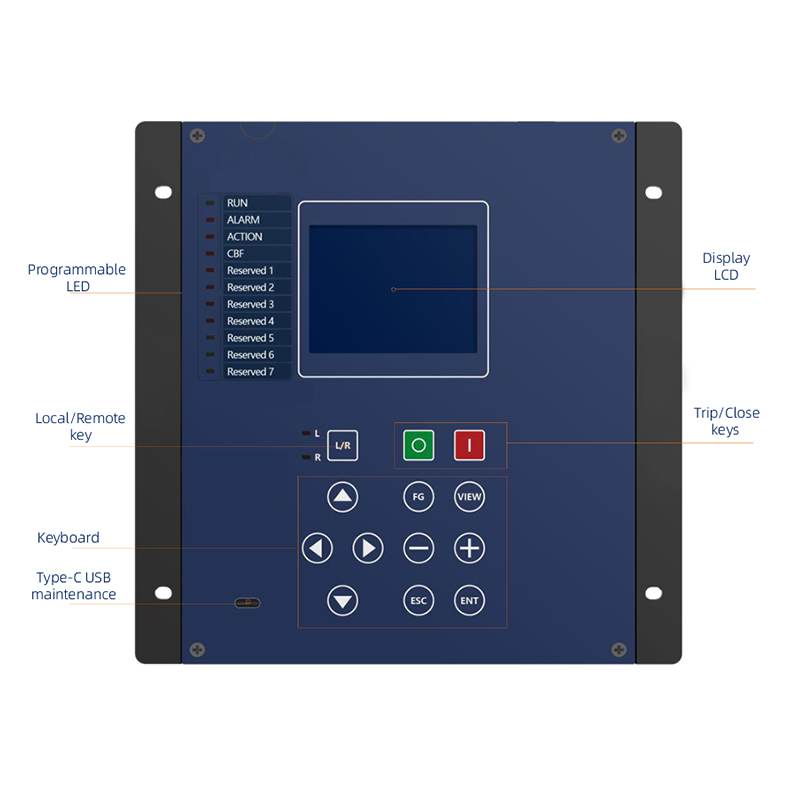

display introduction for transformer differential protection relay

BYX550 Transformer Differential Protection Relay

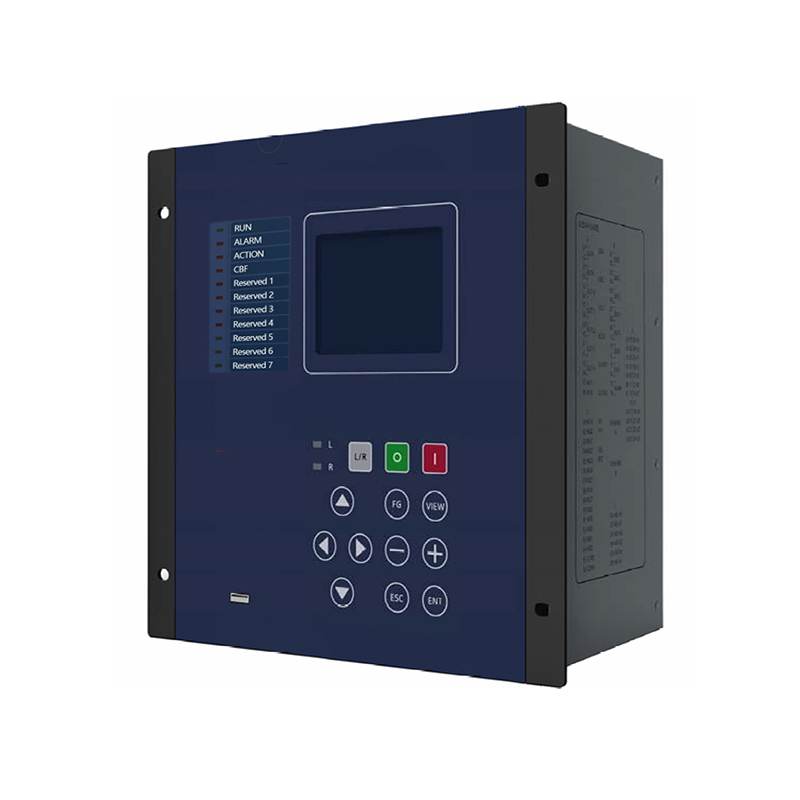

BYX550 Multifunctional transformer differential protection relay integrates protection, measurement, and control functions, providing low-cost and efficient solutions. The differential protection relay can be used for the protection, measurement, and control of overhead lines, cables, transformers, feeders, capacitors, and reactors at voltage levels of 110kV and below.

Category:
Contact Us
transformer differential protection relay
display introduction for transformer differential protection relay

BYX550 Multifunctional transformer differential protection relay integrates protection, measurement, and control functions, providing low-cost and efficient solutions. The differential protection relay can be used for the protection, measurement, and control of overhead lines, cables, transformers, feeders, capacitors, and reactors at voltage levels of 110kV and below.

Category:

Feature

  • Integrated protection, measurement and control functions.
  • Supporting IEC61850, Modbus, and IEC 60870-5-103.
  • Customizing protection functions by logical equations, such as Standby Automatic Switching and VQC.
  • Networked protection through IEC 61850 GOOSE and logical equations.
  • Real-time dynamic display of the action of each protection function, and the action process is visible.
  • Recording the complete information during the action process.
  • Recording large volume disturbance data and turning it into standard COMTRADE format.
  • The transformer protection relay can be maintained through the front panel maintenance port (TYPE-C USB) and the Ethernet port on the back of the device.

Specification

AC Current Inputs 5A or 1A nominal
I0: 150A or 30A or 2A maximum
AC Voltage Inputs 100V or 400V maximum
Frequency 50Hz/60Hz
Digital Input Number:16, up to 48 (optional)
Operating voltage: 24V or 110V or 220V(AC or DC)
Output Contact Ratings Number:8, up to 37 (optional)
Breaking capacity: 50W DC inductive load (U<250V, I<5A, τ=5ms±0.75ms)
Monitoring and Measuring Current:IA,IB,IC,3I0
Range:0.05-1.2A or 0.25-6A; Accuracy: ≤ 0.2%
Voltage: UA, UB, UC, UAB, UBC, UCA
Range:10-120V or 40-480V; Accuracy: ≤ 0.2%
Power:P,Q,cosφ
Range:10-1000W(Var) or 2-200W W(Var)
Accuracy: ≤ 0.5%
Frequency:0.01Hz
Communications Ports Dual RS485
Dual 10/100M (RJ-45)
USB Type C
IRIG-B
Dual 100M Fiber-optic port (LC connector) (optional)
Communications Protocols Modbus
IEC60870-5-103
PRP (optional)
IEC61850 MMS/GOOSE(optional)
Power supply 88 to 264V(AC/DC)
Operating Temperature -25 to 55℃
Protection Function Line differential protection
Line differential protection(Zero. Seq.)
Directional Overcurrent(Phase)
Directional Overcurrent(Ground)
Directional Neutral Overcurrent
Directional Overcurrent(Neg. Seq.)
Overcurrent(Phase)
Overcurrent(Ground)
Neutral Overcurrent
Overcurrent(Neg. Seq.)
Time-Overcurrent(Phase)
Time-Overcurrent(Ground)
Time-Neutral Overcurrent
Time-Overcurrent(Neg. Seq.)
Switch On To Fault
Autoreclosing
Directional Power
Undervoltage: Overvoltage(Phase), Overvoltage(Neutral),Overvoltage(Neg. Seq.)
Frequency (Under)
Undervoltage load shedding
Highly sensitive earth-fault
Synchronism Check
Three-phase thermal overload
Breaker Failure Overcurrent
Additional Functions: Programmable Protection, CT/PT disconnection monitoring, Measuring, Comtrade Recording, Sequence Of Event(SOE)

Application

  • Incoming and outgoing feeder protection, measurement, and control
  • Bus coupler protection, measurement, and control
  • Incoming line or bus coupler backup, automatic switching
  • Station transformer protection, measurement, and control
  • Motor protection, measurement, and control
  • Transformer protection, measurement, and control (no differential protection required)
  • Main transformer backup protection, measurement, and control
  • Capacitor protection, measurement,t and control
