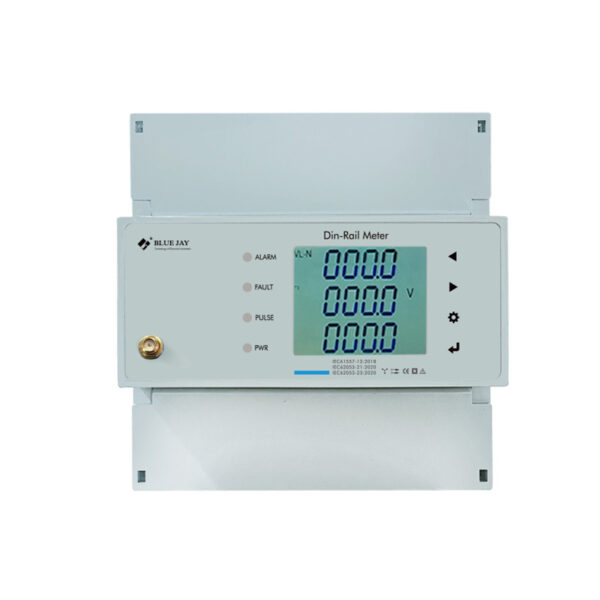

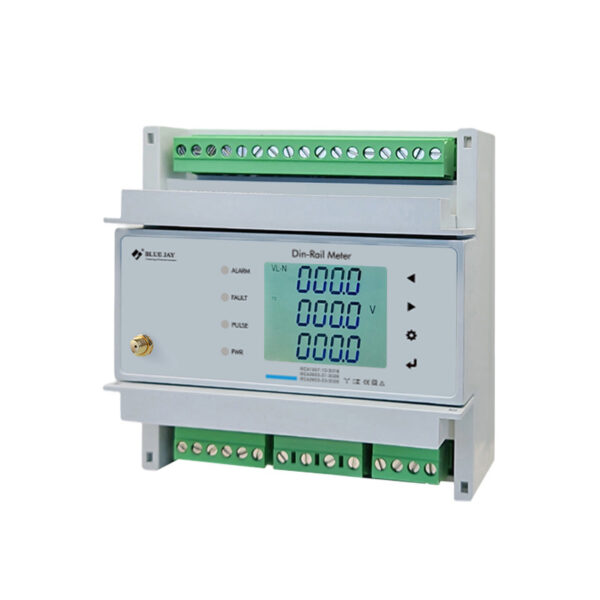

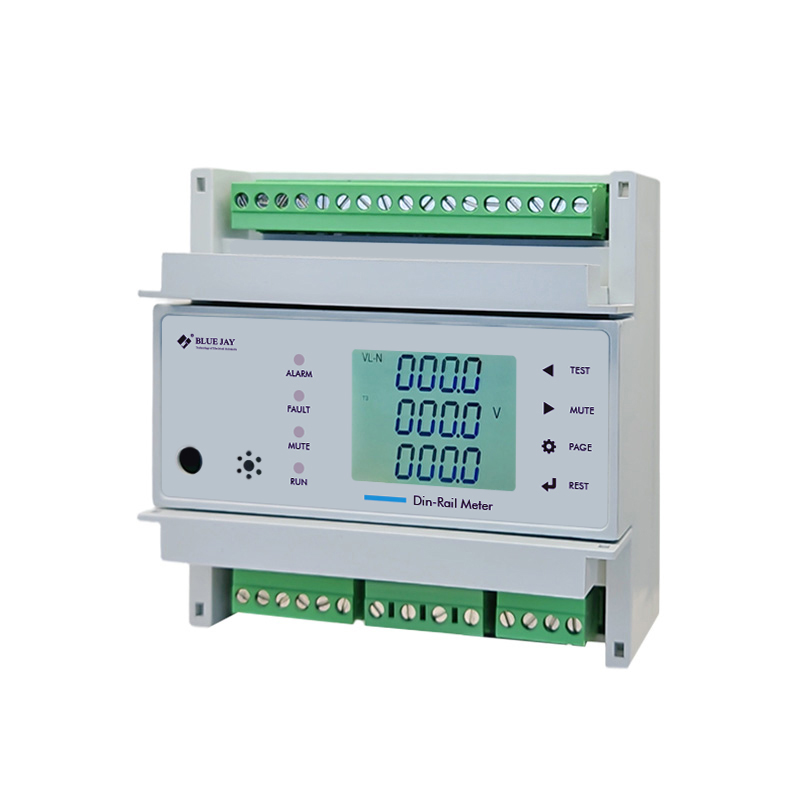

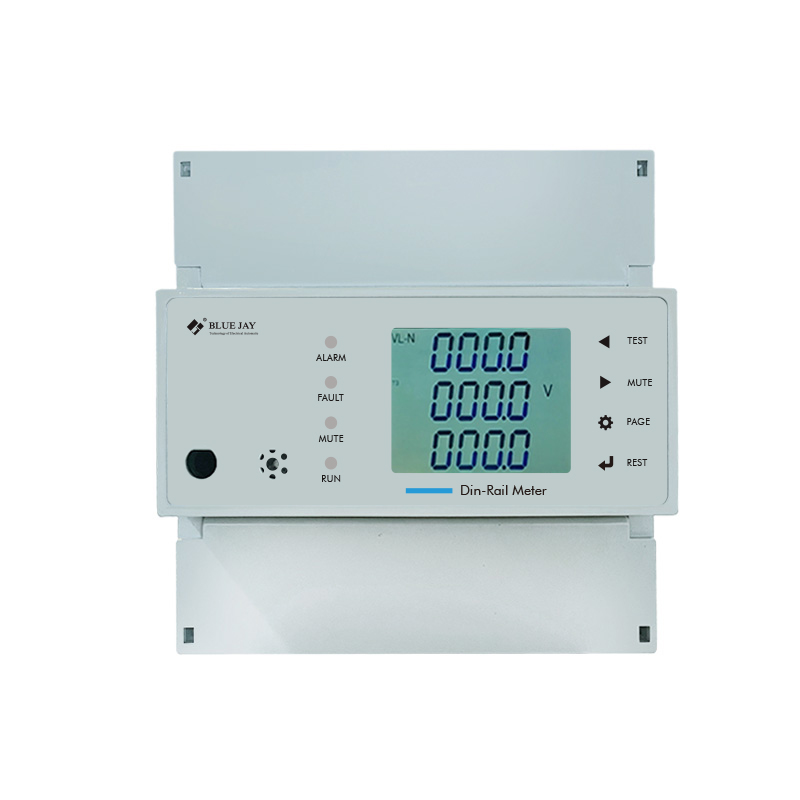

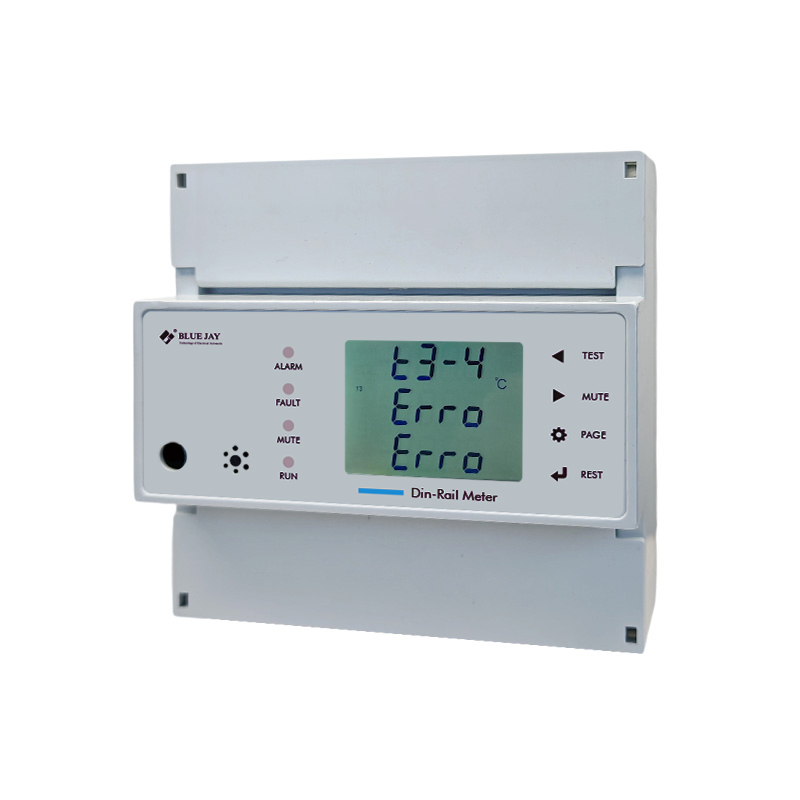

The DEM-6MC three-phase DIN-rail multifunction energy meter provides 0.2% high-precision energy measurement and monitoring. It supports measurement and calculation of three-phase AC electrical parameters, cumulative energy recording, harmonic analysis, voltage and current unbalance analysis, multi-tariff energy metering, maximum demand measurement, digital inputs, alarm SOE record and relay outputs.

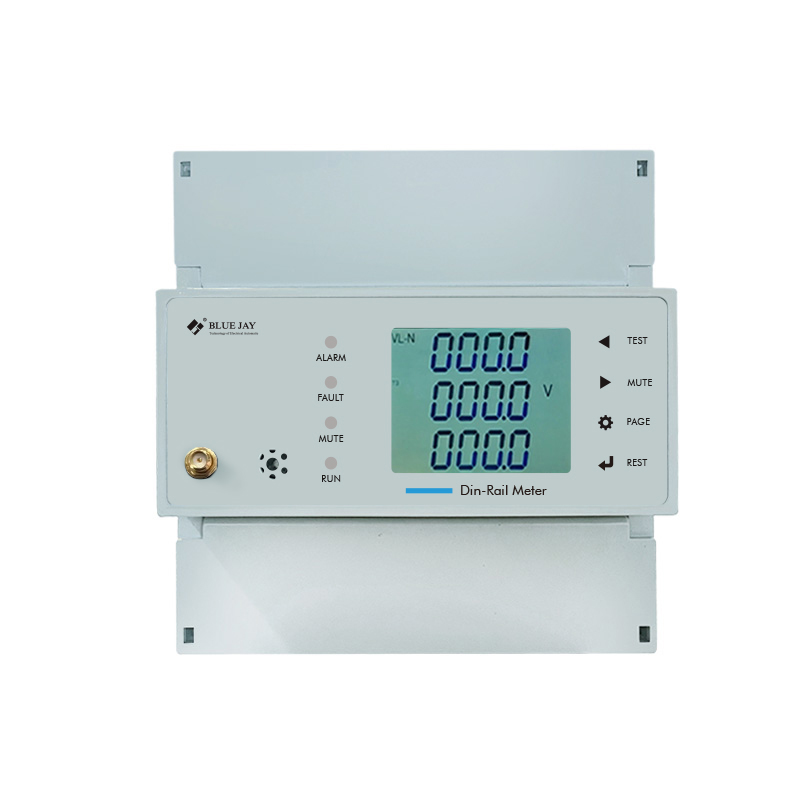

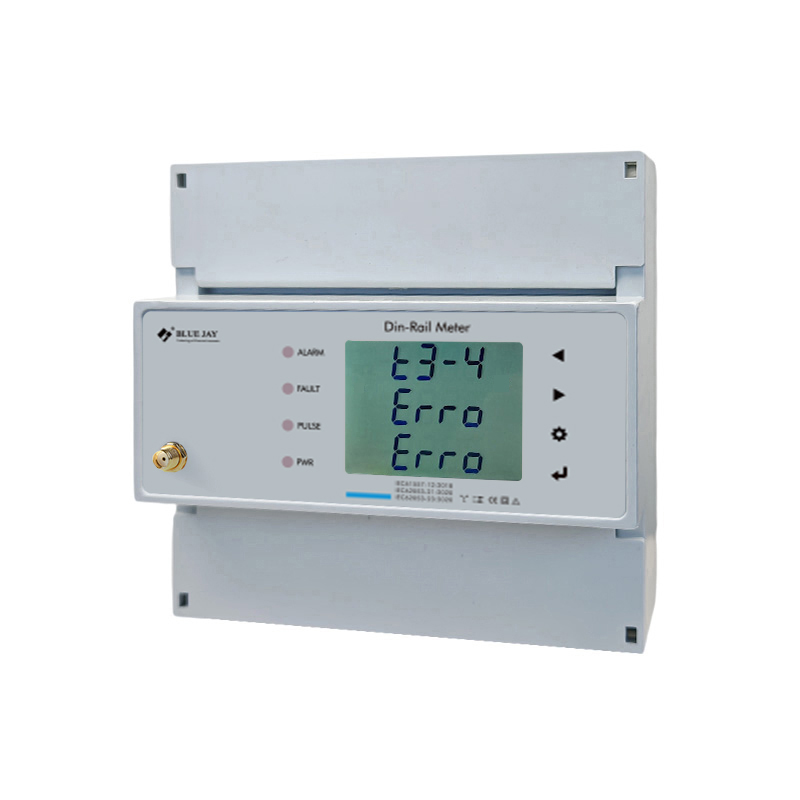

The meter is equipped with communication interfaces for integration with supervisory systems. It standard equipment RS485 interface with MODBUS protocol and 4G wireless communication with MQTT protocol, and optional other wireless modules (Wi-Fi, Zigbee, LoRa, IoT, etc.), enabling transmission of acquired measurement data and device status for centralized remote monitoring and management.
The DEM-6MC three-phase DIN-rail multifunction energy meter provides 0.2% high-precision energy measurement and monitoring. It supports measurement and calculation of three-phase AC electrical parameters, cumulative energy recording, harmonic analysis, voltage and current unbalance analysis, multi-tariff energy metering, maximum demand measurement, digital inputs, alarm SOE record and relay outputs.
The meter is equipped with communication interfaces for integration with supervisory systems. It standard equipment RS485 interface with MODBUS protocol and 4G wireless communication with MQTT protocol, and optional other wireless modules (Wi-Fi, Zigbee, LoRa, IoT, etc.), enabling transmission of acquired measurement data and device status for centralized remote monitoring and management.
| Working power | |

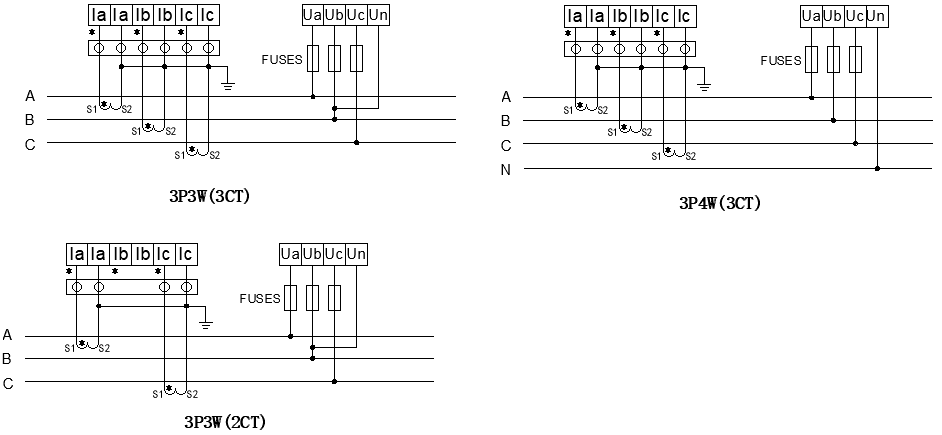

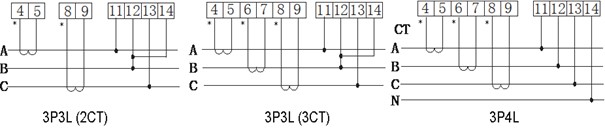

| Power grid mode | 1P2W, 3P3W, 3P4W |
| Power supply | 85-265VAC/DC, 45-65Hz |
| Consumption | ≤5VA |
| Data refresh frequency | 1S |
| Voltage input | |
| Rated value | 100V/220V/380V |
| Overload | 1.2Un |
| Power consumption | <0.2VA |
| Impedance | 0.5MΩ |
| Current input | |
| Rated value | AC 100mA, 1A, 5A (please specify when ordering) |
| Overload | Measurement: 1.2 times Instantaneous: 10 times/3s |
| Power consumption | <0.1VA |
| Impedance | <20MΩ |
| Accuracy | |
| Voltage, current | 0.2% |
| Power | 0.2% |
| Harmonics | Uh>2%: 5%Uh; Uh<=2%: 0.1%Un |
| Residual current | 1% |
| Temperature | ±2°C |
| Frequency | ±0.02Hz |
| Active energy | Class 0.5S |
| Reactive energy | Class 1.0 |
| I/O capacity | |
| DI | 4 channels, dry contact, Ri<500Ω turns on, Ri>100kΩ turns off |
| DO | 2 channels, Relay contact capacity: 5A@250VAC; 5A@30VDC, isolation voltage: 2500VAC |
| Pulse output | 1 channel, pulse width 80ms, photoelectric isolation |
| Communication | |
| RS485 interface | Modbus-RTU, baud rate 1200-19200bps |
| 4G wireless module | MQTT protocol, JSON format, default full electrical parameters, push interval: 15 minutes |
| Optional Wireless modules | WIFI, Zigbee, LoRa, IoT, etc. |
| Safety | |
| Pollution degree | 2 |
| Overvoltage category | CAT III@277/480VAC |
| Insulation capability | 2kV AC RMS 1 minute, between input / output / case / power supply |
| EMC test | |
| Discharge immunity test | IEC-61000-4-2 level 4 @8kV |
| Fast transient burst immunity test | IEC61000-4-4 level 3 @Input 1kV; Power supply 2kV |
| Surge (Shock) immunity test | IEC61000-4-5 level 4 @Common mode: 4kV |
| Environment | |
| Working temperature | -10°C ~ +55°C; RH 5% ~ 95% (non-condensation) |
| Storage temperature | -40°C ~ +85°C; RH 5% ~ 95% (non-condensation) |
| Others | |
| Demand record | Maximum monthly demand in the past three months |
| Multi- tariffs ratio | 4 sets rates, 12 segments |
| SOE record | 60 lists, (30 lists DI/DO SOE and 30 lists Alarm SOE) |

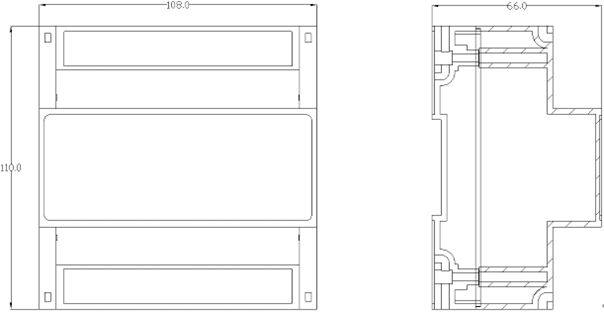

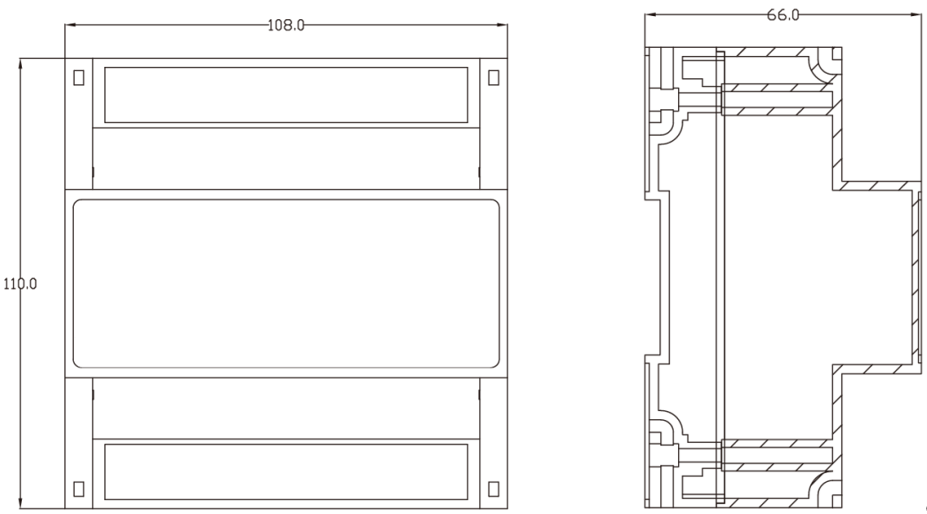

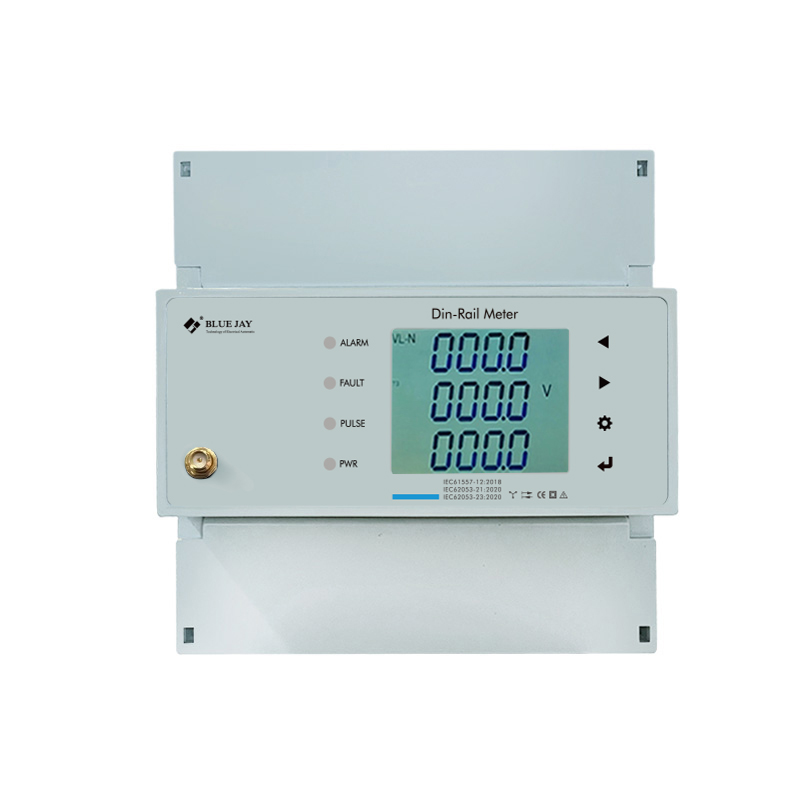

| Dimension | 110mm×108mmx66mm (W*H*D), 35mm Din-rail mounting |
