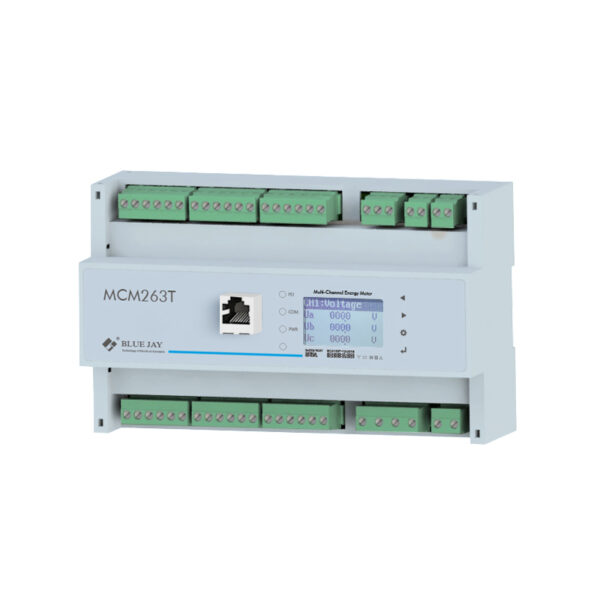

MCM263T 6 Branch Circuit Power Meter Industrial Metering

MCM263T Features

To help you get the suitable branch circuit metering, the main three feature of MCM263T branch circuit metering are in the following:

Up to 6 or 18 branch circuit metering

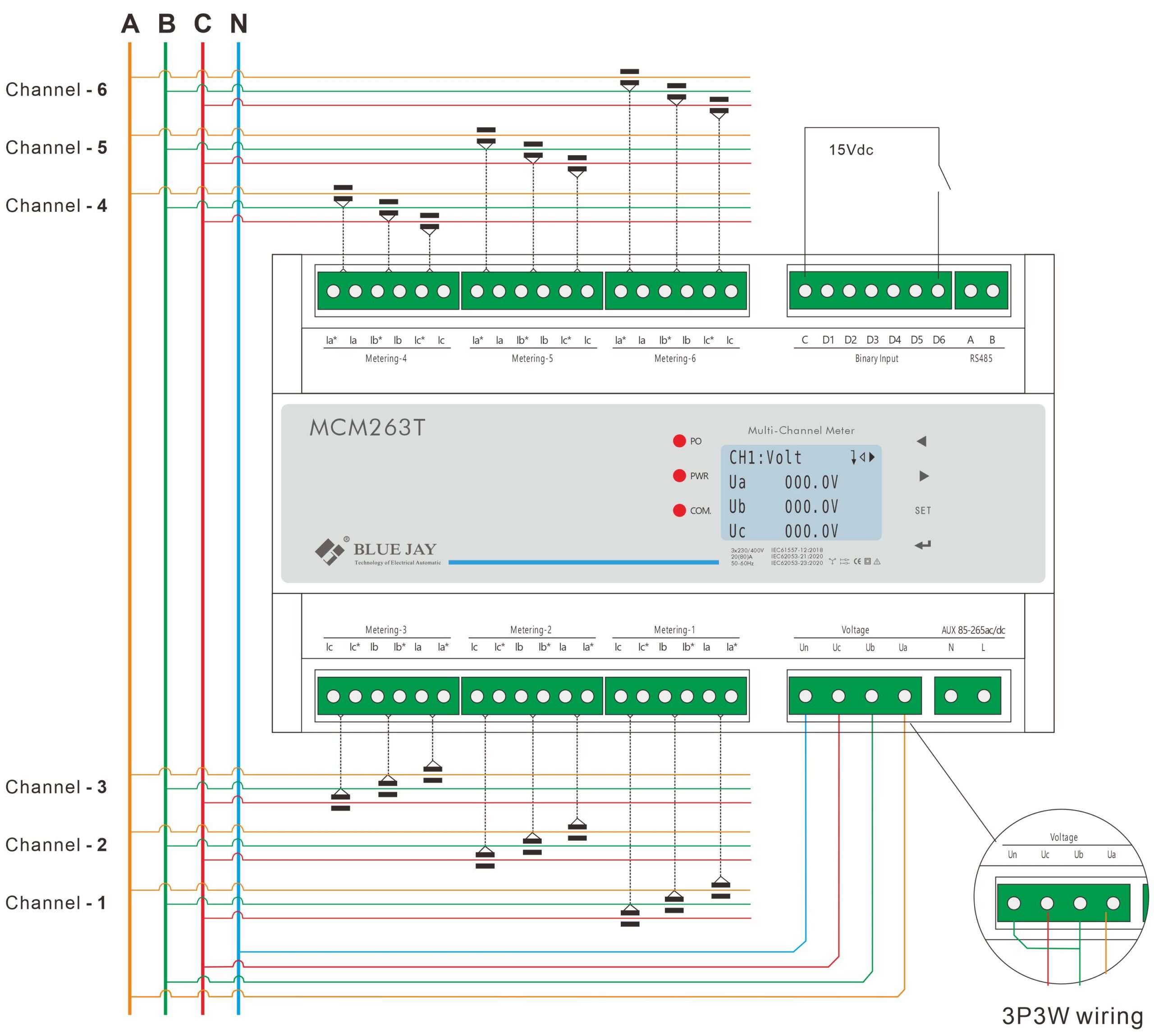

There are 6 metering chips inside the MCM263T branch circuit power meter. One piecies of MCM263T branch circuit power meter can simultaneously measure up to 6 channel three phase circuits or 18 channel single phase circuits within industrial branch circuit powering monitoring applications such as an electrical panel or switchgear.

multi-communication interface of MCM263T branch ciruit metering

Multi-communication Port & Multi-protocal Supported
The MCM263T multi-circuit submeter is equipped with default RS485 interface. To adpat any installation, it is optional for Ethernet Port, WIFi Port, Cellular Port(4G Port), Zigbee Port, NB-IOT Port, Bluetooth, etc. With multi-port option, the MCM263T branch circuit power meter is able to supporting various industrial protocols such as Modbus. Due to multi-communication port and multi-protocal supported, it can connect different industrial systems and integrate data communication flexibly and easily.

Mult-combination of Input/Output
The MCM263T can configurate the DI(digital input), DO(digital output) and PO(pulse output), according to customer needs. They are configured individualy or comibnationly. For example, you can configure 1 DI, 1 DO, and 1 PO togerther. As for MCM263T branch circuit metering, you also can configure 3 DO or 6 DI for alarms ouput indivigually. 6 digital inputs can count pulses from pulse output device. 2 Digital Ouputs can send pulses for an energy management system.

MCM263T branch circuit metering Mult-combination of Input Output

In addition to the above features, the MCM263T branch circuit power meter is equipped with the following features: CATIII-300V safety voltage level, 4kV withstand voltage capability, and PO, DI, and DO ports flexible combinations.

Application

Manufacturing plants, industrial parks and processing workshops; Office buildings, commercial centers and shopping malls;
Residential communities, apartment buildings and single-family homes;
Schools, hospitals and government buildings;
Transportation infrastructure, airports, train stations and subway stations;
Data centers such as server rooms, network operation centers.

Specification

Power Supply	AC / DC 80-265V, 45-65Hz Burned < 6VA
Current Measurement	…/ 100mA or …/ 333mV Burned < 0.1W
Voltage Measurement	Direct measurement 30~450V ac (L-L) Burned < 0.1W
Frequency Measurement	45~65Hz
Accuracy	U / I / P / Q – 0.5% (Optional 0.2%) Frequency – 0.1% Active Energy – 1.0 class Reactive Energy – 2.0 class
Communication Port	RS485 (2/3 wires half duplex) Modbus RTU mode
Dielectric Strength	4kV / AC RMS
