SCM-PDS3W Wireless PD Sensor

SCM-PDS3W partial discharge sensor

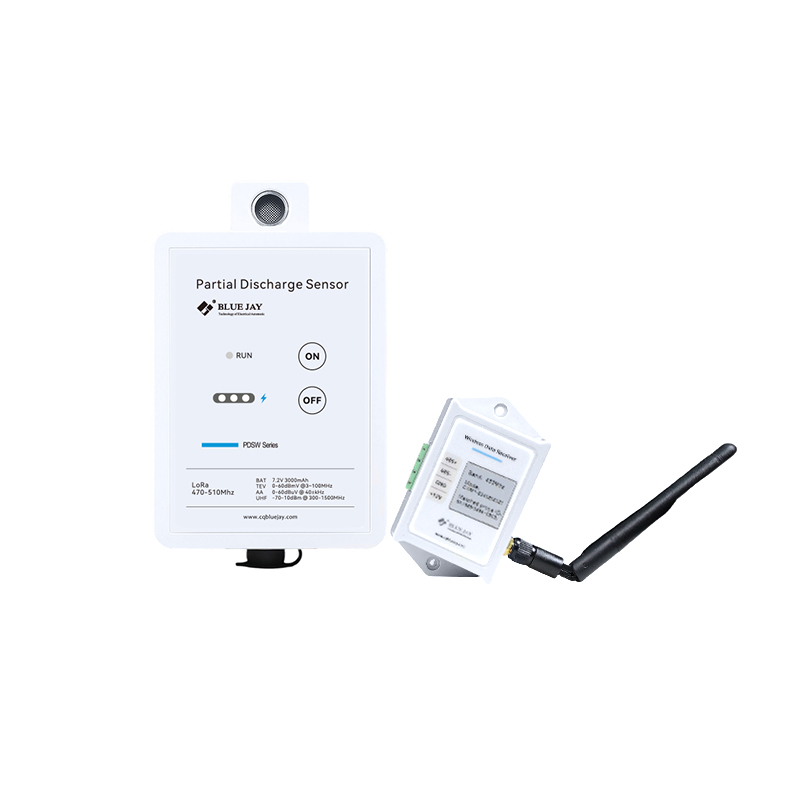

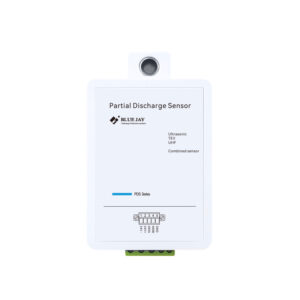

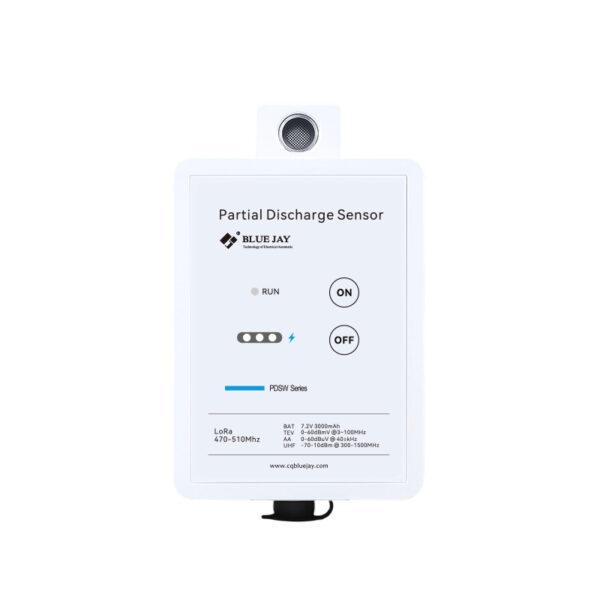

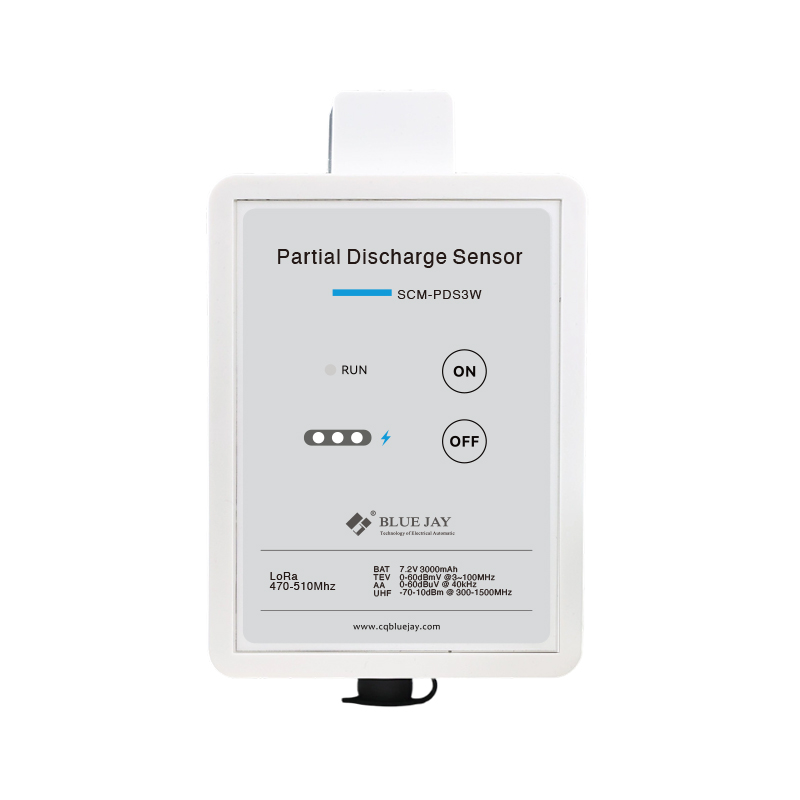

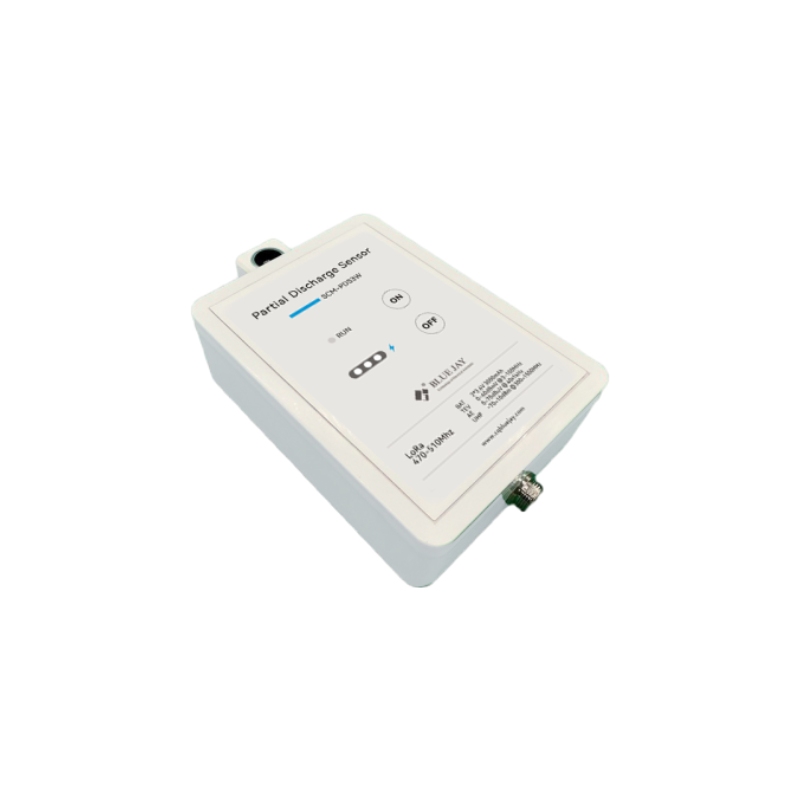

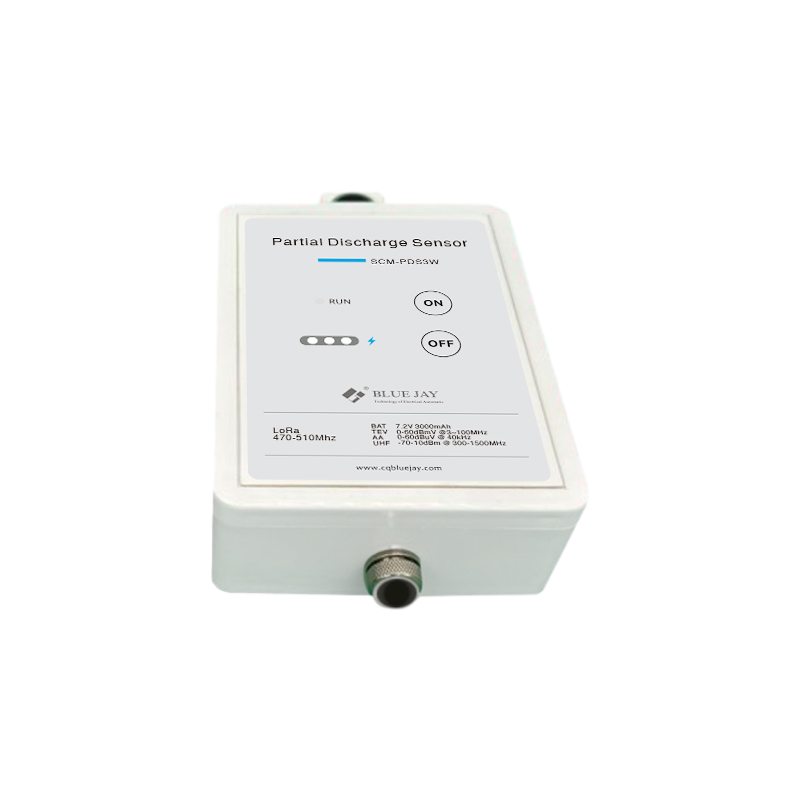

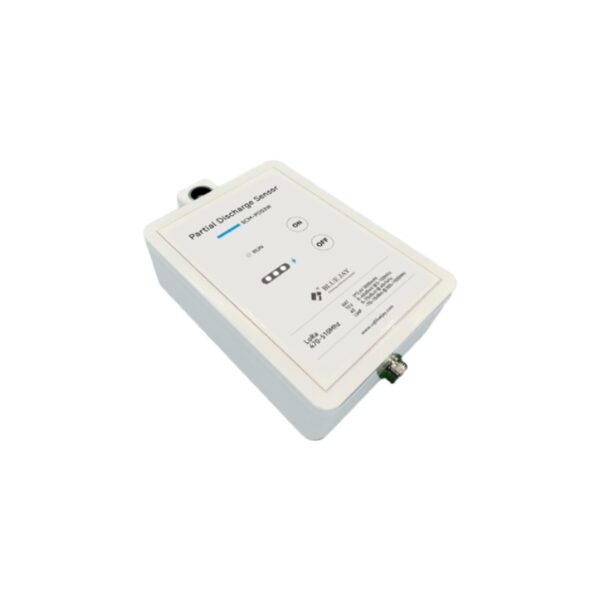

SCM-PDS3W AE TEV UHF Wireless PD Sensor

The SCM-PDS3W PD sensor integrates ultrasonic, TEV (Transient Earth Voltage), and UHF (Ultra High Frequency) technologies to detect partial discharges in middle-high voltage equipment. SCM-PDS3W can monitoring of transformers, high-voltage switchgear, GIS (Gas-Insulated Switchgear), and cable joints. SCM-PDS3W is highly portable, offers fast measurement speeds, and boasts strong anti-interference capabilities, making it suitable for various field applications.

Category: Partial Discharge Monitoring

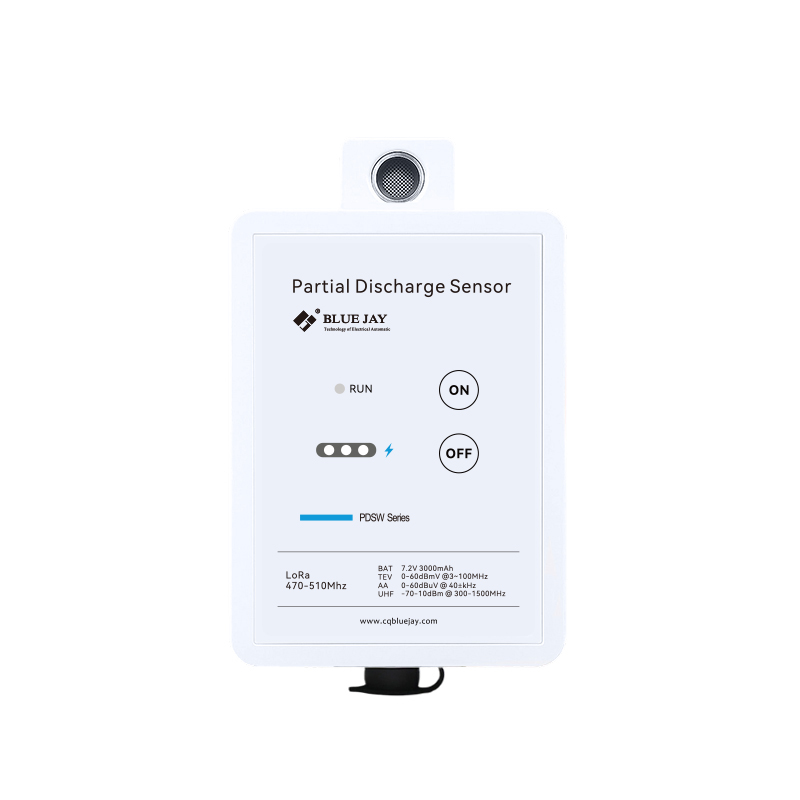

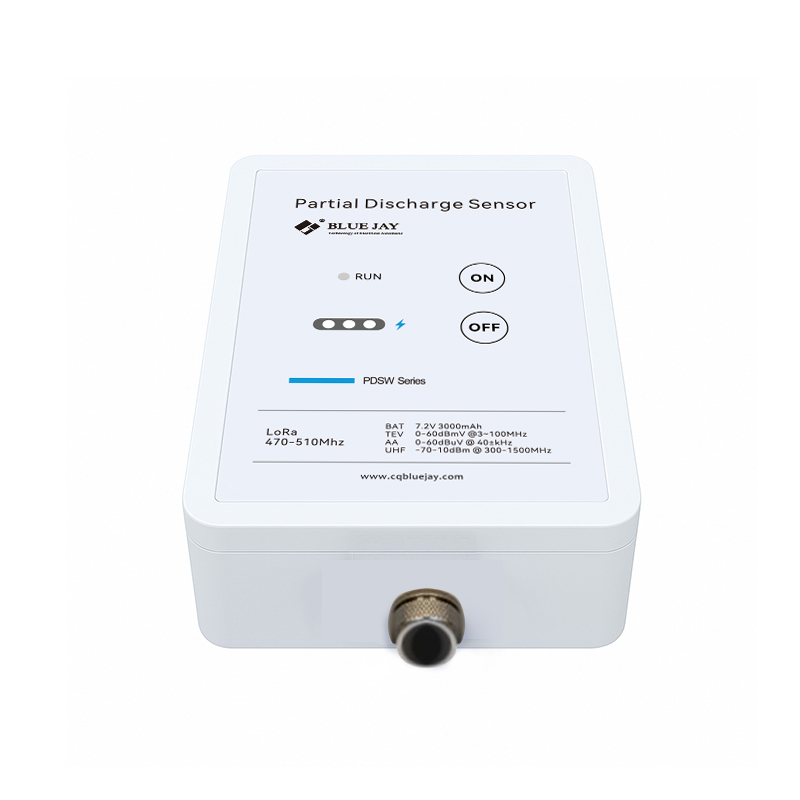

SCM-PDS3W Wireless PD Sensor

SCM-PDS3W partial discharge sensor

The SCM-PDS3W PD sensor integrates ultrasonic, TEV (Transient Earth Voltage), and UHF (Ultra High Frequency) technologies to detect partial discharges in middle-high voltage equipment. SCM-PDS3W can monitoring of transformers, high-voltage switchgear, GIS (Gas-Insulated Switchgear), and cable joints. SCM-PDS3W is highly portable, offers fast measurement speeds, and boasts strong anti-interference capabilities, making it suitable for various field applications.

Category: Partial Discharge Monitoring

Feature

Rugged, compact design;
Non-intrusive detection method;
Strong magnets to attach sensor;
Rapid detection of partial discharge conditions;
Easy to Install, integrated transient (Over-voltage) protection;
Suitable for extreme environment, outdoor substation;
Measures PD in high-frequency UHF range;
Ensures sensitive PD measurements in noisy environments;
Designed specifically for PD detection at HV cable terminations;
RS485, Modbus-RTU, SCADA systems.

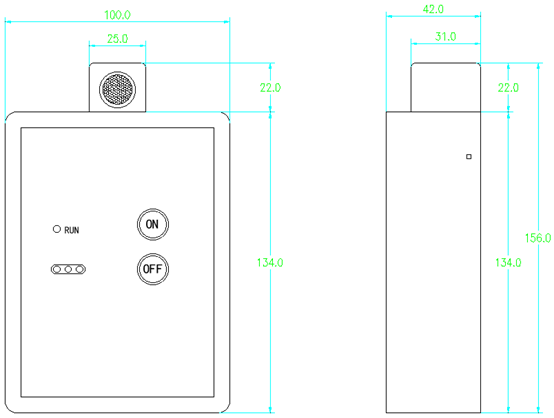

Specification

Sensor common
Power supply	12VDC
Wireless band	433MHz ~2.4GHz optional
Signal transmission distance	Up to 80m (260 feet)
Static power consumption	<10mW
Installation method	4* strong magnet, wall mount
Sampling period	4S
TEV sensor
Detect range	0~60 dBmV
Pass band	3~100MHz
Resolution / Accuracy	1dBmV / ±1dBmV
Ultrasonic sensor (AE)
Detect range	-7dBμV ~ 68dBμV
Resolution / Accuracy	1dBμV
Sensitivity	-65 dB (0 dB=1 volt/μbar rms SPL)
Sensor center frequency	40 KHz
UHF sensor
Detect range	-70~10dBm
Pass band	300~1500MHz
Average equivalent height	≥10mm
Noise detection range	30~130dB
Receiver
Power supply	24VDC
Data upload cycle	120 minutes
Networking mode	LORA self-organizing network
Communication protocol	RS485/Modbus
Extension interface	3 Channels RS485

Application

Factory and on-site testing;
Power transformers;
Medium and high pressure connections;
Power coils, motors;
Gas-insulated integrated circuits (GIS);
Industrial motor equipment;
High pressure components: sleeves, insulators, containers, coil terminations, bus wires.

Detection principle

TEV detection

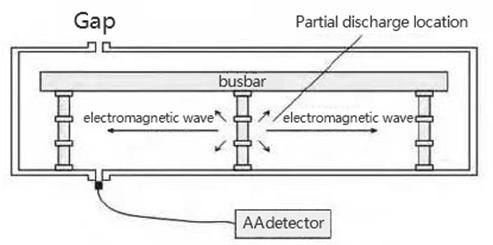

AE detection

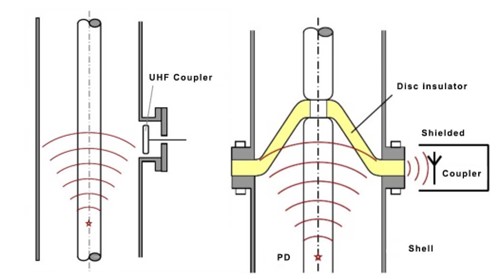

UHF detection
