Partial Discharge Monitoring

– Monitoring partial discharge trend inside the switchgear.
– Various types of partial discharge can be detected.
– One device can monitor muultiple panels.

Partial Discharge Monitoring Solution from Blue Jay

Partial discharge monitoring can sensitively and continuously identify partial discharge activity caused by insulator faults. Therefore, it can prevent insulation failure in advance and reduce operation and maintenance costs. Its features include real-time monitoring, easy installation, high precision, strong reliability, and good scalability.

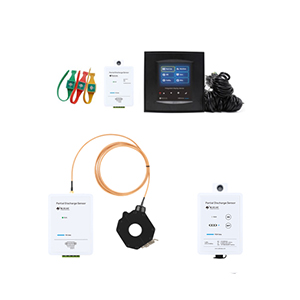

Blue Jay offers a partial discharge monitoring system and partial discharge sensors to monitor partial discharges and understand the true condition of the insulation. Our partial discharge online monitoring system consists of a partial discharge sensor that detects partial discharge signals due to insulator faults and an HMI display for displaying the PD data. The PD sensors include HFCT PD sensors, UHF PD sensors, AE PD sensors, and these combined sensors.

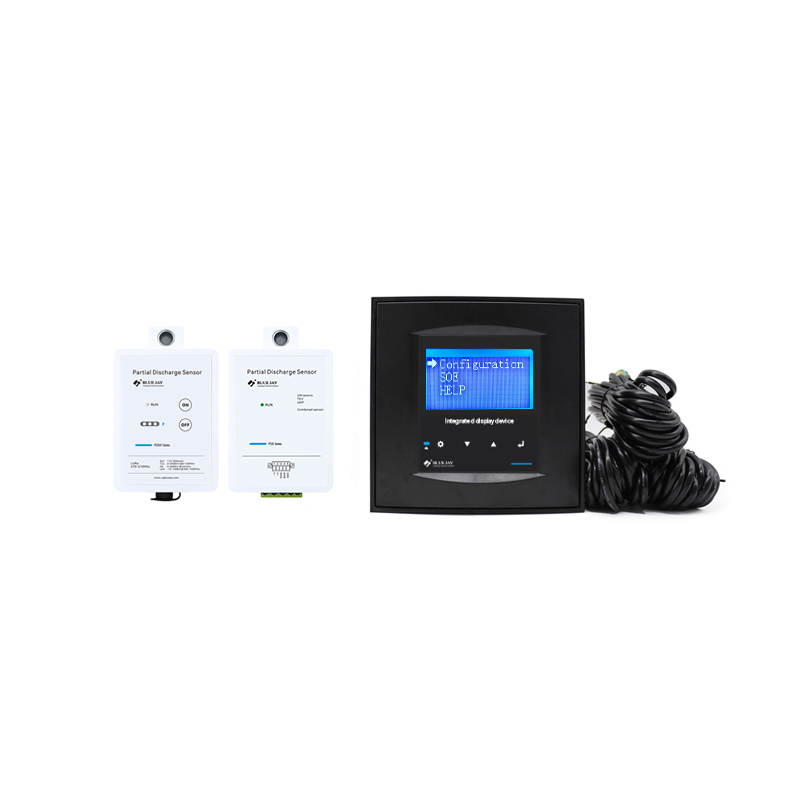

Blue Jay Partial Discharge Monitor with PD sensors

SCM-PD3000 Partial Discharge Monitor

PD3000 Partial Discharge Monitor is an advanced solution for various and continuous partial discharge monitoring in medium-voltage and high-voltage el…
SCM-PDS-HFCT (2)

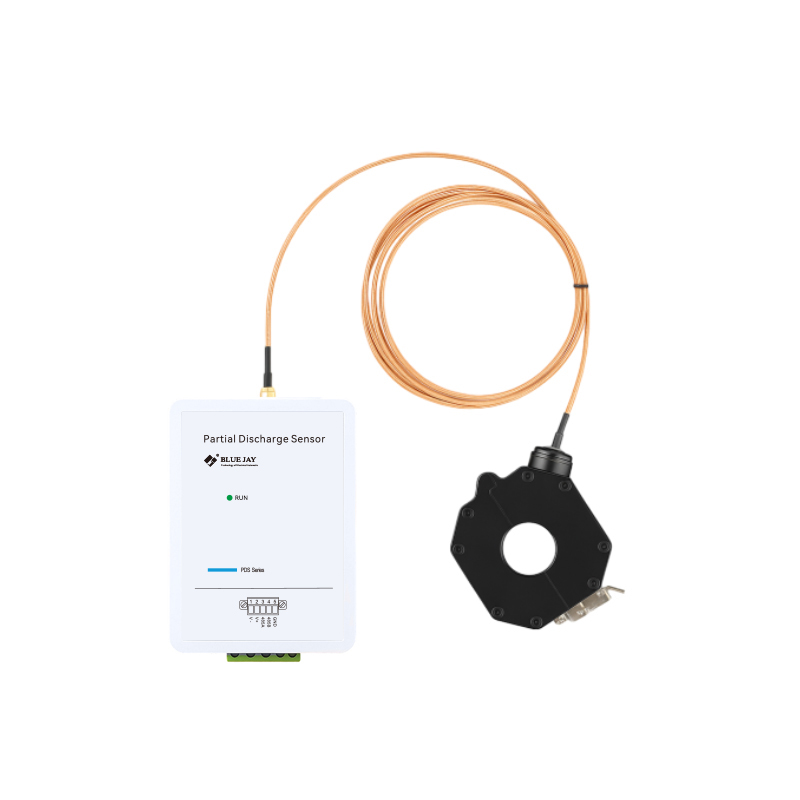

HFCT PD Sensor for Power Cables

The HFCT partial discharge sensor is designed for high-voltage cables. Based on High-Frequency Current Transformer (HFCT) technology and Rogowski coil…

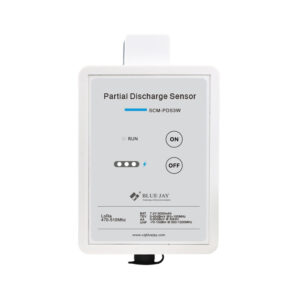

SCM-PDS3W AA TEV UHF Wireless PD Sensor

SCM-PDS3W AA TEV UHF Wireless PD Sensor

The SCM-PDS3W PD sensor integrates ultrasonic, TEV (Transient Earth Voltage), and UHF (Ultra High Frequency) technologies to detect partial discharges…
SCM-PDS3 Partial Discharge Sensor

SCM-PDS3 AA TEV UHF Wired Three-in-one Partial Discharge Sensor

SCM-PDS3 partial discharge sensor integrates three detection technologies: ultrasonic (AA), transient earth voltage (TEV), and ultra-high frequency (U…

Online PD Monitoring System Manufacturer in China

An online partial discharge monitoring system continuously and accurately detects partial discharge from incipient insulator faults while your electrical equipment remains fully operational. This isn’t just about spotting problems; it’s about giving you the critical lead time to prevent partial discharge damage and significantly reduce your operation and maintenance costs. Blue Jay is a leading manufacturer of online partial discharge monitoring systems in China.

Real-time, High-Precision Monitoring:our systems deliver accurate,real-timeinsights into your electrical assets.

Easy to Deploy & Reliable Designed for straightforward installation and dependable, long-term performance.

Customized & Scalable Solutions With over a decade of industry experience, we provide tailored PD monitoring solutions that grow with your unique needs.

Custom Partial Discharge Monitoring System to Protect Your Investment

custom logo for protection relay

Custom your PD Monitoring Logo

custom UI or function for your relay

Custom your PD Monitoring UI

custom Types of protection relay

Custom your PD Monitoring Types

New design for IMD

New Design for your Partial Discharge Monitoring

Advanced Feature of Blue Jay Partial Discharge Monitoring Solution

Blue Jay partial discharging monitoring system protects electrical assets (like motors, switchgear, transformers, cables, etc) from electrical accidents. Why choose our PD monitoring system?

High Precise Positioning: Accurately identify the partial discharge source and quickly locate the fault location.

PD Data analysis: Provide detailed partial discharge monitoring data and analysis reports.

Automatic alarm of high PD activity: Set thresholds, and real-time alarms, and take timely measures.

Remote monitoring: Remotely monitor the operating status of the equipment through the network.

Real-time PD monitoring: 24-hour uninterrupted monitoring of partial discharge signals, locating the fault point, and detecting abnormalities in time.

Multiple partial discharge sensors: Ultrasonic sensors, TEV PD sensors, and composite PD sensors are optional, and can be installed in different areas.

Integration and compatibility: Seamlessly integrated into existing power grid SCADA/EMS/PMS (production management system) and other automation systems, and compatible with equipment from different manufacturers.

Coverage and suitable for various environments: For a large number of widely distributed distribution network devices, this device is easy to install and suitable for various complex environments.

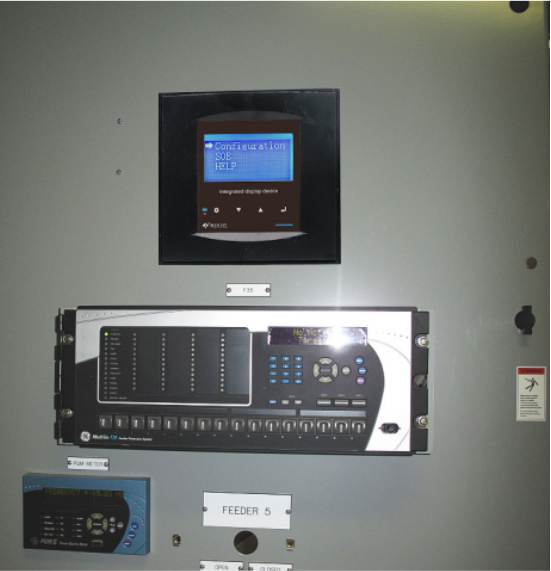

partial discharge monitoring for switchgear

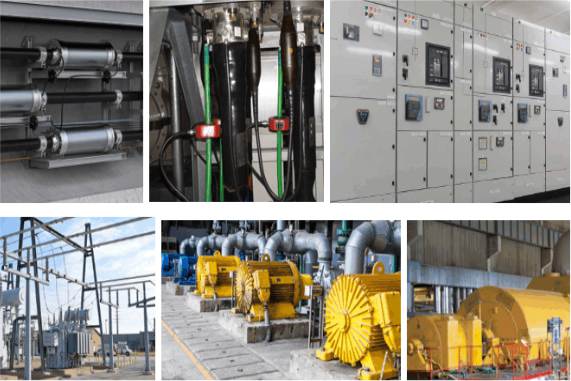

Application of Partial Discharge Monitoring

The online PD monitoring system is usually used in Power plants, substations, distribution rooms, etc. Which specific equipment needs online partial discharge monitoring system? The typical application is PD monitoring for switchgear, PD monitoring for rotating machine, PD monitoring for transformer, and PD monitoring for cables.
