QP-X AC Power Transducer

QP-X series AC power transducer converts three phase ac signals into a load independent dc signal proportional to voltage(V), current(A), active power (watt) and reactive power (var) Frequency(Hz) etc. Three output signals are combined in one transducer so this ac power transducer can be called 3 phase voltage transducer.

The current and voltage signals are passed into the circuit via precision instrument transformers to provide galvanic isolation between the input circuits and the transducer circuitry. Each pair of current and voltage signals is mathematically multiplied together to produce a product signal proportional to true power and independent of wave shape and phase angle.

Category: Electrical Transducer

QP-X AC Power Transducer

273d025c61fb7e814761e2d38d5d78c3

QP-X series AC power transducer converts three phase ac signals into a load independent dc signal proportional to voltage(V), current(A), active power (watt) and reactive power (var) Frequency(Hz) etc. Three output signals are combined in one transducer so this ac power transducer can be called 3 phase voltage transducer.

The current and voltage signals are passed into the circuit via precision instrument transformers to provide galvanic isolation between the input circuits and the transducer circuitry. Each pair of current and voltage signals is mathematically multiplied together to produce a product signal proportional to true power and independent of wave shape and phase angle.

Category: Electrical Transducer

Features

0.5 measurement accuracy
RMS measurement and output
35mm Din rail mounting
RS485 port optional
Three phase independent measurement for 3P4W loops (optional)
Support customized parameters

Specifications

Power Signal Inputs:

Nominal input	../1A or ../5A C.T. connected
Nominal input	110V, 230V, 400V, 415V ac
Power consumption	<1 VA voltage
Power consumption	<0.2 VA current
Overload capacity	1.2 times continuous
Overload capacity	5sec @ 10 times of rated current 2sec @ 2 times of rated voltage
Frequency range	50Hz, 60Hz

Measurment Output:

Standard outputs (others on request)	4~20mA, 0~5V,
	0~20mA;
	5~10V;
	0~10V;
Maximum load	<750 Ω (0-20mA, 4-20mA)
Maximum load	>2000 Ω (voltage output)
Ripple	<1% peak to peak
Response time	<250ms 0-90%
Response time	<500ms 0-99%

Measurement Accuracy:

Class	±0.5 % complying with IEC 60688
Accurate range	0 – 120% I
Frequency influence	<0.02% per Hz
Load influence	<0.25% of F.S. for specific load range

Auxiliary Supply:

Rating	85-265Vac/dc, Optional 12V, 24V, 48VDC
Consumption	<3VA

Galvanic isolation between I/O and AUX:

Test voltage	2KV RMS 50Hz for 1 minute
impulse	4KV 1.2/50µsec waveform

Temperature requirements:

Operating	-10~55C
Storage	-40~70C, 20 ~ 93%RH ; Noncondensing

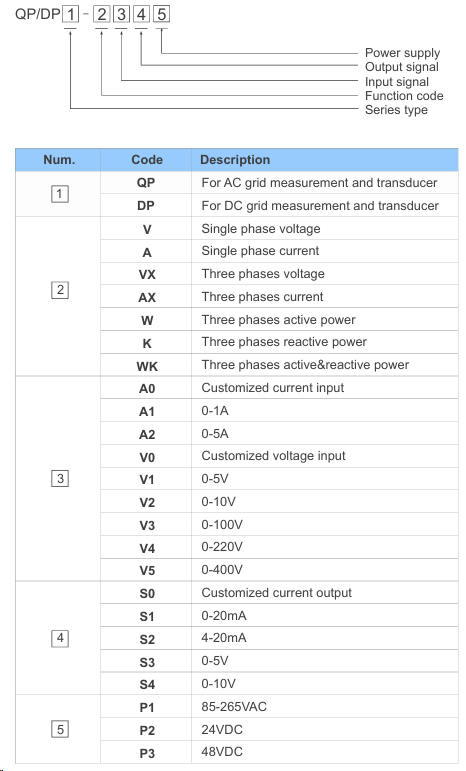

Selectable Models

BJ-QPVX	Three phase voltage transducer 3* Output
BJ-QPAX	Three phase current transducer 3* Output
BJ-QPW	Three phase active power transducer 3* Output
BJ-QPK	Three phase reactive power transducer 3* Output
BJ-QPKW	Three phase active & reactive power combined transducer 2* Output
BJ-QPCX	Three phase combine transducer 4* Output, with RS485, Accept customer order

Downloads

Brochure of POWER TRANSDUCER

BJ-QPX_Transducer_1.3
