Energy Storage System Components – A Comprehensive Guide

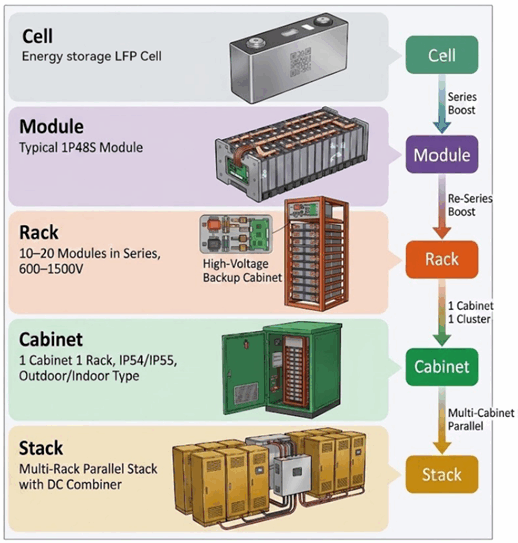

A full energy storage system is not a standalone piece of equipment. Instead, it is built on a clear hierarchical structure: Individual battery cells are wired in series to form battery modules, and these modules are further connected in series to assemble battery clusters or battery racks. Multiple battery racks are installed inside battery cabinets and paralleled together to form battery stacks, allowing flexible system capacity expansion. Finally, several battery stacks are integrated into standard container enclosures to make up a full-scale utility energy storage power station.
This article will introduce the energy storage system components—ranging from cells, modules, and battery clusters to battery cabinets, battery stacks, and energy storage containers—while also highlighting how Blue Jay safety and monitoring solutions integrate at each stage to ensure reliable, compliant operation.
Battery Cell
The battery cell serves as the fundamental energy unit of the entire energy storage system. Currently, specialized Lithium Iron Phosphate (LFP) cells designed for energy storage applications are predominantly used. Common capacities include 280Ah, 314Ah, and 587Ah, with a nominal voltage of 3.2V.
Battery Module
A typical configuration commonly used for battery modules is 1P48S (1 parallel string of 48 series-connected cells). The rated voltage can reach 153.6V, while the capacity remains consistent with that of the individual cells (e.g., 314Ah). Voltage scaling within the module is achieved by connecting the individual cells in series, utilizing a laser-welded busbar process. Furthermore, each module comes standard with NTC temperature sensors—with a minimum of four sensors per module—to ensure real-time monitoring of operating temperatures and to provide robust safety protection.
Battery Rack
A Battery Rack consists of 10 to 20 battery modules connected in series. The voltage of the entire rack can reach 600–1500 V DC, while its capacity remains consistent with that of a single module. As the core voltage unit within an energy storage system, the battery rack directly determines the overall system’s voltage class. Employing an architectural logic where modules are connected in series within the rack to boost voltage, and racks are connected in parallel between racks to scale up capacity, it serves as a pivotal component in the energy storage hierarchy—bridging the gap between the module level below and the cabinet level above.

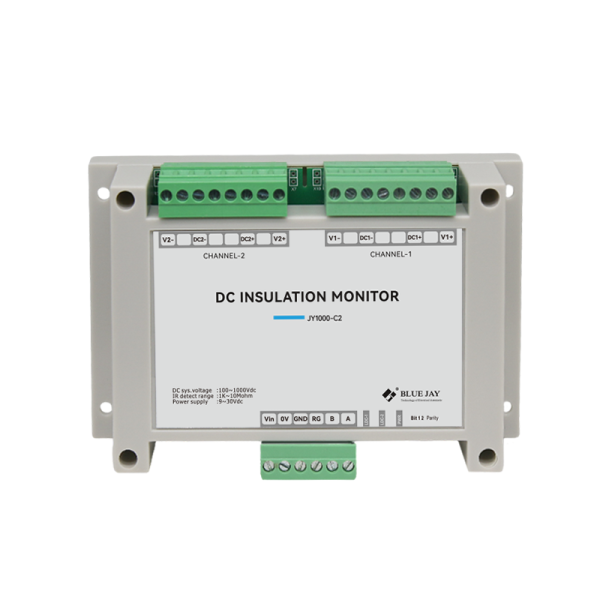

At the battery rack level, as system voltage climbs to 600–1500 V DC, continuous insulation monitoring becomes non-negotiable. Blue Jay JY1000 series insulation monitoring devices are purpose-built for this exact voltage range, providing real-time insulation resistance detection and early warning of ground faults. This prevents minor insulation degradation from escalating into catastrophic failures, making them a standard safety addition for every rack in commercial and utility-scale storage systems.

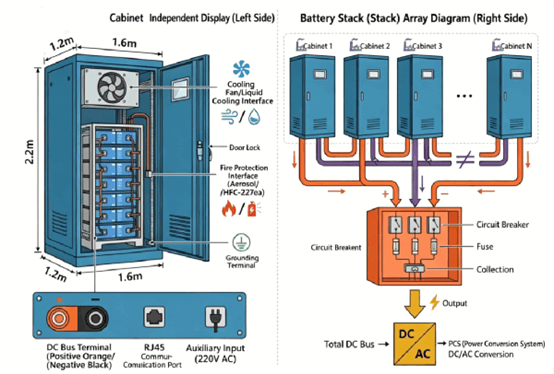

Battery Cabinet
The Battery Cabinet serves as a critical housing unit within the energy storage system. Typically adopting a standard ‘one cabinet, one rack’ configuration, it features an IP54/IP55 protection rating, making it suitable for installation in a wide variety of indoor and outdoor environments. The cabinet integrates standard interfaces for fire suppression systems, RJ45 communication ports, auxiliary power terminals, and grounding copper bars. With a highly organized internal layout, it seamlessly combines robust physical protection with essential electrical connection and signal communication functionalities, thereby ensuring the safe and stable operation of the energy storage equipment.

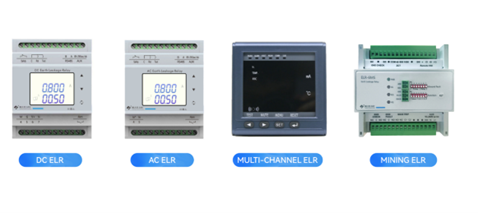

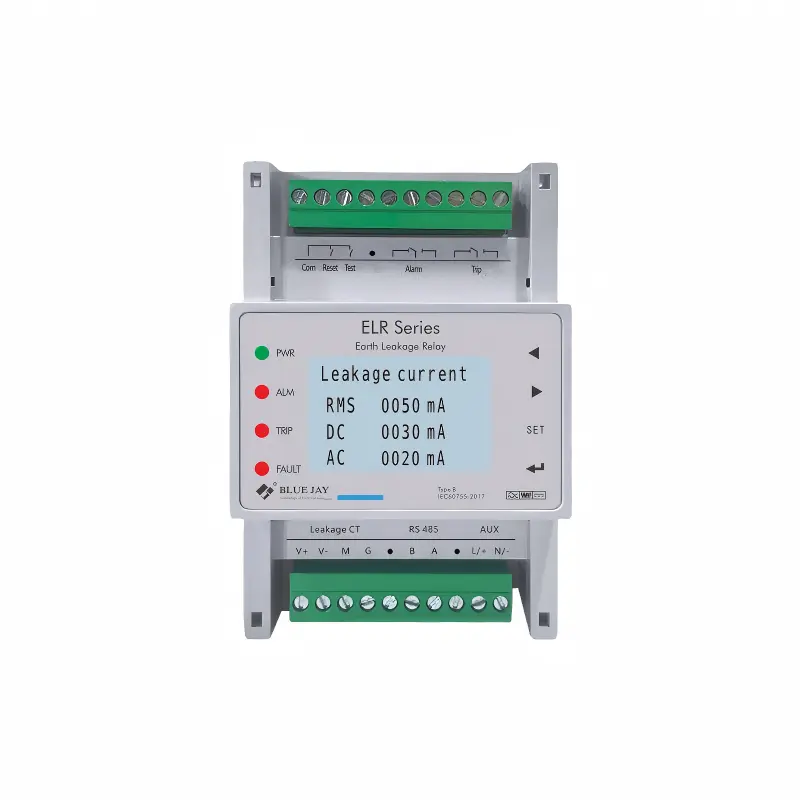

Battery cabinets house multiple racks and centralize power distribution, making them critical points for leakage and fault risks. Blue Jay earth leakage relays are designed to detect even small DC leakage currents at the cabinet level. Paired with circuit breakers, they trigger fast disconnection to protect the entire rack and prevent fire hazards, ensuring compliance with IEC safety standards for energy storage installations.
Battery Stack
A battery stack consists of multiple battery cabinets and internal battery clusters arranged in parallel. Power is centrally collected via a DC combiner cabinet. The total system voltage remains consistent with the voltage of each individual cluster, and the total capacity is the capacity of a single cluster multiplied by the number of clusters connected in parallel. After the battery clusters are connected in parallel via a DC bus, they are uniformly connected to a power storage converter (PCS) to achieve power conversion and grid connection. This is a key unit for energy storage systems to achieve large-capacity expansion and centralized power distribution.
The battery stack stage involves high-current DC busbars, where arc flash events pose a major risk. Blue Jay AFR series arc flash protection systems use UV sensors to detect arcs in milliseconds, tripping breakers before they can cause damage. This level of protection is essential for DC combiner cabinets, where a single arc can disable an entire stack.

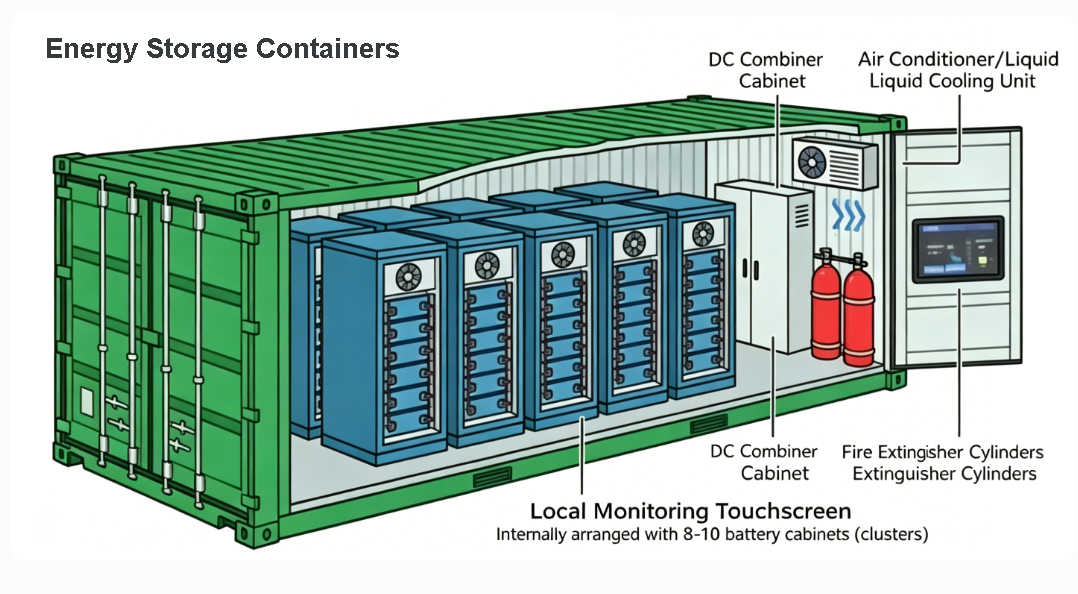

Energy Storage Containers
Energy storage containers serve as the integrated terminal carrier for energy storage systems. A standard 20-foot container can accommodate 8-10 battery cabinets (battery clusters), integrated into an independent battery stack unit. Simultaneously, multiple energy storage containers can be connected in parallel for flexible expansion, easily constructing large-scale energy storage power stations with capacities of hundreds of MWh. They possess advantages such as high integration, rapid deployment, and adaptability to large-scale new energy storage applications.
Inside a standard 20ft or 40ft energy storage container, Blue Jay’s products work together to create a complete safety ecosystem:
Module/Rack level: JY1000 insulation monitors for each rack
Cabinet level: Earth leakage relays for distribution circuits
Combiner level: AFR arc flash protection for busbars
This layered approach ensures every voltage and current level is protected, making Blue Jay a trusted partner for containerized energy storage projects worldwide.
Besides, our compressor dehumidifier can be used in the containers to prevent condensation.
