How to Read Pattern Data from SCM-PDS3 Partial Discharge Sensor?

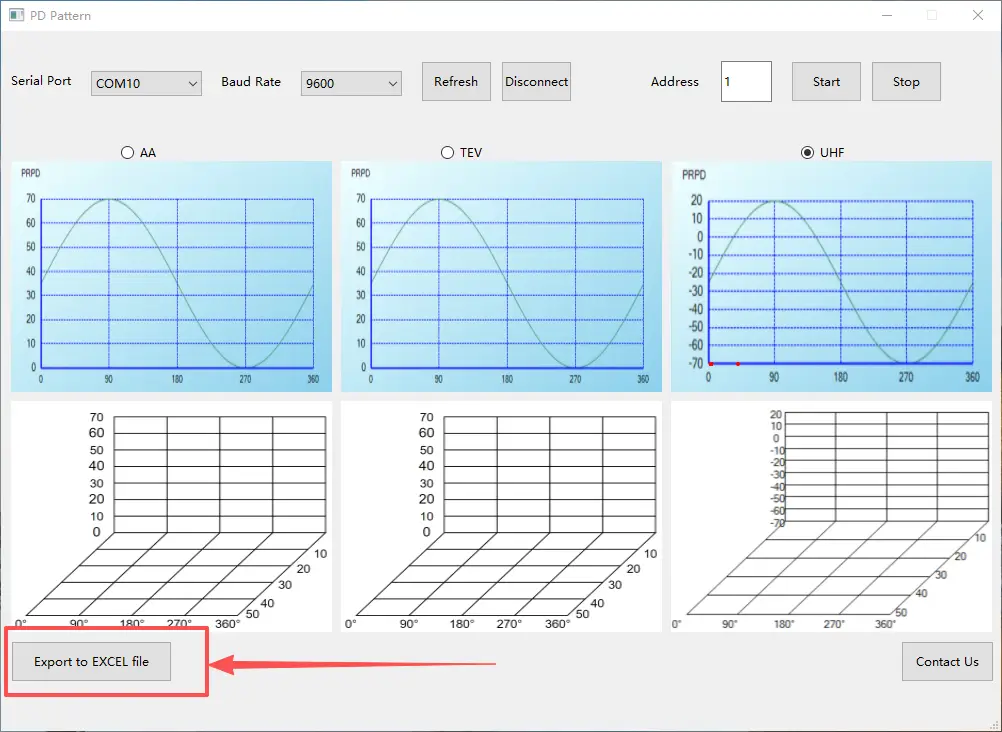

SCM-PDS3 Pattern Data Reading is a professional PC software developed by Blue Jay for the SCM-PDS3 Partial Discharge Monitoring Device. It supports AA, TEV, and UHF partial discharge detection with real-time 2D PRPD and 3D pattern visualization, as well as Excel data export. The following section provides a step-by-step guide to the software’s operation.
Step 1: First click “Refresh” to refresh the serial port. Then enter the device correct “Serial Port”, “Address”, and “Baud Rate” (9600), then click “Connect”.

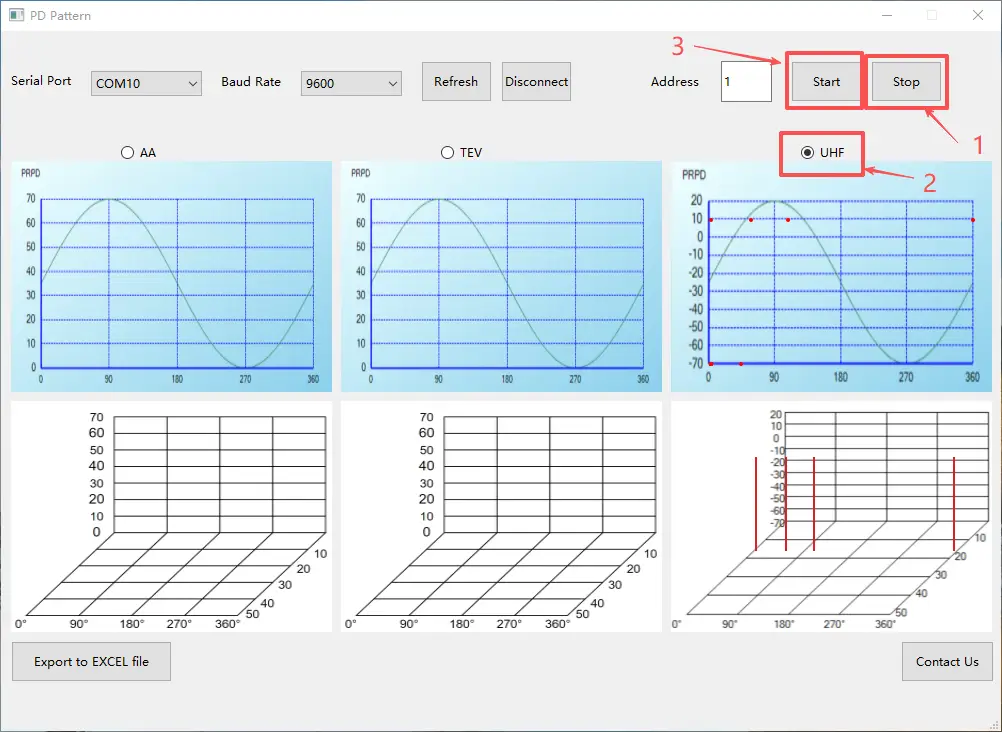

Step 2: Select the required parameters and click “Start” to view the PD pattern data.

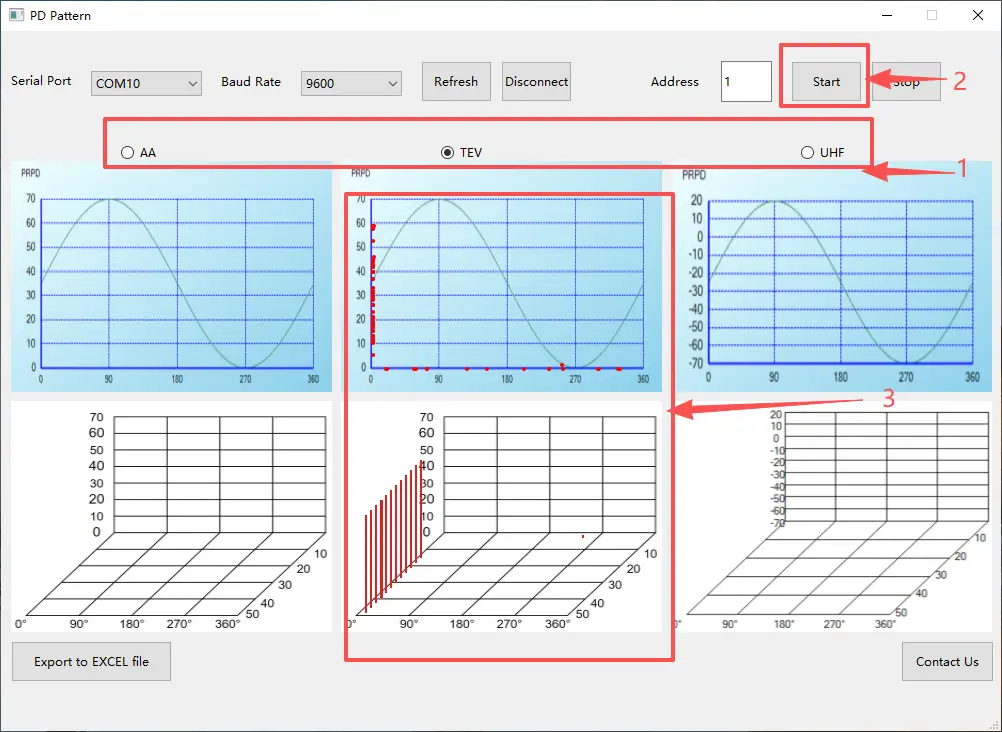

Step 3: To switch to view another parameter (e.g., from TEV to UHF), click “Stop” to stop the current reading first, then select the required parameter and click “Start” to reading.
If you have demand for the SCM-PDS3 Pattern Data Reading Software, kindly contact Blue Jay. We provide complete supporting software, comprehensive technical guidance and full-range product services to facilitate your partial discharge testing and data analysis work.
