All-in-One EV Charger Metering & Protection Solution
Precise revenue-grade energy metering, real-time insulation monitoring, and full-range residual current protection ensure safe, compliant, and profitable operation for all AC & DC charging stations.
Discover Our Broad Portfolio for EV Charging stations
EV charging stations rely on three critical electrical safeguards for reliable, safe operation: compliant energy measurement for billing, continuous insulation monitoring for isolated DC circuits, and comprehensive residual current detection to mitigate shock and fire risks.

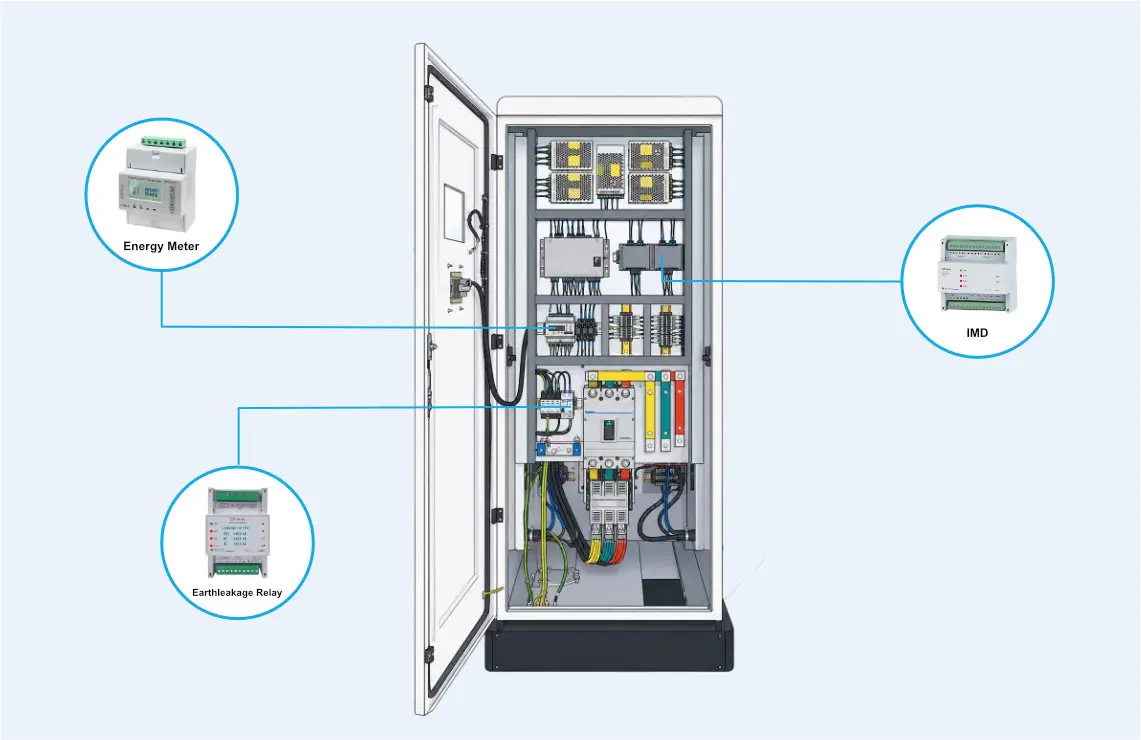

Our solution covers the three core functional demands of EV charging systems: accurate energy revenue metering, real-time insulation health monitoring, and full-type residual current leakage protection. It fully adapts to household, commercial, public fast-charging and station-level centralized charging scenarios, complying with IEC 61851 and latest global EV charging safety standards.

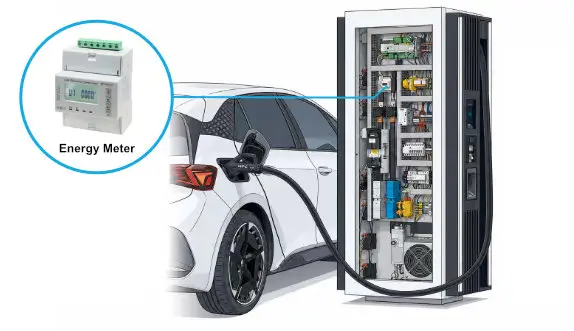

EV Charging Meters
EV charging stations face issues including metering drift, power‑quality‑induced hardware aging, unmonitored V2G bidirectional flow, and complex energy compliance logging under frequent load changes and round‑the‑clock operation.
Our revenue‑grade EV charging meters resolve these pain points. They deliver accurate real‑time and cumulative energy measurement under dynamic loads, monitor harmonics, support V2G bidirectional metering, and keep complete data logs. Suitable for AC Level 2 and DC fast chargers, they enable reliable billing, refined energy management and full audit traceability.
Insulation Monitoring device for EV Charging Stations
DC fast‑charging stations face insulation risks from humidity, dust and cable aging. Isolated DC circuits lack effective ground‑fault detection, which may cause equipment damage and electrical hazards.
Our IMD monitors DC+/DC‑‑to‑earth insulation resistance for isolated DC charging loops. It issues early deterioration alarms for proactive diagnosis. Running continuously without power interruption, it prevents shock and hardware failure.
Earth Leakage Protection for EV Charging Stations
EV chargers produce mixed AC, pulsating‑DC and smooth‑DC leakage currents. Standard RCDs cannot pick up DC leakage, leaving hidden micro‑leakage risks. Build‑up leakage leads to overheating and fires; frequent connector use and aging raise electric‑shock dangers.
Our standard‑compliant RCM detects full‑spectrum mixed AC‑DC residual current. It tracks real‑time micro‑leakage to prevent overheating‑caused fires and electric shocks, offering essential safety protection for public and commercial charging stations.
Our Solutions for All EV Charging Stations
Discover our high-performance, intelligent and cost-effective solutions. We help advance your EV charging station projects while enabling reliable safety protection and precise billing throughout the charging process.
Related Products
DCEM-3MS DC Energy Meter With RS485
DCEM-3MS DC Energy Meter With RS485 is a combined DC power measurement terminal, which is a highly integrated product for
DCEM-4MS Dual-Channel DC Energy Meter
DCEM-4MS Dual-Channel DC Energy Meter is designed for power measuring and fiscal billing within an EV Charger station. This DCEM-4MS
ELR-4MD DC Earth Leakage Relay
The ELR-4MD Type A DC Earth Leakage Relay is an advanced protection device designed to enhance the safety and reliability
BIM-M1000 Insulation Monitoring Device for AC/DC system
The BIM-M1000 is designed to monitor the insulation resistance of ungrounded AC/DC IT systems up to 1000 Vac/dc. The device
BIM-4MS Insulation Monitoring Device
BIM-4MS is designed for continuous insulation monitoring in unearthed (IT) DC systems, supporting voltage ranges up to DC 100–1000 V. The
BIM-CH2 Dual Channel Insulation Monitoring Device
BIM-CH2 Dual Channel Insulation Monitoring Device is designed for online insulation monitoring of two independent DC IT systems with a
ELR-4MB Type B Earth Leakage Relay
ELR-4MB is a Type B Earth Leakage Relay for TN and TT systems, compliant with IEC 60755:2017. It provides reliable
