Technology of Electrical Automatic
One Metering & Safety Partner for Data Center
We are one source for energy management & electrical Safety from utility grid to server racks. Work together with Blue Jay to operate your data centers efficiently and responsibly.
Discover Our Broad Portfolio for Data Center

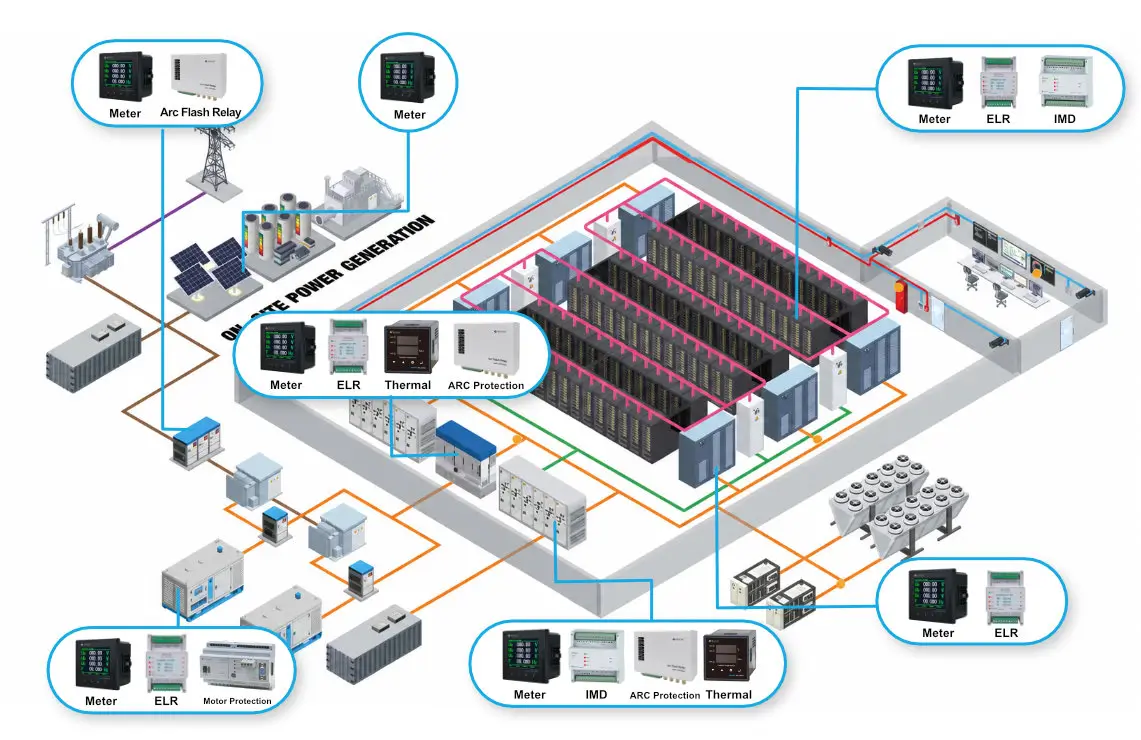

A data center’s critical power distribution system spans from Utility Power Supply, Backup Generators, Transformers, and Switchgear, Automatic Transfer Switches (ATS), Uninterruptible Power Supply (UPS) systems, Distribution Cabinets (PDUs/RPPs), Cooling Systems, and down to the IT Loads (Server Racks).
Our comprehensive portfolio of Smart Energy Meters and Protection Relays covers every single node of this critical chain. We provide end-to-end solutions that ensure high-precision energy metering, real-time power quality analysis, proactive insulation monitoring, and lightning-fast electrical protection—empowering data centers to achieve maximum uptime, optimized PUE, and complete operational safety.

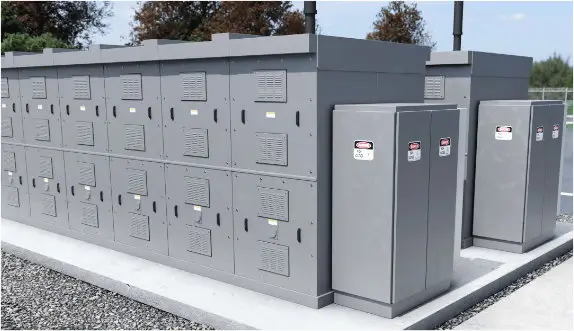

Utility & Main Switchgears
Utility switchgears (MV switchgears, main switchboards, substation switchgears) form data centers’ core power‑inlet and LV distribution backbone. Grid‑side voltage deviation and power‑quality distortion may trigger unplanned outages and disrupt power continuity.
To counter these risks, comprehensive power monitoring and multi‑layer electrical protection are essential. Blue Jay provides metering and protection relay solution for utility switchgears:

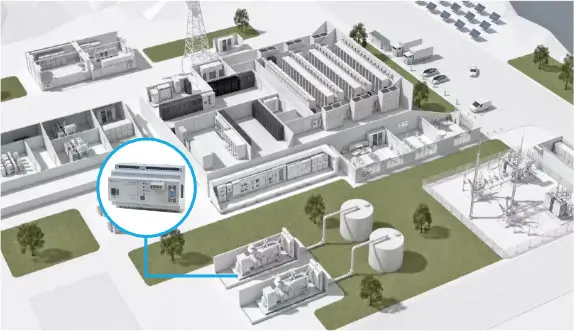

Generators
Backup generators provide data‑center emergency power during grid failures. Precise real‑time monitoring is required for smooth load transfer. Intermittent standby mode and dynamic load switching may lead to load imbalance and hidden faults, risking emergency power loss.
Blue Jay high‑precision multi‑function meters and dedicated protection relays ensure gensets stay ready and operate safely.
Change-over Panel / ATS Switchgear
ATS/MTS panels are critical switching nodes between grid and backup generators. They require Class 0.2S high‑precision bidirectional metering for energy billing. Frequent switching risks contact wear, insulation degradation, residual current build‑up and transient arcs, calling for comprehensive protection for fault‑free power transfer.
Blue Jay offers revenue‑grade meters and all‑round protection relays for reliable ATS switching and accurate energy measurement.
UPS System
UPS systems deliver AC‑DC conversion and uninterrupted power for core IT loads as data centers’ final power‑continuity safeguard. Precision input/output metering optimizes conversion efficiency and lowers PUE. Isolated UPS circuits require protection against insulation failure, residual current, arc flash and module overheating to prevent service outages and electrical hazards. Blue Jay professional multi‑function meters and dedicated protection devices secure stable UPS operation.
Cooling System / Air Handling Unit
Cooling systems (chillers, pumps, AHUs) are key non‑IT loads maintaining data‑center environmental conditions. Branch sub‑metering supports refined energy management. Long‑term operation and humid environments may cause leakage, residual‑current imbalance, arc flash and motor overload, risking cooling shutdown.
Blue Jay DIN‑rail meters and dedicated protection relays enable efficient metering and reliable cooling‑system protection.

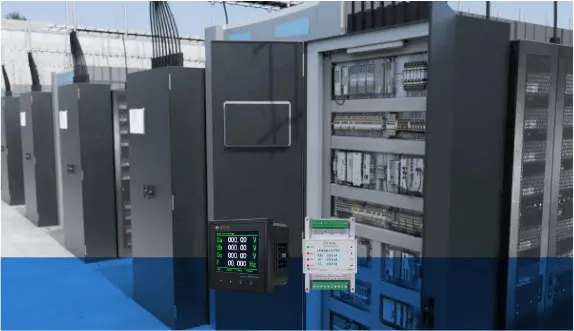

Distribution Cabinet / PDU / RPP
Distribution cabinets, PDUs and RPPs supply dense multi‑loop power to server racks. Multi‑loop real‑time metering enables refined load management and fault pre‑warning. High‑density wiring and continuous loading may cause busbar aging, loose connections, residual‑current build‑up and overheating, risking wide‑spread outages and electrical fires.
Blue Jay multi‑channel energy meters and matching protection relays deliver compact monitoring and safe high‑density power distribution.

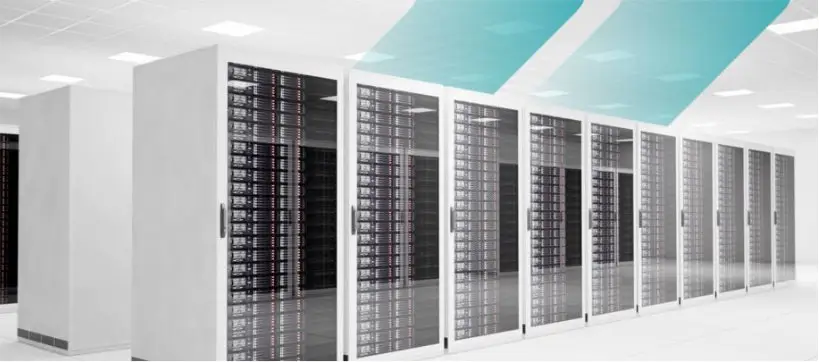

IT Loads / Server Rack Area
Server racks host core IT loads, requiring per‑rack precision metering for load assessment, capacity planning and tenant billing. High‑tier data centers need protection against leakage, residual‑current faults, arc flash and cable overheating to avoid service outages.
Blue Jay compact DIN‑rail meters and dedicated protection relays maximize IT system uptime.
DC Distribution
DC Distribution (HVDC Systems & DC PDUs) manages direct-current power conversion and distribution to reduce energy loss across data center IT infrastructure. At these high-voltage or low-voltage DC nodes, precise DC metering is required to monitor DC Voltage (V), Current (A), Power (kW), Energy (kWh), and ripple/voltage drop.
For these DC power feeds, we recommend our DC Multifunction Energy Meters (Panel / DIN-Rail mount with DC Shunt/Hall Sensors) to enable accurate DC energy billing, battery backup profiling, and real-time power capacity management.

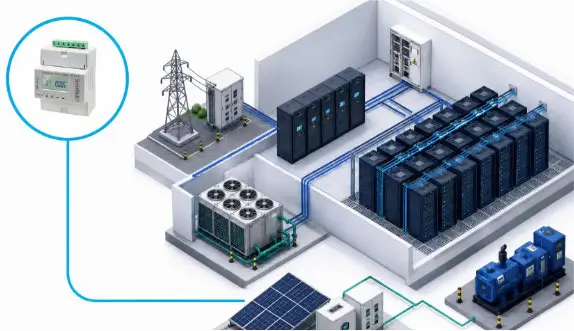

PV system
PV and Energy Storage Systems (PV & ESS) serve as the green microgrid within modern data centers, integrating solar power and battery storage via PCS and inverters for sustainability. To enable peak shaving and accurate carbon accounting, this node requires continuous monitoring of bi-directional kWh, active/reactive power (kW/kVAR), Voltage, Current, Power Factor, and charge/discharge status. For these dynamic feeds, we recommend High-Precision Bi-Directional Energy Meters to verify green power usage, optimize energy costs, and strengthen grid stability.

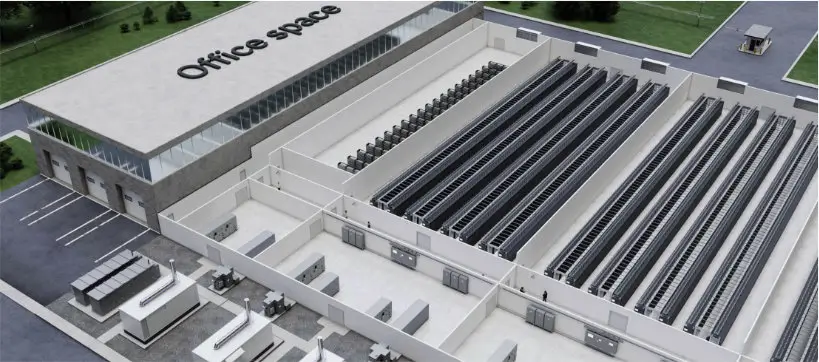

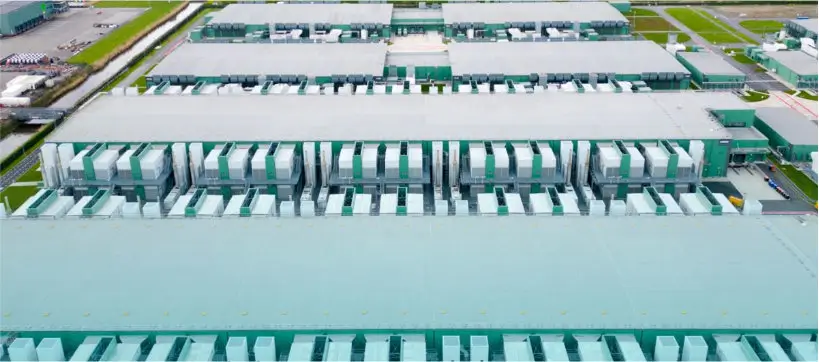

Implemented in All types of Data Centers
Suitable for all types of data centers, our metering and protection solutions are widely adopted by data center operators. Built to meet industry standards, they enable precise energy monitoring and robust electrical fault protection.
