Technology of Electrical Automatic
Metering & Protection for Switchgear
Are you a switchgear manufacturer, system integrator, distributor, or facility operator? We offer the right metering and protection solutions to fit your requirements. Contact our engineers today for expert advice.
Discover Our Broad Portfolio for Switchgear

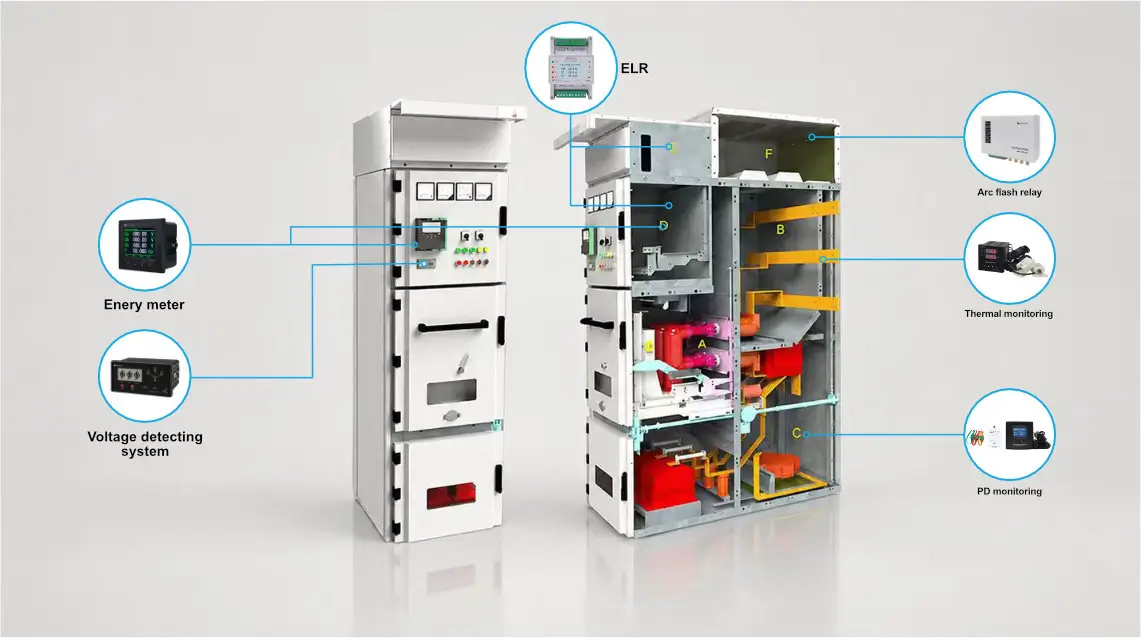

Switchgear consists of multiple independent compartments, including busbar compartment, circuit breaker compartment, cable compartment and control compartment. These key areas face common risks such as overheating, insulation deterioration, internal arc faults, leakage hazards and damp condensation. We supply dedicated monitoring and protection devices to safeguard every section of the switchgear.
Our products cover all functional areas within switchgear, including power energy metering, arc flash protection, partial discharge monitoring, earth leakage protection, live voltage detection, temperature monitoring and humidity anti-condensation control.

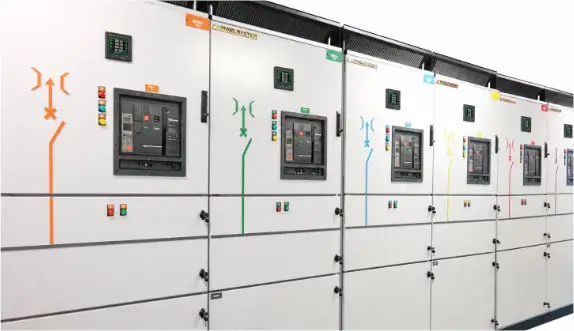

LV switchgear
LV switchgear is commonly used for commercial distribution, data center secondary power and EV charging infrastructure. It suffers unreliable energy data, undetected DC leakage, unmonitored joint overheating and condensation-related failures. Blue Jay can provide comprehensive energy monitoring and protection to eliminate these risks.
- Multifunction Power Meter: Delivers real‑time performance monitoring, detailed energy analysis & accurate cost allocation for LV switchgear.
- Temperature monitoring: Continuous temperature monitoring Busbar joints & cable lugs inside LV switchgear.
- Earth Leakage relay: Detecting undetected AC and smooth DC leakage in LV switchgear.
- Electrical enclosure dehumidifier: Prevent condensation inside LV cabinets.
MV switchgear
Medium‑voltage switchgear has HV primary compartments and a dedicated LV compartment for metering, protection & control. Blue Jay provides a full set of supporting devices for MV switchgear energy management and safety protection.

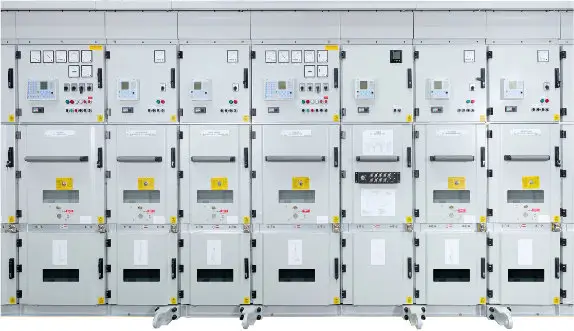

HV switchgear

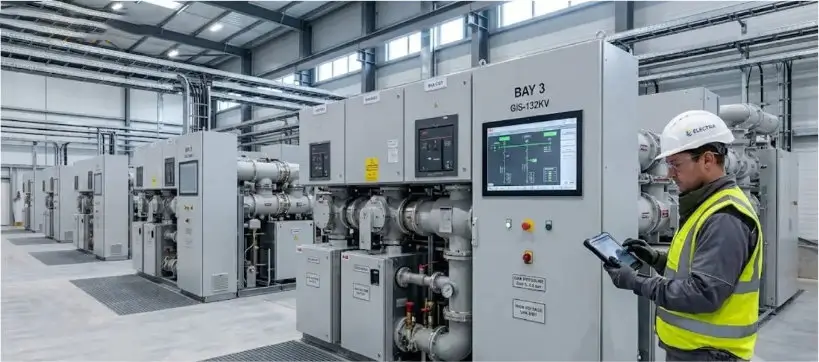

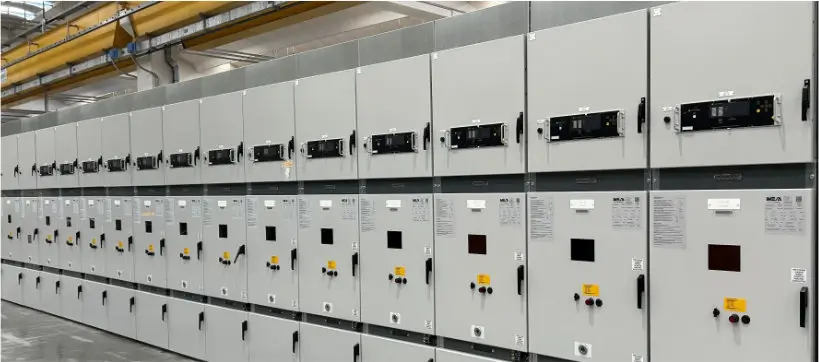

HV switchgear (GIS / AIS) is deployed in utility transmission and main substation systems. Field maintenance faces severe safety risks due to unclear primary circuit live status. ur HV live voltage detecting system delivers accurate live-status indication for primary circuits, eliminating operator misoperation risks and serving as the core safety guarantee for all HV switchgear maintenance.
Our Intelligent solutions
Find out how we are driving metering and safety forward with our customers and partners/Examples of customers who successfully use our meters or relays.
Related Products
ELR-CH16 Multi-Channel Earth Leakage Relay
ELR-CH16 Multi-channel earth leakage relay is designed for measuring leakage current and operating temperature in TT and TN-S systems. It
AFR-4 Arc Flash Detection Relay with 4 Channels
AFR-4 arc flash detection relay is a versatile and independently operating device for bay based protection. It supports 4-channels arc
WSK-48 Series Digital Temperature And Humidity Controller
WSK-48 series digital temperature and humidity controller is a measuring device for temperature and humidity control. This digital temperature humidity
DH6-200 Sheet Metal Dehumidifier for Cabinet
The DH6-200 Sheet Metal Dehumidifier for Cabinet reduces the water content in the air, and the relative humidity and absolute
SCM-TP1000 Temp & PD Monitoring System
The SCM- TP1000 is an integrated monitoring device combining partial discharge (PD) detection and wireless temperature sensing, developed for medium
ALM-CH30 30 Channels Fault Annunciator
ALM-CH30 is a 30-channel fault annunciator with dimensions of 144x144mm panel mounting, specially designed for applications in energy and automation
CVI-2R Voltage Detecting and Indicating System
The CVI-2R voltage detecting and indicating system is designed for continuous indication of voltage on medium-voltage switchgear busbars. It provides
