Blue Jay’s electrical transducer is a device that performs signal conversion on the collected power, converts the measured power parameters into DC current or voltage or digital signals in a linear ratio, and isolates the output. Our power transducers can measure parameters including AC voltage, current, active power, reactive power, active energy, reactive energy, frequency, phase, power factor, DC voltage, current, etc. These power transducers can be Widely used in electric power, petroleum, coal, metallurgy, railway, municipal and other departments of electrical measurement, automatic control, and dispatching systems.
As a professional current transducer manufacturer in China, we can offer programmable transducers（QPPX）, AC/DC current transducers, voltage transducers(QP-A/V(T), and AC/DC power transducers(QP-X), and so on. All electrical transducers are with UL and CE certifications.
Showing all 4 results
Blue Jay’s electrical transducer is a device that performs signal conversion on the collected power, converts the measured power parameters into DC current or voltage or digital signals in a linear ratio, and isolates the output. Our power transducers can measure parameters including AC voltage, current, active power, reactive power, active energy, reactive energy, frequency, phase, power factor, DC voltage, current, etc. These power transducers can be Widely used in electric power, petroleum, coal, metallurgy, railway, municipal and other departments of electrical measurement, automatic control, and dispatching systems.
As a professional current transducer manufacturer in China, we can offer programmable transducers（QPPX）, AC/DC current transducers, voltage transducers(QP-A/V(T), and AC/DC power transducers(QP-X), and so on. All electrical transducers are with UL and CE certifications.
-

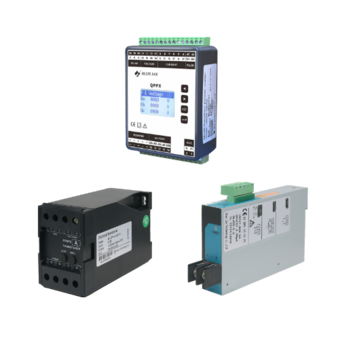

QPPX Programmable Transducer
Read more -
QP-A/V Electrical Transducer
Read more -
QP-A/V(T) AC DC Current Voltage Transducer
Read more -
QP-X AC Power Transducer
Read more

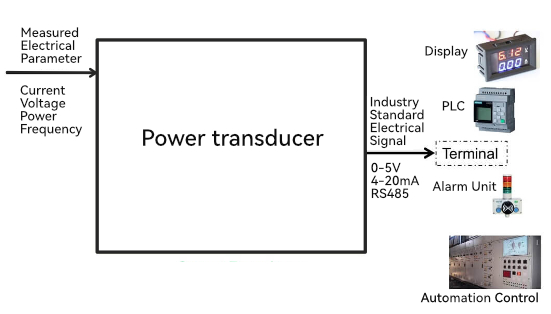

Feature of Electrical Transducer
Specification of Electrical Transducer
| Item | Parameter |
| Signal Inputs | Overload: 10 times of rated current 2 times of rated voltage |
| Measurment Output: 4~20mA | |
| Ripple: <1% peak to peak | |
| Measurement Accuracy | class: 0.5 class |
| Frequency influence: <0.02% per Hz | |
| Load influence: <0.25% of F.S. for specific load range | |
| Auxiliary Supply | Rating: 85-265Vac/dc, Optional 12V, 24V, 48VDC |
| Comsuption: <3VA | |
| Galvanic isolation between I/O and AUX | Test voltage: 2KV RMS 50Hz for 1 minute |
| Impulse: 4KV 1.2/50µsec waveform | |
| Temperature requirements | Operating: -10~55C |
| Storage: -40~70C, 20 ~ 93%RH; Noncondensing |
