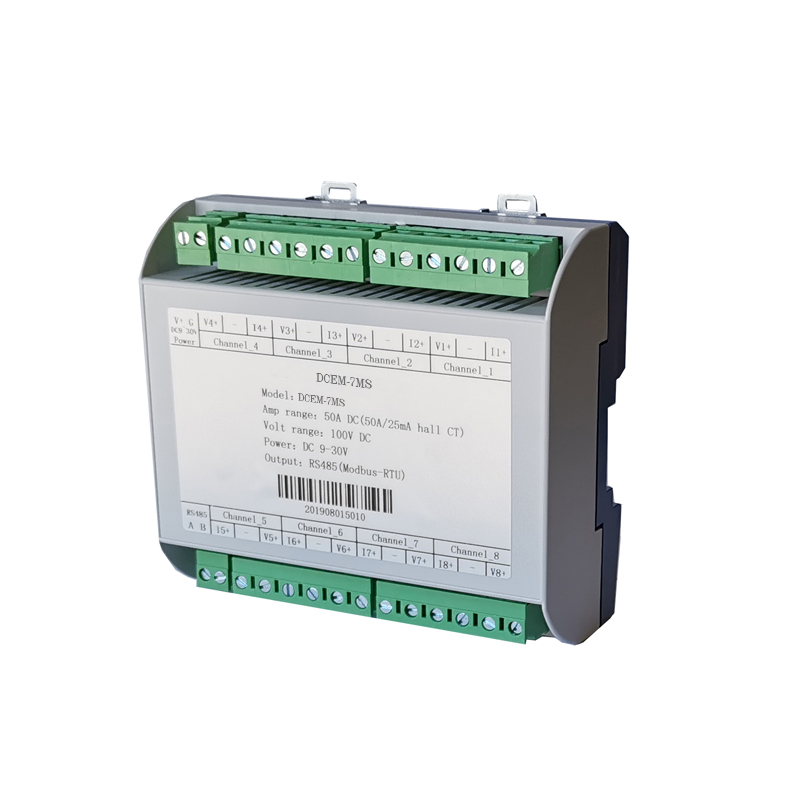

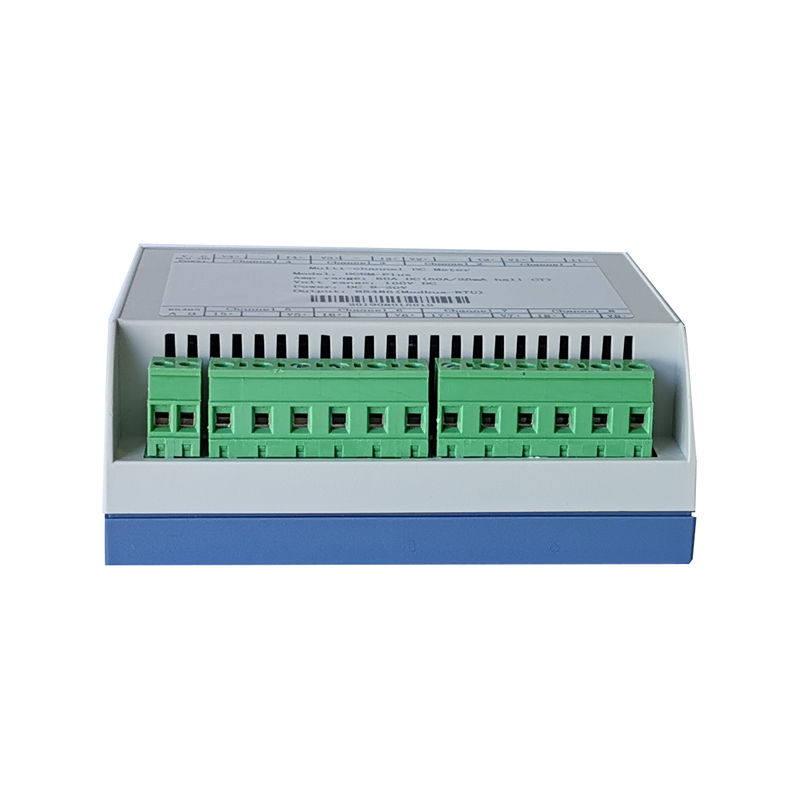

DCEM-7MS (DCPM) Multi-channels Isolated DC Meter

DCEM-7MS (DCPM) Multi-channels Isolated DC Meter

DCPM Multi-channels Isolated DC Meter, a new design din-rail mounting DC metering device, provides standard 8 channels, max 24 channels isolated measurement, and collects DC circuit basic parameter value (Volt, Amp, Power, Energy consumption & generate). Besides, it uses high-speed isolation devices to isolate the signals of each channel. This DC voltage monitor uses an RS485 MODBUS line to send data to the site server or remote SCADA. Besides, it uses high-speed isolation devices to isolate the signals of each channel.

The DCPM multi-circuit dc energy meter is an extremely low data refresh interval (20ms per cycle), suited for field devices’ power circuit condition monitoring such as Solar plant and Telecom server room, BMS applications in UPS systems, etc.

Category:

DCPM Multi-channels Isolated DC Meter, a new design din-rail mounting DC metering device, provides standard 8 channels, max 24 channels isolated measurement, and collects DC circuit basic parameter value (Volt, Amp, Power, Energy consumption & generate). Besides, it uses high-speed isolation devices to isolate the signals of each channel. This DC voltage monitor uses an RS485 MODBUS line to send data to the site server or remote SCADA. Besides, it uses high-speed isolation devices to isolate the signals of each channel.

The DCPM multi-circuit dc energy meter is an extremely low data refresh interval (20ms per cycle), suited for field devices’ power circuit condition monitoring such as Solar plant and Telecom server room, BMS applications in UPS systems, etc.

Category:

DCPM DC Meter Features

  • Din-rail mounting design & compact size
  • 8 channels metering loop, each mertering channel is isolated
  • Provide DC voltage, current, power, energy value in one
  • Record energy value in absolute value or signed value
  • Accept customerized modify

Specification

Power Supply 9~30Vdc
Current Input Signal Current 1mA, 20mA, 100mA, 1A, 5A, 10ADC direct access
Over 10A use hall CT or Shunt
Voltage Input Signal 75mV, 1V, 5V, 10V, 50V, 100V, 250V, 400V, 500VDC
Sampling ratio 20ms, 40ms, 60ms, 80ms, 100ms, 400ms, 1000ms adjustment, default 100ms
Drive ability Voltage impedance> 2kΩ/V
Current input terminal voltage drop is less than 0.15V
Accuracy U / I 0.2%fs
P 0.2%fs
Energy 0.5%fs
Communication Port RS485 (2/3 wires half duplex)
Modbus RTU mode
Isolation withstand voltage >2500V DC
Alarms Outputs (Optional) NO contactor, load capacity 250VAC/30VDC/5A

Selectable Models

DCPM 8 channels metering
Hall CT or shunt connected

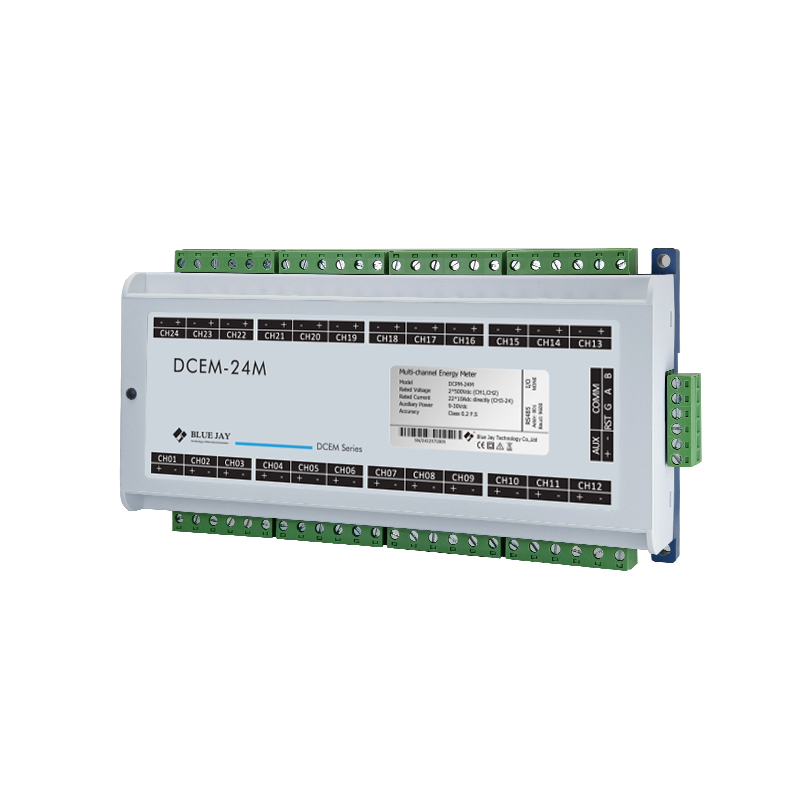

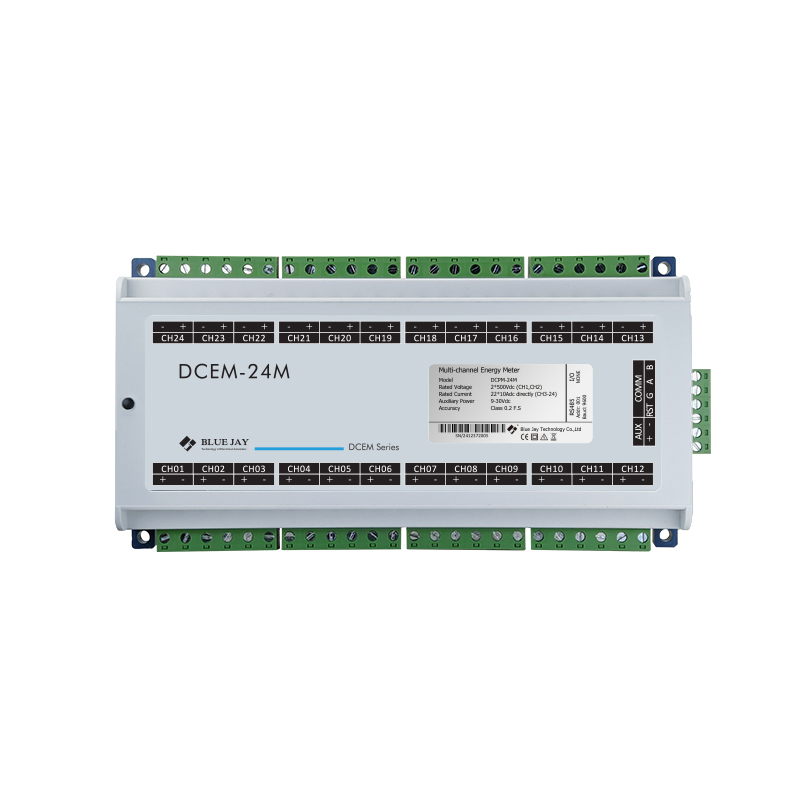

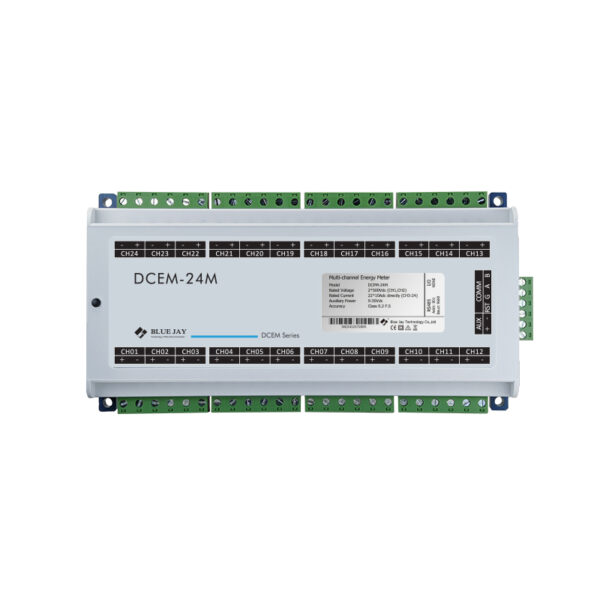

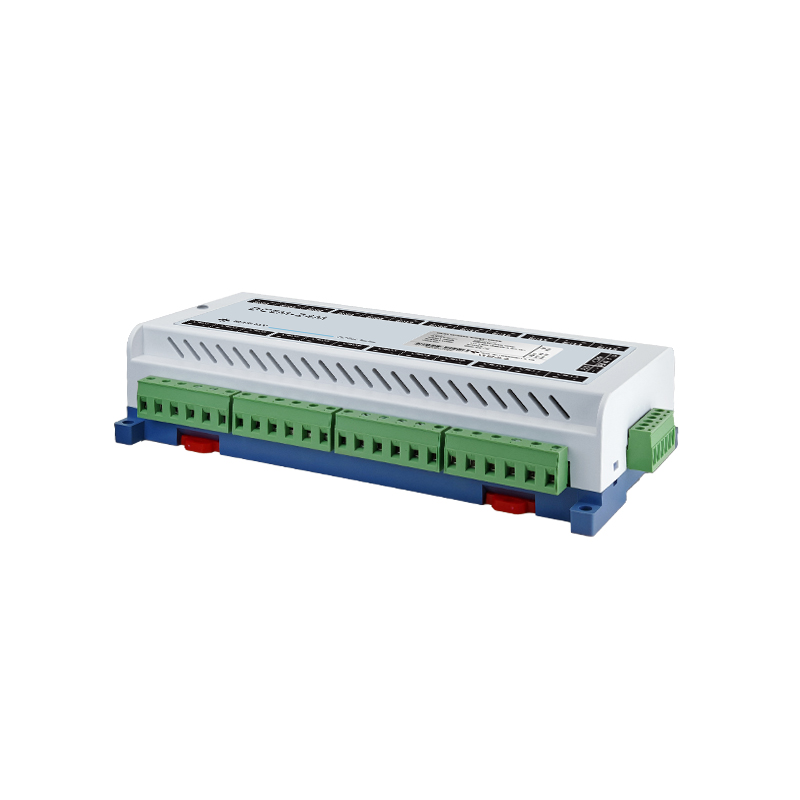

DCPM-24 24 channels metering
Hall CT or shunt connected
