Technology of Electrical Automatic

Multi Channel Energy Meter

– Up to 8 three-phase or 24 single-phase circuits for real-time metering.
– Ideal for multi-tenant facilities such as commercial and office buildings, shopping centers, industrial plants, and data centers.
– Conforms to IEC specifications.

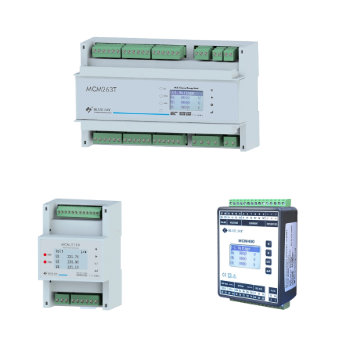

Blue Jay multi channel energy meter

What Is Blue Jay Multi Channel Energy Meter?

The Blue Jay MCM series multi-channel energy meter is specifically designed for feeder loop metering. This multi channel power meter is primarily utilized for the measurement of electrical grid parameters in three-phase or single-phase circuits, encompassing voltage, current, power, frequency, electric energy, demand, extreme values, and harmonics.

It comes equipped with RS485 communication, active or reactive pulse output, and multiple digital input ports. Featuring a modular design and convenient DIN rail installation, some multi-channel energy monitor configurations are available with an LCD display, 6 digital inputs, 2 digital outputs, and an optional Ethernet interface. Our multi-circuit energy meters are fully customizable, allowing customers to tailor functional modules to their precise needs.

MCM263T 6 Channel CT energy meter

MCM263T 6 Branch Circuit Power Meter

The MCM263T branch circuit power meter is a high-performance energy measurement device designed for the industrial system or equipment. This multi-cir…
MCM211D Multi-channel Single-phase Energy Meter

MCM211D Multi-channel Single-phase Energy Meter

MCM211D multi-channel single-phase energy meter is specifically designed for industrial environments, offering one metering function capable of measur…
Multi Circuit Energy Monitor MCM400 Multi Circuit Energy Monitor energy meter sub meter

MCM400 Multi Circuit Energy Monitor

MCM400 Multi Circuit Energy Monitor is designed for commercial and residential power circuit sub-metering projects such as Multi-Tenant Submetering. T…
MCM283D 8-Channel AC Utility Submetering

MCM283D 8-Channel AC Utility Submetering

The MCM283D Utility Submetering is a high-performance measurement solution designed for residential billing and industrial applications. It supports 8…
MCM283R energy monitoring systems for commercial buildings

MCM283R 8-circuit Energy Monitoring Systems for Commercial Buildings

The MCM283R energy monitoring systems for commercial buildings is built with 8 main ciruits. It measures up to 8 three-phase circuits or 24 single-pha…
MCM223T 2-Channel Multi Tenant Metering

MCM223T 2-Channel Multi Tenant Metering

MCM223T multi tenant metering is the energy management metering for multi-point power solutions for metering, energy readings, logging and multi-tarif…
MCM243d 4-Channel Residential Energy Meter

MCM243d 4-Channel Residential Energy Meter

The MCM243d 4-channel residential energy meter is an excellent residential sub-metering designed for residential billing management, Household billing…
MCM2600 multi channel power meter

MCM2600 Multi Channel Power Meter

MCM2600 multi channel power meter is designed for Industrial or commercial branch circuit metering projects. The MCM2600 series branch circuit power m…
MCM2400 Multi Circuit Energy Meter

MCM2400 Multi Circuit Energy Meter

MCM2400 Multi Circuit Energy Meter is designed for commercial and residential power circuit sub-metering projects. This Multi-Circuit Energy Meter inc…

Your Reliable Branch Circuit Power Meter Manufacturer in China

Blue Jay designs and manufactures multi-load metering solutions tailored for multi-tenant facilities and complex systems. Our versatile multi-circuit submeters range from 1 to 24 channels, simplifying billing management and cost allocation for diverse applications.

Blue Jay, a leading Chinese manufacturer with over a decade of expertise in multi-load metering solutions, provides multi-channel energy meters designed to precisely address the complex metering needs of multi-circuit, multi-tenant, and multi-system setups. We also offer custom service to suit your specific needs.

Cost-effective Sumetering: A single multi-circuit meter can effectively replace 2-24 traditional submeters.

Multi-circuit metering & monitoring simultaneously: energy management for up to 24 multiple circuits.

Customize your branch circuit metering Configuration from current input, communication, DI, DO, logos, etc.

Customize Your Multi Channel Energy Meter Configuration

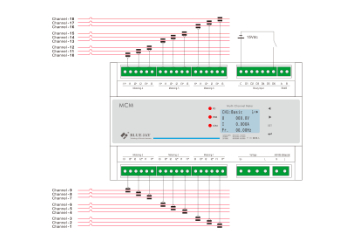

custom channel number for your submeter

Tailor your multi-circuit meter's channel number

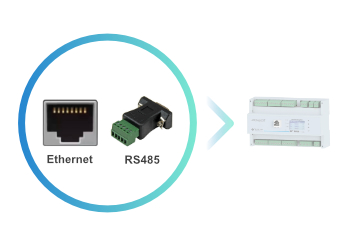

Customize your submeter communication interface

Customize your multi-circuit meter's communication

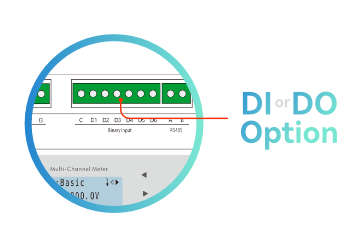

custom your DO DI number for your meter

Select Your multi-circuit meter's DI and DO Options

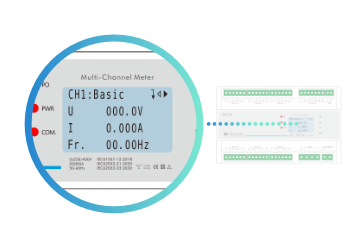

customize your submeter UI

Configure multi-loop meter's UI & measuring parameters

Main Function of Multi Channel Energy Meter

Blue Jay‘s multi-circuit power meters are engineered for accurate, simultaneous monitoring of multiple circuits within a distribution panel, collecting granular energy data from various tenants or systems. By integrating multiple meters into a single unit, these submeters offer efficient energy management at an affordable cost per metering point.

Real-time Measuring Parameter: monitoring current, voltage, active power, reactive power, apparent power meter, power factor, frequency;

Energy Consumpution/generation: Active Energy & Reactive Energy;

Communication: RS485, Modbus RTU protocol;

Multiple Current Input Option: Monitoring loads from low-amperage circuits to high-amperage mains. Offering versatile current transformer input options, including 333mV, Rogowski (RCT), 80mA, or 100mA, etc.

LCD Display: Submeters feature an embedded LCD panel for an easy-to-read display of important energy information at a glance.

multi channel energy meter feature

Application of Multi-Circuit Submeter

Multi-tenant submetering & billing for Commercial, Municipal, Industrial, and utility buildings or offices.

Multi-circuit submetering of motors, capacitor banks, transformers, and distribution feeders.

Energy metering in Medium and low voltage systems, or Alarm station with voltage-free digital inputs

Power quality analysis & Harmonic measurement, Remote data reading
