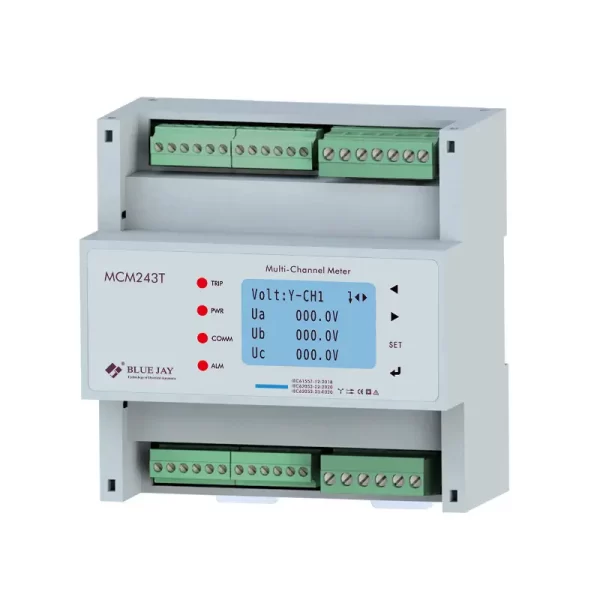

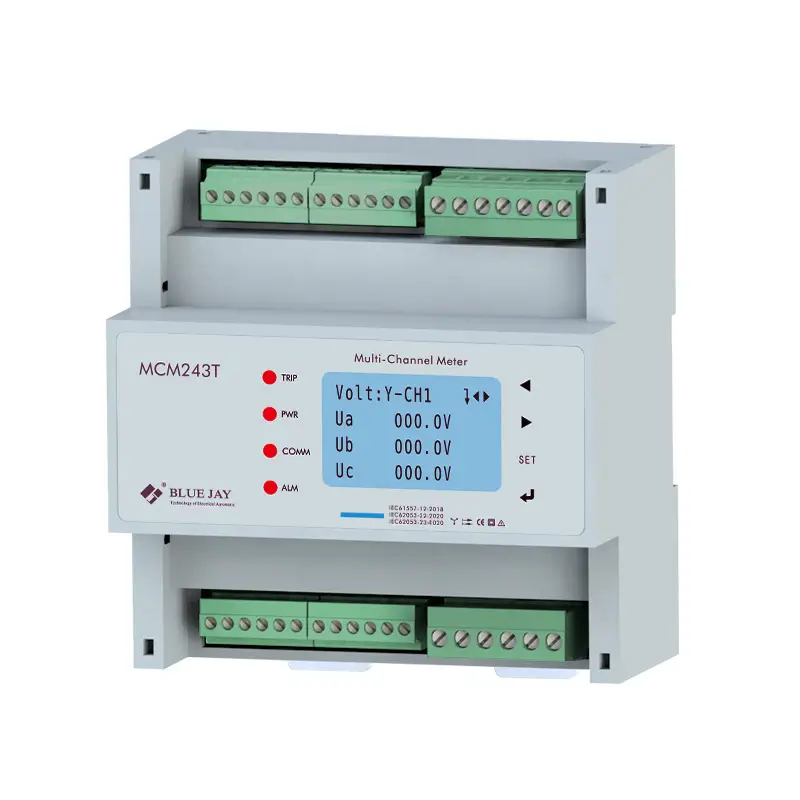

The MCM243T Multi-Channel Energy Meter is a high-performance metering solution integrating multi-circuit measurement, energy monitoring, and power quality analysis. A single device supports real-time monitoring of 4 branch circuits, helping reduce installation space and metering cost per point in commercial, industrial, and multi-user power distribution systems.
The MCM243T comes standard with RS485/ Modbus RTU communication, 1 pulse output (PO), and 1 SPDT relay output (DO). It also integrates advanced functions including Time-of-Use (TOU), demand measurement, harmonic analysis up to the 31st order, SOE event recording, RTC, and current/voltage unbalance monitoring, providing comprehensive data for energy management, load analysis, and power quality assessment.

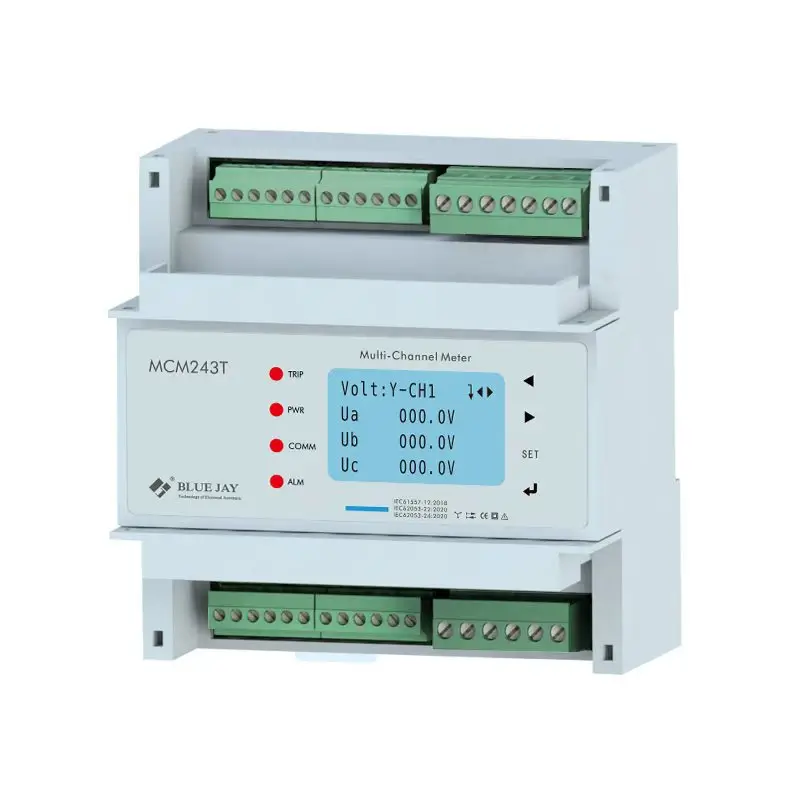

The MCM243T Multi-Channel Energy Meter is a high-performance metering solution integrating multi-circuit measurement, energy monitoring, and power quality analysis. A single device supports real-time monitoring of 4 branch circuits, helping reduce installation space and metering cost per point in commercial, industrial, and multi-user power distribution systems.
The MCM243T comes standard with RS485/ Modbus RTU communication, 1 pulse output (PO), and 1 SPDT relay output (DO). It also integrates advanced functions including Time-of-Use (TOU), demand measurement, harmonic analysis up to the 31st order, SOE event recording, RTC, and current/voltage unbalance monitoring, providing comprehensive data for energy management, load analysis, and power quality assessment.

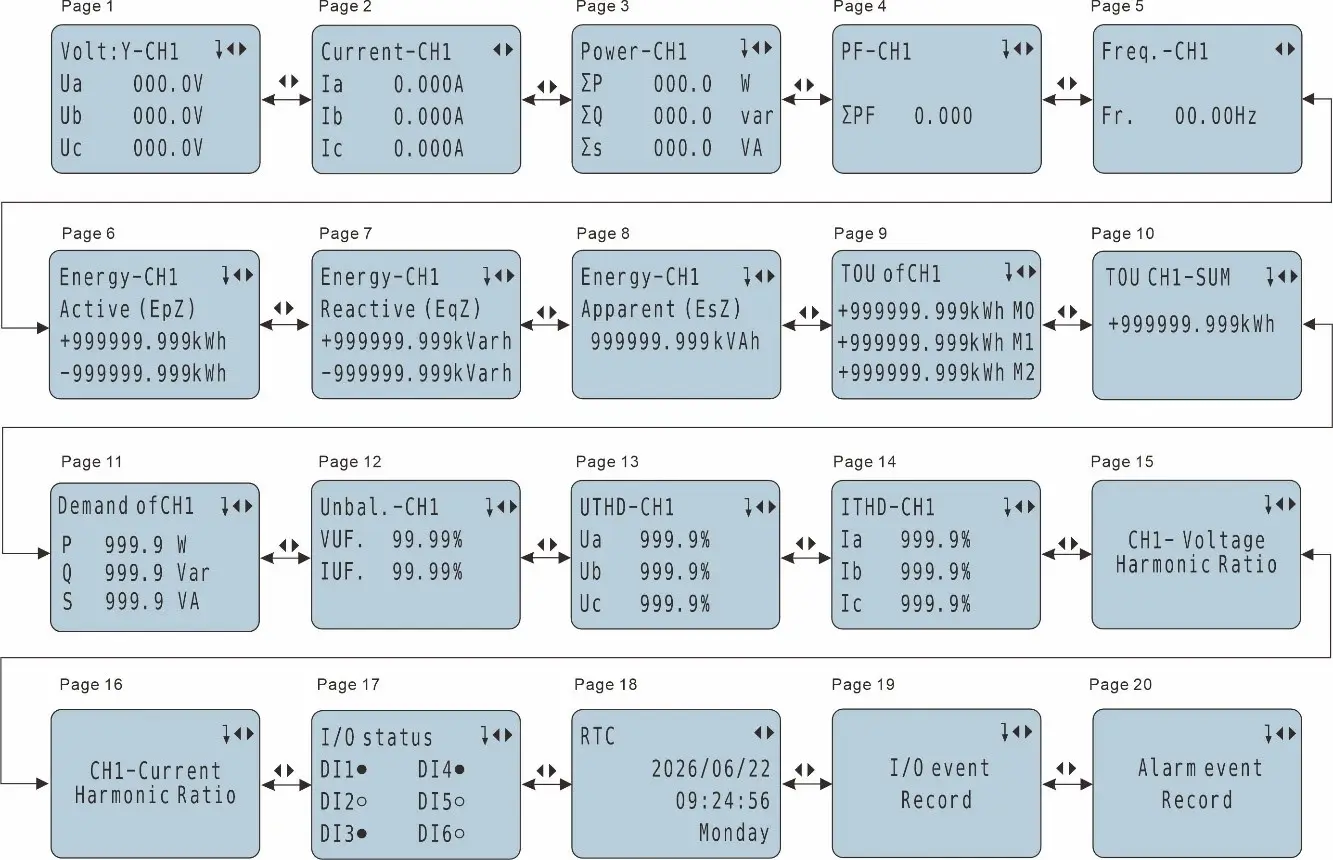

| Function | Parameter | ||
| Real-time Parameter | Voltage | Ua, Ub, Uc / Uab, Ubc, Uca | ● |
| Current | Per channel / Per phase | ● | |
| Power | Per channel / Per phase | ● | |
| Active/ Reactive Power | Per channel / Per phase | ● | |
| Apparent Power | Per channel / Per phase | ● | |
| Power Factor | Per channel / Per phase | ● | |
| Frequency | Per channel / Per phase | ● | |
| Energy | Active Energy + | Per channel | ● |
| Reactive Energy + | Per channel | ● | |
| Active Energy – | Per channel | ● | |
| Reactive Energy – | Per channel | ● | |
| TOU | 4 Tariffs, 12 Segment | ● | |
| Power Quality | THD | UTHD, UTOHD, UTEHD, UTHFF, UCF ITHD, ITOHD, ITEHD, IKF |
● |
| Individual Harmonic | 2nd-31st | ● | |
| Voltage Unbalance | / | ● | |
| Current Unbalance | / | ● | |
| Power Demand | Last three month demand record | ● | |
| Voltage Deviation | / | ○ | |
| Alarming | Virtual alarm | 5 Alarm trig | ● |
| I/O | 1PO | Default 5000imp/kWh VCC<48V, Iz<50mA |
● |
| 1DO | 5A@250Vac / 5A@30Vdc | ● | |
| DI | Ri<500Ω open, Ri>100kΩ Closed | ○ | |
| Communication | RS485 | RS485, Modbus-RTU | ● |
“●” for Standard functions; “○” for optional functions;

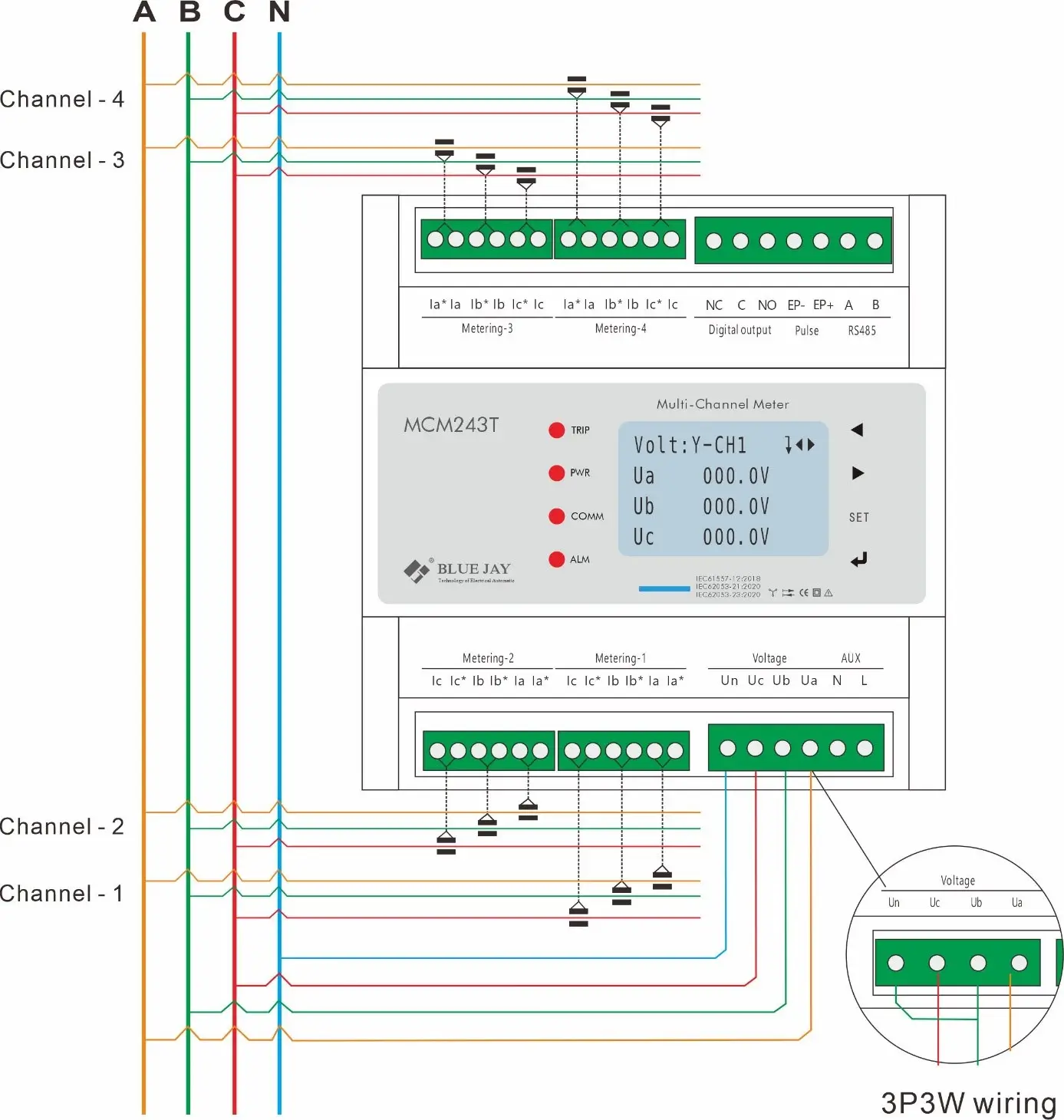

-. Basic parameter
| Working power | |
| Power supply | AC/DC 85-265V, 50/60Hz |
| Maximum power consumption | <5W |
| Input | |
| Current | Rated ../100mA (can customized 333mV/ 1A/5A) |
| Voltage | Rated 20~380V (need confirm before order) |
| Frequency | 50/60Hz |
| Current overload | 1.2 times rated continuous; 5 seconds for 10 times of the rated |
| Voltage overload | 30 seconds for 2 times of the rated |
| Reference standard | |
| Basic electricity | IEC 61557-12: 2018 |
| Active energy | IEC 62053-22: 2020 |
| Reactive energy | IEC 62053-24: 2020 |
-. Accuracy standard
| Parameter | Accuracy | A phase | B phase | C phase | All |
| Voltage
Current Active power Reactive power Power factor Active energy Reactive energy Frequency |
0.5s
0.5s 0.5s 1.0 0.5 0.5s 1.0 0.1 |
V1
A1 W1 var1 PF1
|
V2
A2 W2 var2 PF2
|
V3
A3 W3 var3 PF3
|
W var PF Wh varh Hz |
