GYDCG Series DC Insulation Monitor

GYDCG Series DC Insulation Monitor

The GYDCG series DC insulation monitor has the function of insulation monitoring start and stop, insulation monitoring can be real-time monitoring of positive and negative poles to the ground insulation resistance. The monitoring result is not affected by DC voltage changing, not affected by the positive and negative poles insulation resistance symmetry.

  • Monitor the insulation resistance value of the positive and negative poles of the 100~1000Vd.c. DC floating system to the ground.
  • Resistance measurement range 0KΩ~10MΩ.
  • Detect DC voltage value, range 0~1000Vd.c.
  • Use RS485 for communication and customize the protocol.
  • DC voltage reverse connection alarm function.
Category:

The GYDCG series DC insulation monitor has the function of insulation monitoring start and stop, insulation monitoring can be real-time monitoring of positive and negative poles to the ground insulation resistance. The monitoring result is not affected by DC voltage changing, not affected by the positive and negative poles insulation resistance symmetry.

  • Monitor the insulation resistance value of the positive and negative poles of the 100~1000Vd.c. DC floating system to the ground.
  • Resistance measurement range 0KΩ~10MΩ.
  • Detect DC voltage value, range 0~1000Vd.c.
  • Use RS485 for communication and customize the protocol.
  • DC voltage reverse connection alarm function.
Category:

Overview

The GYDCG series insulation monitoring device has three types: DCG-UBCH1, DCG-UBCH2, and DCG-UBCH2-LZ. The DCG-UBCH1 and DCG-UBCH2-LZ are suitable for EV DC charging systems, photovoltaic systems, energy storage systems, DC power grids, and other DC systems under 1000V. The DCG-UBCH2 DC insulation monitor is special for electric vehicle DC charging system.

Common Feature of DCG series DC Insulation Monitor

  • Fully functional

Integrated function: charging pile voltage measurement, insulation resistance monitoring, car side voltage measurement, current measurement, and many other measurement functions.

  • Wider power supply range

Compatible with 12V or 24V power supply, power supply range 10~30V.

  • Wider insulation monitoring range

Insulation resistance monitoring can be realized in the DC range of 100V~1000V, and the resistance monitoring range is
0KΩ~10MΩ.

  • Real-time monitoring of insulation resistance

When the insulation monitor is turned on, it will continuously monitor the insulation resistance of the positive and negative poles to ground and is not affected by the insulation resistance of the positive and negative poles. The influence of resistance symmetry is eliminated, and the monitoring data is updated in real time.

  • Higher reliability

In the case of low-frequency fluctuations in DC voltage, the insulation resistance monitoring results will not be affected.

  • The internal resistance to ground is larger

The internal resistance of the insulation monitoring module to ground is >600KΩ.

  • Faster monitoring speed, adaptive to ground capacitance

Under the condition that the capacitance of the positive and negative poles to ground does not exceed 3uF respectively, rapid insulation resistance monitoring is achieved
The monitoring period is between 0.7 seconds and 2.5 seconds. The larger the capacitance to ground, the longer the monitoring period.

  • Higher monitoring accuracy

When the capacitance to ground is small, the monitoring accuracy can be within 1%.

  • Parameter setting is more convenient.

All communication parameters can be set using dial switches (including communication address, baud rate, parity and even
Verification method).

  • Single channel and dual-channels type optional

The DCG-UBCH1 are single -channel insulation monitoring deive. The DCG-UBCH2 and DCG-UBCH2-LZ are dual-channels insulation monitoring device.

  • Monitoring of the DC circuit bus bar insulation resistance RF to earth.
  • Simple device setting by DIP switch.
  • 35 mm din rail mounting or screwing fixing mounting



Working Principle of GYDCG Series DC insulation monitoring device
The GYDCG series DC insulation monitor adopts the bridge method circuit, as shown in the figure 1. Take DC1 road as an example, when the insulation monitoring function is turned off, both the positive and negative terminal relays K1 and K2 are disconnected. At this time, DC voltage and insulation resistance monitoring will not be provided. When the you start work, the K1 and K2 relays are closed, and the DC voltage collection and insulation monitoring resistance calculation are performed on this circuit, and the corresponding DC voltage and insulation resistance values can be read. The same applies to DC2. Dual independent control. When both insulation monitoring functions are turned off, the K5 relay is disconnected and the module is disconnected from the earth.

GYDCG DC insulation monitor working principle
                                                                                Figure 1

Difference between GYDCG series insulation monitor

Function DCG-UBCH1 DCG-UBCH2 DCG-UBCH2-LZ
Optional car-side DC voltage monitoring function Yes Yes No
Communication With RS485, Modbus-RTU RS485, Private protocol RS485, Modbus RTU
Insulation monitoring channel single-channel Dual-channel Dual-channel
Application Electric vehicle DC charging systems
Photovoltaic systems
Energy storage systems
DC power grids
Electric vehicle DC charging systems
Photovoltaic systems
Energy storage systems
DC power grids
special for electric vehicle DC charging system

Dimension of DCG series DC Insulation Monitor

DCG-UBCH2 DCG-UBCH2-LZ insulation monitoring device dimension
DCG-UBCH2 DCG-UBCH2-LZ Dimension
DCG-UBCH1 insulation monitoring device dimension
DCG-UBCH1 dimension

Specification

Model DCG-UBCH1 DCG-UBCH2&DCGUBCH2-LZ
Detect channels Single channel Dual channels
DC voltage range 0~1000V
Power supply  10~30VDC
Insulation resistance range 1KΩ~10MΩ
Insulation monitoring accuracy ≤3KΩ+10%(100-300V)
≤3KΩ+5% (300-1000V)
Measurement accuracy ≤2V+0.3%
Storage temperature -40°C ~ 125°C
Operating temperature & humidity -40°C ~ 70°C, 85%
Off-line pressure test  <2mA
Communication RS485 Modbus/Private protocol
Installation type Din Rail mount

Selectable models

GYDCG-UBCH1

    • Single-chanel monitor
    • DC voltage continuous detect
GYDCG-UBCH1MV
    • With E-vehicle side voltage
GYDCG-UBCH1MC
    • With current shunt measurement
GYDCG-UBCH1MVC
    • With E-vehicle side voltage
    • With current shunt measurement
GYDCG-UBCH1MVCA
    • With E-vehicle side voltage
    • With current shunt measurement
    • With Alarm functions
GYDCG-UBCH1-LZ
    • With RS485, Modbus-RTU
GYDCG-UBCH2

    • Dual-chanels insulation monitor
    • DC voltage only detect when insulation monitoring
GYDCG-UBCH2
    • With private protocol
GYDCG-UBCH2-LZ
    • With RS485, Modbus-RTU

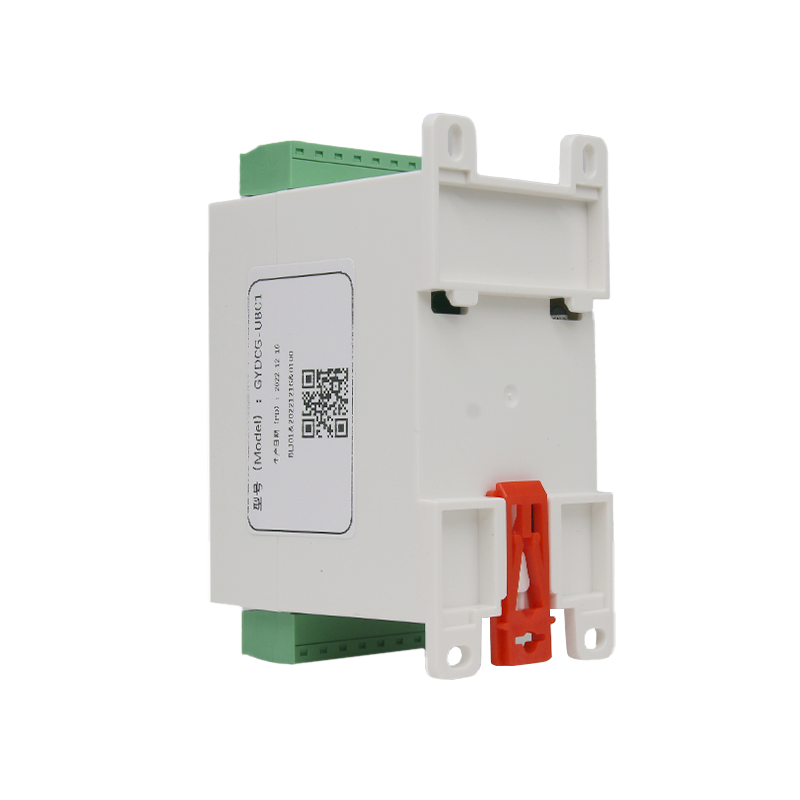

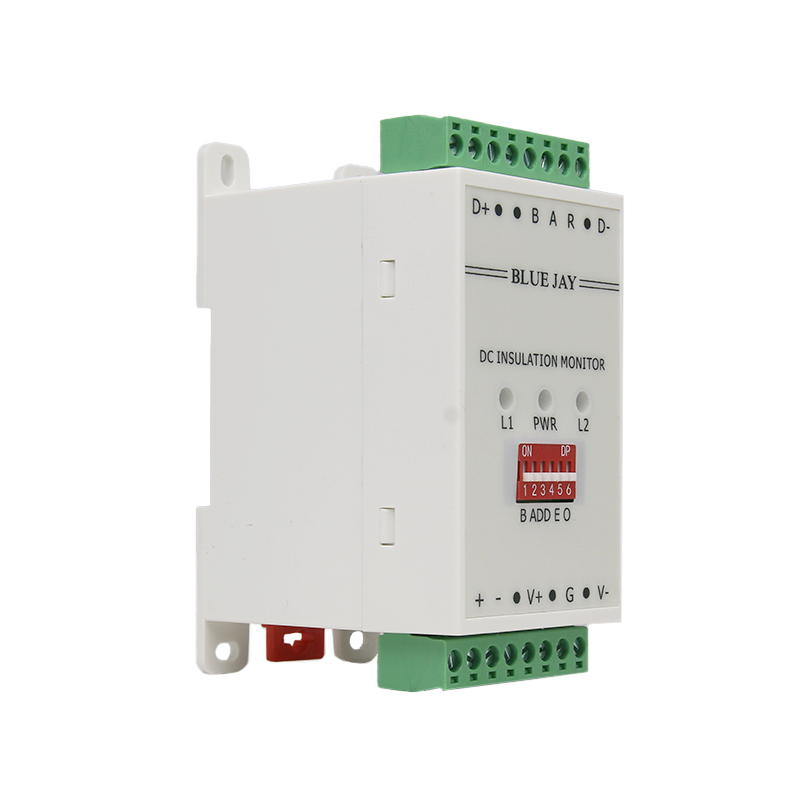

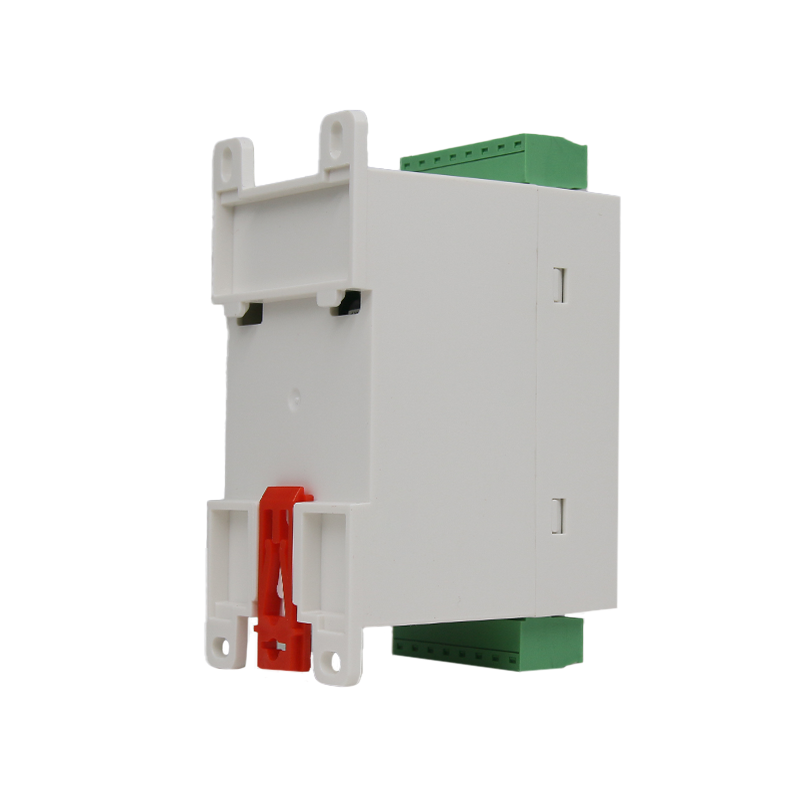

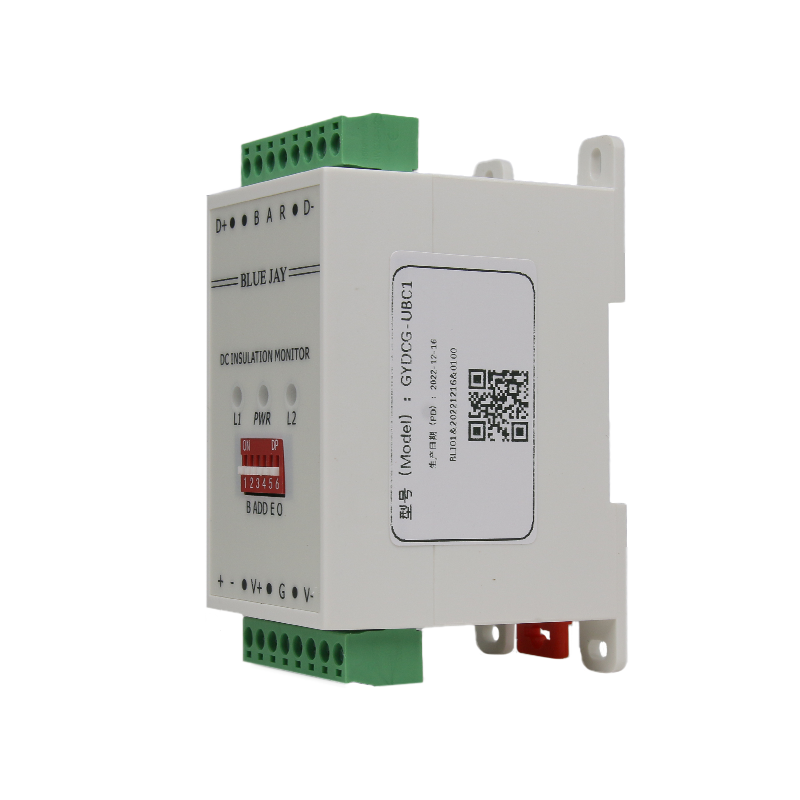

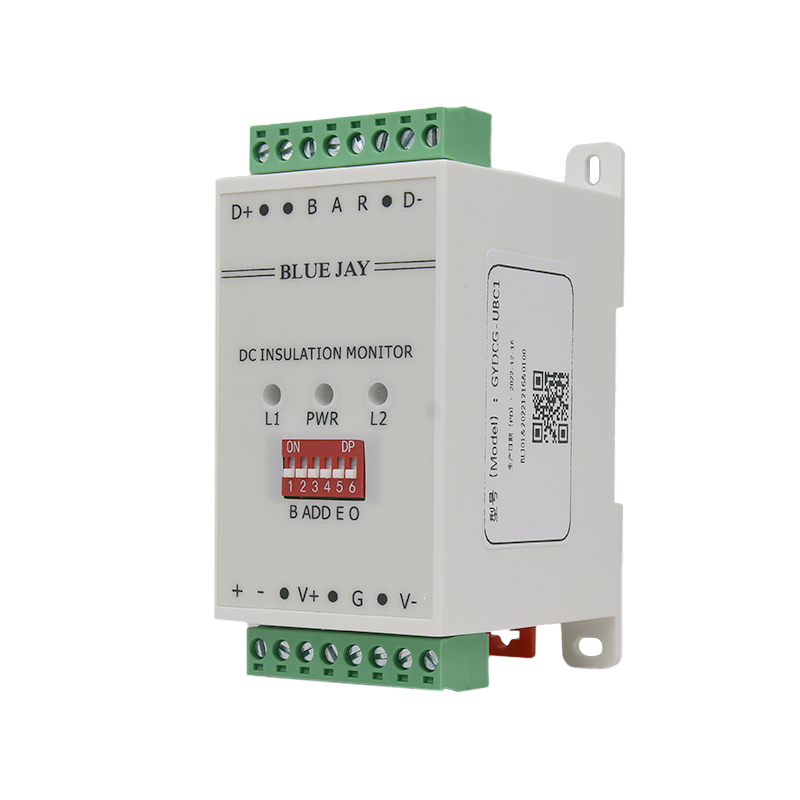

GYDCG-UBC1

    • Single-circuit monitoring
    • DC voltage continuous detect
    • Low withstand voltage
GYDCG-UBC1X
    • With capacitor discharge switch
GYDCG-UBC1MV
    • With E-vehicle side voltage
GYDCG-UBC1MVX
    • With E-vehicle side voltage
    • With capacitor discharge switch
GYDCG-UBC1-HRLZ
    • High withstand voltage
    • With RS485, Modbus-RTU
