DH2-60 ABS intelligent Dehumidification Device adopts semiconductor refrigeration technology to develop an ultra-small, high-efficiency, and energy-saving dehumidifier dehumidification and anti-condensation product, so that the moisture in the humid air inside the electric cabinet is continuously condensed into water on the surface of the condensation plate of the dehumidifier and then discharged out of the cabinet, quickly Reduce the humidity in the cabinet.
DH2-60 ABS intelligent Dehumidification Device adopts semiconductor refrigeration technology to develop an ultra-small, high-efficiency, and energy-saving dehumidifier dehumidification and anti-condensation product, so that the moisture in the humid air inside the electric cabinet is continuously condensed into water on the surface of the condensation plate of the dehumidifier and then discharged out of the cabinet, quickly Reduce the humidity in the cabinet.
| Working power | |
| Power supply | 85V~265VAC/DC, 50Hz |
| Peltier rated power | 60W |
| Air volume flow | 70m3/h |
| Dehumidifying capacity | 250ml/Day, @35°C,90%RH |
| Measurement and ability | |
| Humidity monitor range | 20%RH~98%RH |
| Sensor accuracy | ±5%RH |
| Dehumidify start threshold | 45%RH~98%RH, Default 65%RH |
| Environment temperature | 5~60°C |
| Temperature monitor range | -40~80°C |
| Sensor accuracy | ±1.0°C |
| Heater start threshold | 1~55°C, Default 5°C |
| Heater power | 50~500W optional |
| Heater contact capacity | Dry contact, NO, 5A@250Vac/ 30Vdc |
| Other | |
| Drain hose | Silicone, OD 10 mm, ID 8 mm, length 2/3m optional |
| Material | ABS |
| Physical dimension | 102*171*73mm |
| Screen | 2 digital LED |
| Standards | IEC60255-22-1 |
| Communication | RS485, Modbus-RTU (Optional) |
Notes:
1. The rated power is related to the cabinet’s inner volume and airtightness, and the general reference value is:
0.5 cubic meter cabinet choose 15w
1.0 cubic meter cabinet choose 30w
1.5 cubic meter cabinet choose 40w
2.0 cubic meter cabinet choose 60w
Cabinet volume is calculated according to the physical dimension (Length*Width*Height).
2. The DH2-60 intelligent dehumidification device uses an external sensor. The Sensor accuracy is 5%. If you have customization needs, you can choose an external sensor, please contact our sales team.
3. The electrical enclosure dehumidifier provides passive NO contact for the external heater connection, the capacity is 5A @250Vac. You can free to order heaters or purchase with the DN series.

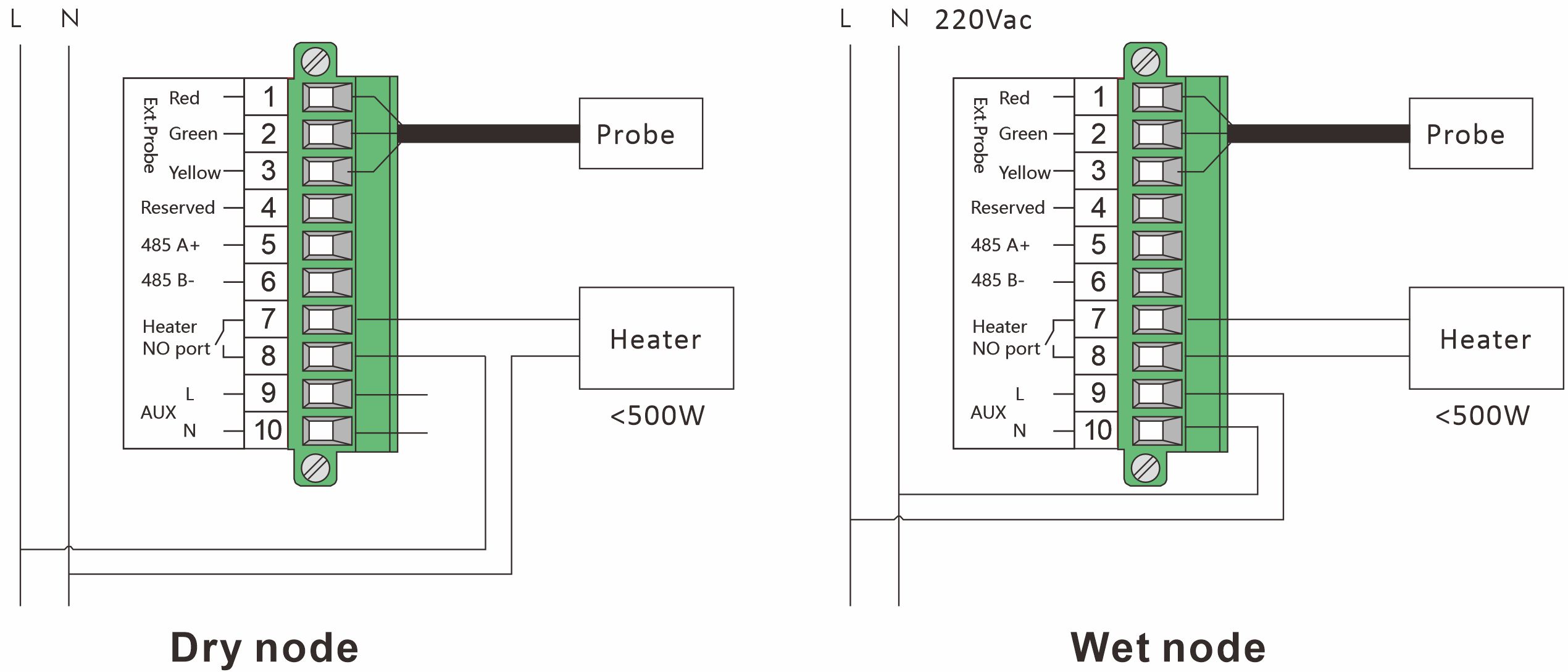

Heater DO port: Passive dry contact by default, external power supply required. optional active wet node version, the relay is energized and can directly drive the heater, no need external power supply.
| Model | Max power | Air volume flow | Sensor | Material | Additional functions |
| DH2-60 | 60W | 70m3/h | External | ABS |
|
| DH3-60 | 60W | 70m3/h | Built-in | ABS | |
| DH4-60 | 60W | 70m3/h | External | Sheet metal with
anti-rust spray |
|
| DH5-80 | 75W | 100m3/h | External | Aluminum alloy | |
| DH6-200 | 200W | 140m3/h | External | Sheet metal with anti-rust spray | |
| Notes:
1. Only Model DH4-60 and DH6-200 can choose all three additional functions, other models can only choose two of three. |
|||||
