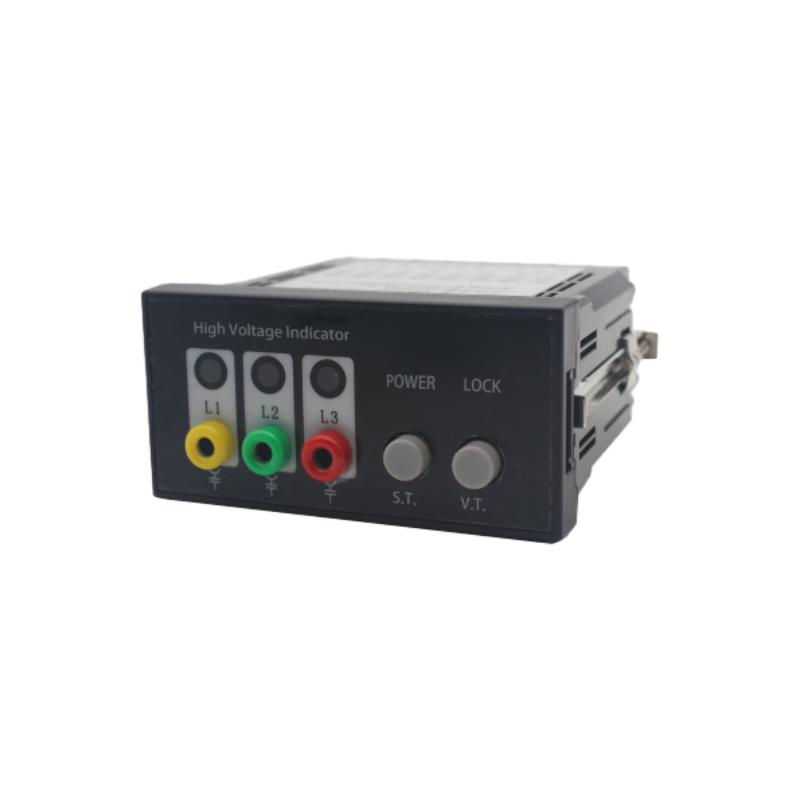

HVD-QS High Voltage Indicator

HVD-QS High Voltage Indicator

The HVD Series High Voltage Indicator is designed for application in 7.2- 40.53 kV medium-voltage systems with rated frequencies of 50/60 Hz. It is suitable for installation in switchgear incoming busbars, circuit breakers, main transformers, and other critical points where reliable voltage presence detection is required. The device provides three-phase voltage indication and supports multiple LED display modes to suit various operational and safety needs. When high voltage is present, the LED indicators will flash according to preset conditions, offering clear and intuitive visual alerts to maintenance personnel and operators.

In addition to on-site indication, the HVD Series integrates configurable relay output for remote voltage presence alarm, control signaling, or fault protection linkage, enhancing both the safety and flexibility of the entire system. Its compact design, high reliability, and easy panel mounting make it an ideal solution for high-voltage distribution systems. Furthermore, the device incorporates a self-test function, allowing users to verify the indicator’s operational status at any time, thus improving system reliability and reducing the risk of operational errors.

The HVD Series High Voltage Indicator is designed for application in 7.2- 40.53 kV medium-voltage systems with rated frequencies of 50/60 Hz. It is suitable for installation in switchgear incoming busbars, circuit breakers, main transformers, and other critical points where reliable voltage presence detection is required. The device provides three-phase voltage indication and supports multiple LED display modes to suit various operational and safety needs. When high voltage is present, the LED indicators will flash according to preset conditions, offering clear and intuitive visual alerts to maintenance personnel and operators.

In addition to on-site indication, the HVD Series integrates configurable relay output for remote voltage presence alarm, control signaling, or fault protection linkage, enhancing both the safety and flexibility of the entire system. Its compact design, high reliability, and easy panel mounting make it an ideal solution for high-voltage distribution systems. Furthermore, the device incorporates a self-test function, allowing users to verify the indicator’s operational status at any time, thus improving system reliability and reducing the risk of operational errors.

High Voltage Indicator Features

  • Multiple LED flashing modes;
  • IEC 61243-5:2021 compliant;
  • Threshold voltage 10%*Un<U<40%*Un;
  • Wide auxiliary input range (85-265V AC/DC);
  • 2 Change-over contacts for status monitoring;
  • Single-phase/three-phase voltage indication.

Specifications

Rated voltage: 24V/110V/220V
Voltage level 1..52 kV (Medium-voltage)
Contact capacity (Passive) 8A、250VAC/48VDC
Power consumption <2W
Working frequency 50Hz/60Hz
Standard IEC 61243-5  IEC 62271-213
Insulation strength 2kV,1min




Nominal Voltage

3-3.6kV
6-7.2kV
10-12kV
20-24kV
35-40.5kV
Shielded Cable Length 2M,or customized by buyers
Threshold Values for Voltage Presence Indication U>0.40 x Unmin
Threshold Values for Voltage Absence indication U<0.15 x Unmin
Threshold Values for Over-voltage Protection U<0.30 x Unmin
Front display LCD/LED Display
Controls Self-test button
Operating temperature -25°C … 55°C, RH<95%, Altitude: ≤1000m
Storage temperature -30°C … 75°C, RH<95%
Protection class IP40/IP65
Type of interface LRM
Lifetime Minimum 31 years (MTBF)


Mounting Dimension (WxHxD)

Panel window size 92x45mm

Recommended depth 130mm

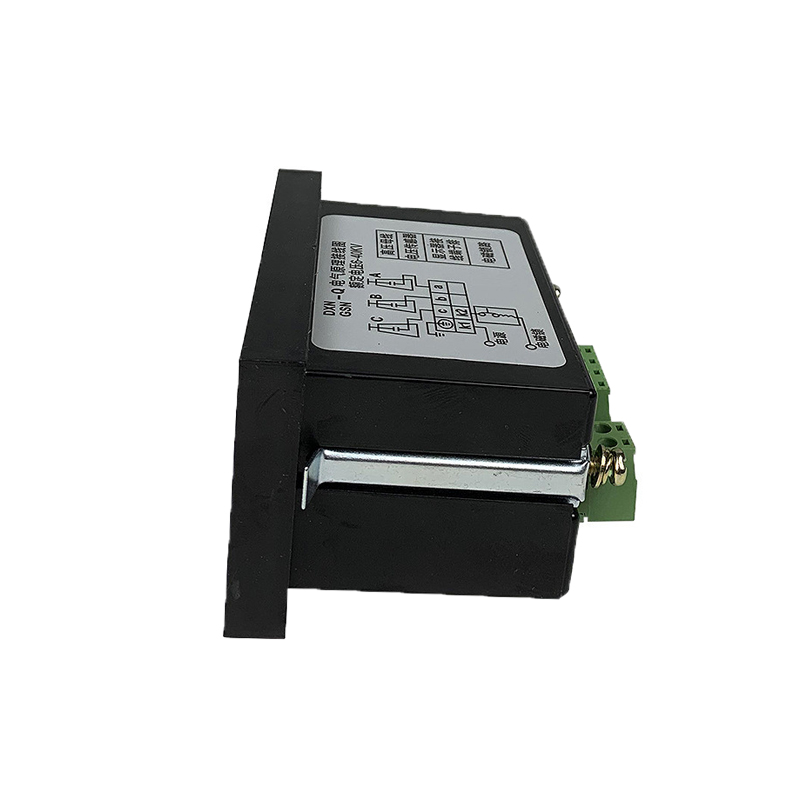

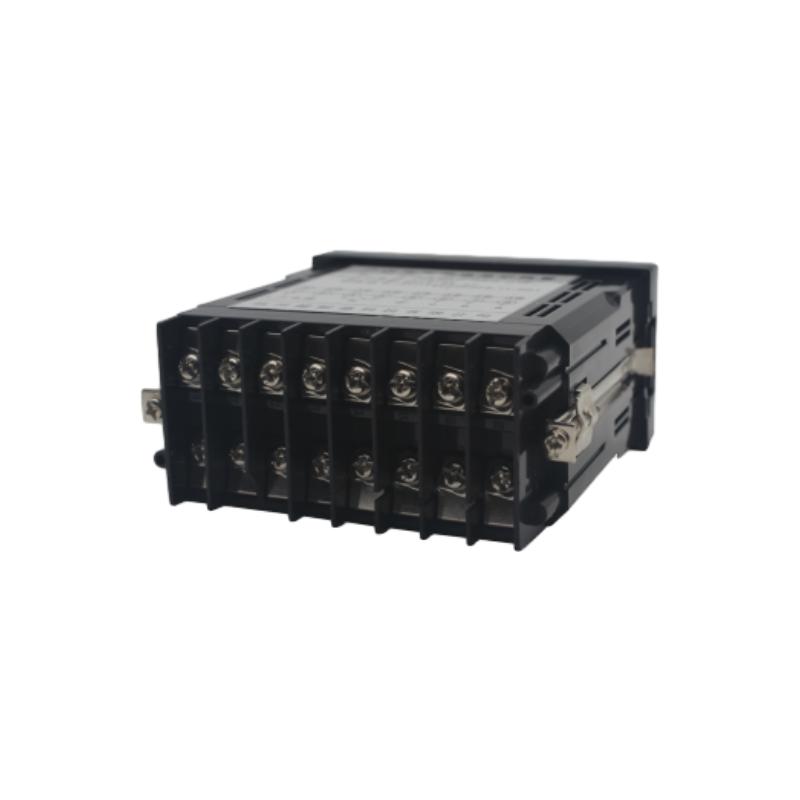

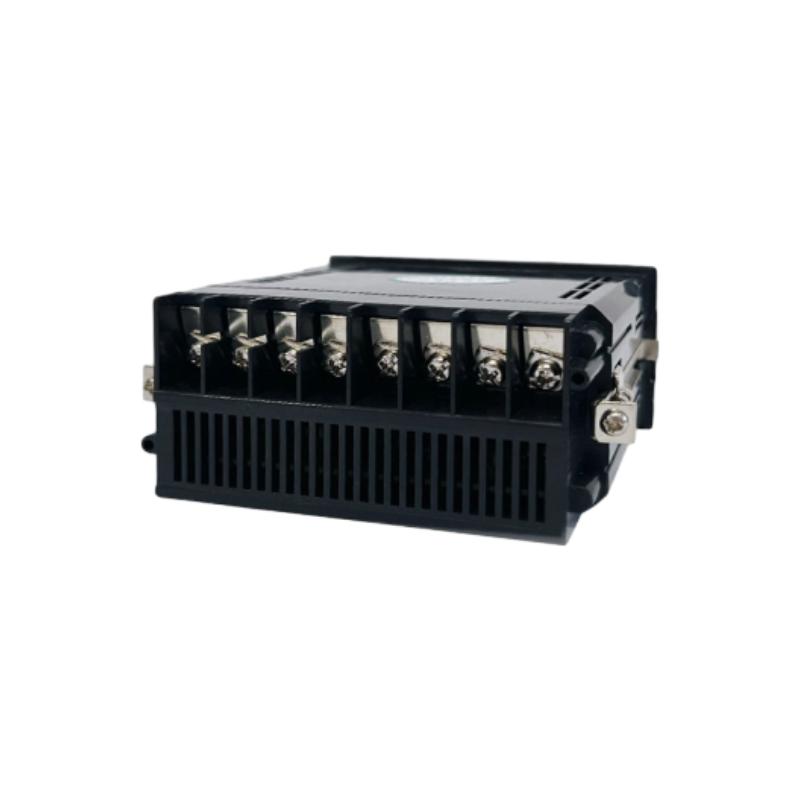

Dimension

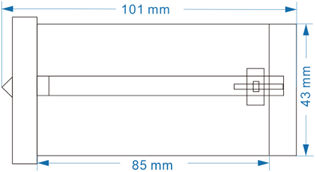

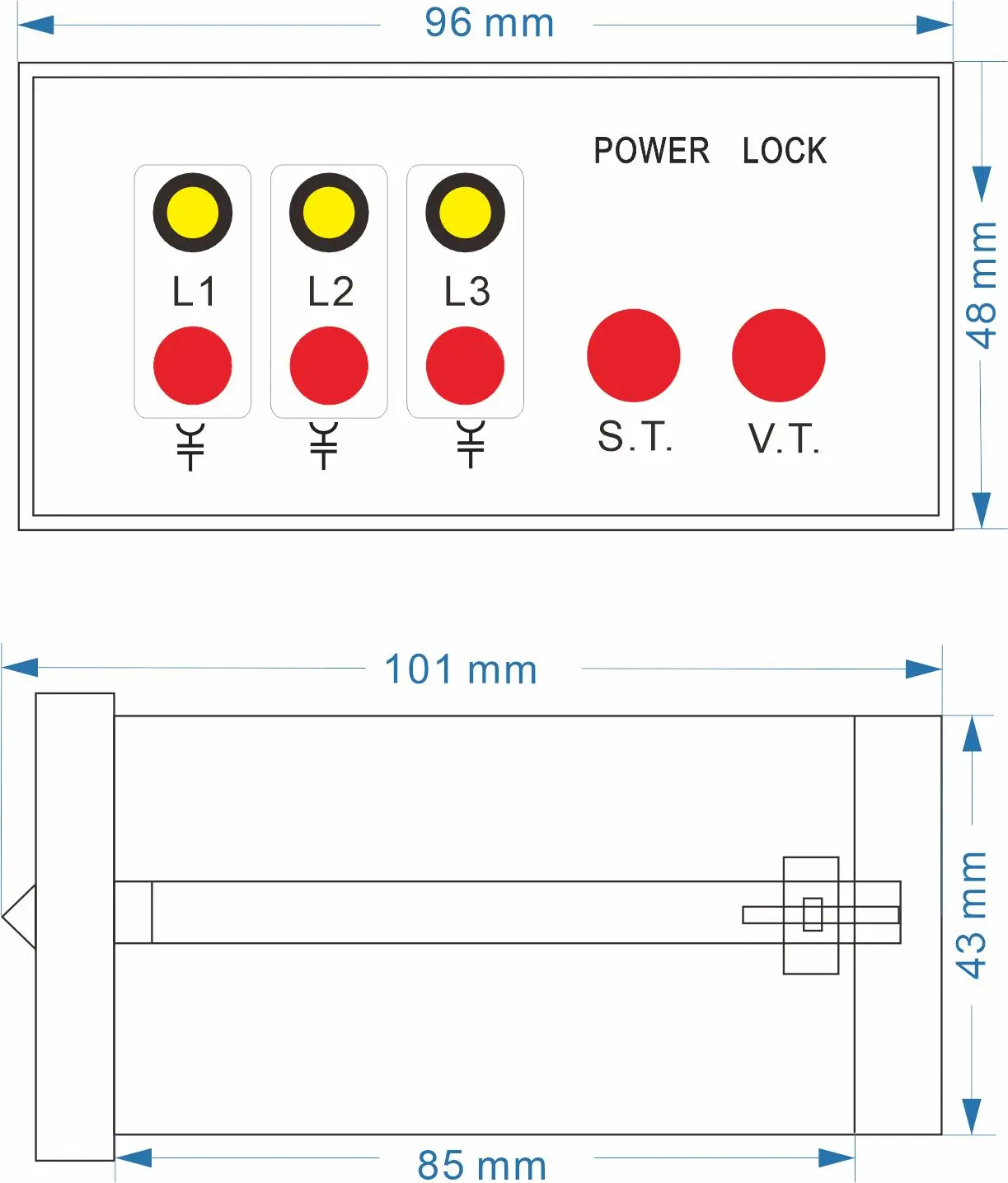

HVD Dimension



HVD Dimension

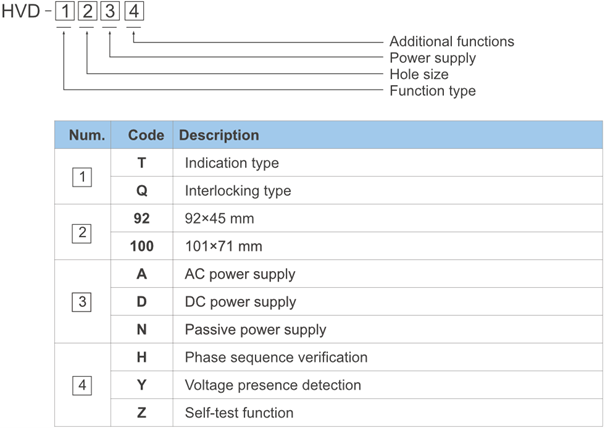

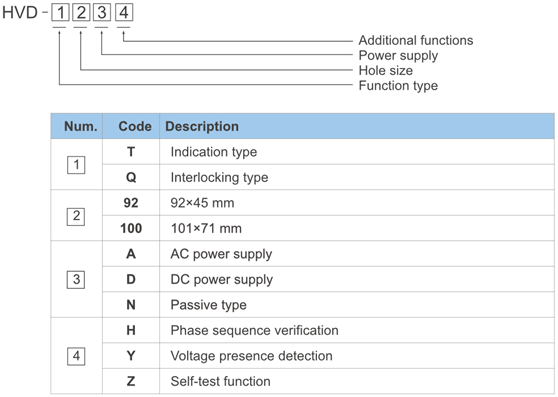

Selectable Models

High Voltage Indicator



HVD-T

HVD-Q HVD-S HVD-QS

High voltage indication

Sensor offline alarm

Interlocking indication

Three-phase measuring point

High bright LED indicator

Download

Brochure of HVD-QS

BJ-HVD -User Manual-V1.10
