Feature
- Multiple modes: 16DI, 8DI+4DO, 12HV DI, 8DO
- High-voltage input: AC/DC 90–260V
- Built-in RS485, MODBUS-RTU support
- AC2kV withstand, ≥100MΩ insulation

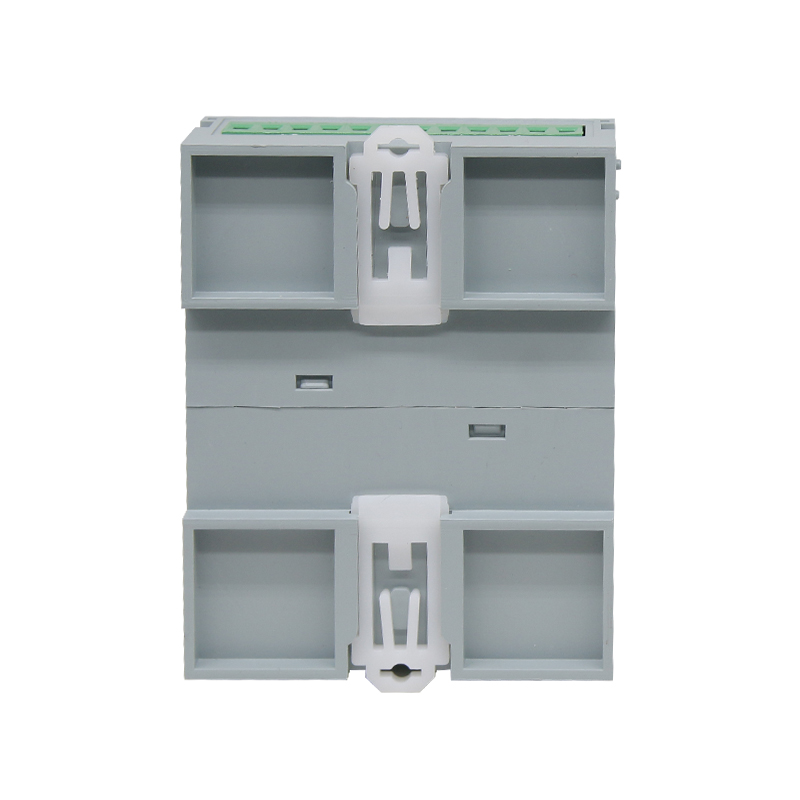

- Standard 35mm DIN-rail mount
- LED status indicators on panel
Technology of Electrical Automatic

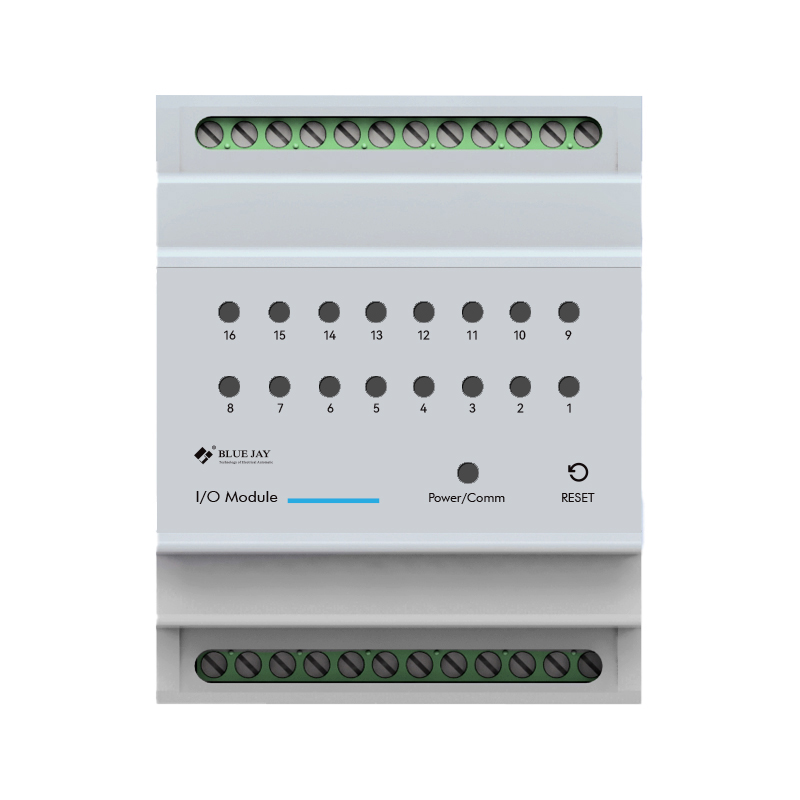

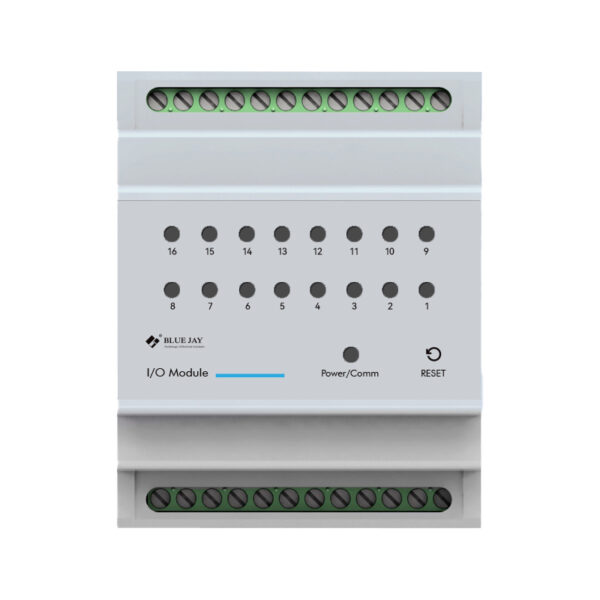

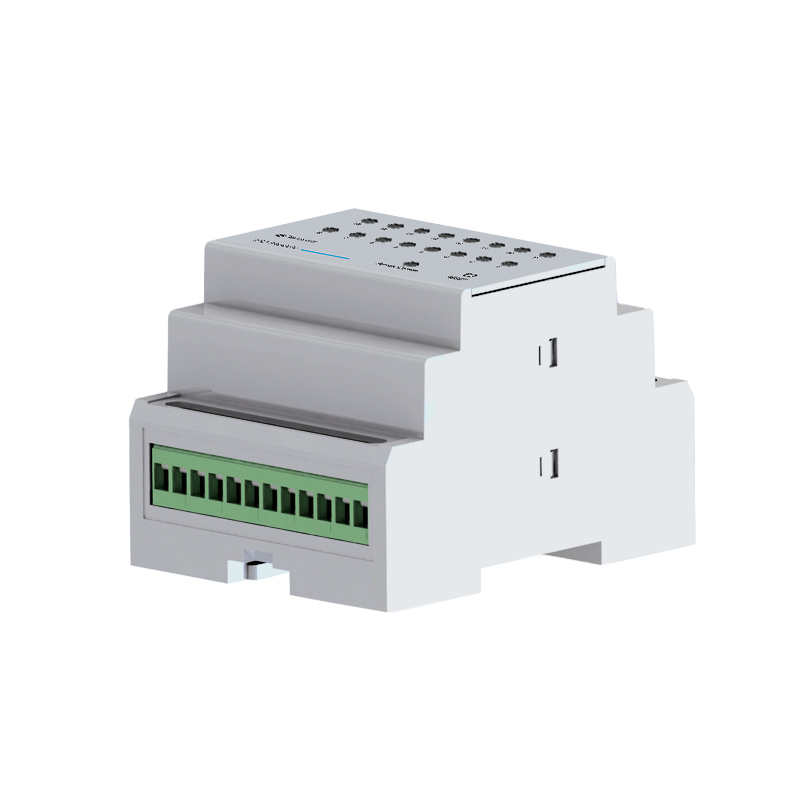

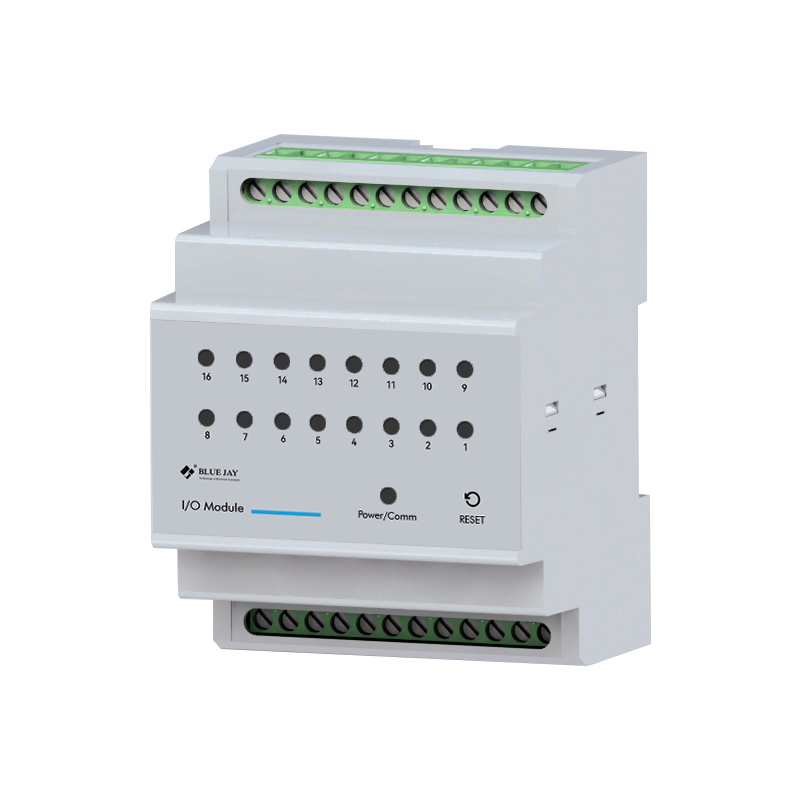

IOM-CH16 Digital I/O Module
IOM-CH16 Digital I/O Module
The IOM-CH16 Digital I/O Module can acquire the status of 16-channel digital inputs, or 8-channel digital inputs and 4-channel relay outputs, or 12-channel high-voltage digital inputs, or 8-channel relay outputs. It also supports remote data acquisition via the RS485 communication port, using the MODBUS-RTU communication protocol.
Category: Digital IO Module, Low Voltage Accessories
The IOM-CH16 Digital I/O Module can acquire the status of 16-channel digital inputs, or 8-channel digital inputs and 4-channel relay outputs, or 12-channel high-voltage digital inputs, or 8-channel relay outputs. It also supports remote data acquisition via the RS485 communication port, using the MODBUS-RTU communication protocol.
Application
- Distribution automation and load monitoring
- Distributed energy management systems
- Production process control
- Machinery manufacturing and automation equipment
- Energy storage systems
- Smart manufacturing and industrial applications
- Marine automation control
Specification
| Parameters | Value |
| Power supply | 85-265VAC/DC |
| Power consumption | <5VA |
| Insulation resistance | ≥100MΩ |
| Digital input | Optional configuration: 16* DI or 8* DI and 4* DO, dry contact, Ri<500Ω turns on, Ri>100kΩ turns off |
| Optional 12* DI high voltage signal, wet contact, Input range: 90-260VAC/DC | |
| Digital output | Optional configuration: 8* DO, normally opened |
| Load capacity: 5A@250VAC, 5A@30Vdc | |
| Withstand voltage | AC 2kV / 1 min between input/output and power supply; Input and output; communication terminal and others. |
| Dimension | 78*90*60 mm W*H*D |
| Environment | Working: -15-55°C, Storage: -40-80°C |
| Humidity: 93%RH, no condensation, no corrosive gas | |
| Altitude ≤2500m |

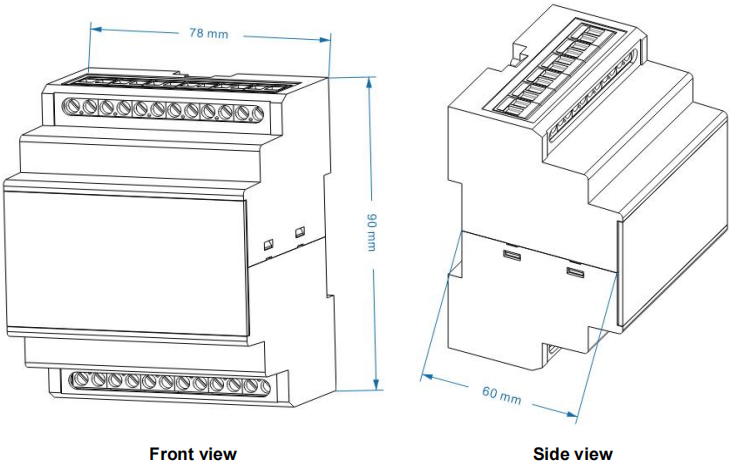

Dimension
