Digital 194DR Multifunction Power Meter

Digital Multifunction Power Meter

APM-5MR (194DR) Digital Multifunction Power Meter

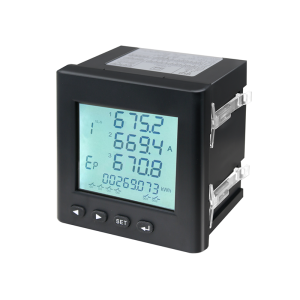

The 194DR Digital Multifunction Power Meter is the perfect choice for monitoring and controlling power distribution systems, with four direct access keys and a high-definition1.6″ dot matrix LCD screen showing all parameters of a 3P3W or 3P4W LV installation.

35mm Din-rail design makes this multifunction meter possible to install in various monitoring boxes and use in outdoor environments (-20~60°C). The integrated advanced electrical parameter and logging function can replace the general power recorder to perform real-time online monitoring, with the advantages of improving system reliability making the on-site wiring convenient, and reducing system cost.

With the serial port, the BJ-194DR digital multifunction power meter can connect with a PC or other host device; All monitored data can be accessed through a digital RS485 communication port using Modbus Protocol.

Category: Discontinued Products

Digital 194DR Multifunction Power Meter

Digital Multifunction Power Meter

The 194DR Digital Multifunction Power Meter is the perfect choice for monitoring and controlling power distribution systems, with four direct access keys and a high-definition1.6″ dot matrix LCD screen showing all parameters of a 3P3W or 3P4W LV installation.

35mm Din-rail design makes this multifunction meter possible to install in various monitoring boxes and use in outdoor environments (-20~60°C). The integrated advanced electrical parameter and logging function can replace the general power recorder to perform real-time online monitoring, with the advantages of improving system reliability making the on-site wiring convenient, and reducing system cost.

With the serial port, the BJ-194DR digital multifunction power meter can connect with a PC or other host device; All monitored data can be accessed through a digital RS485 communication port using Modbus Protocol.

Category: Discontinued Products

194DR Multifunction Power Meter Features

PMD measurement accuracy class 0.5.
Current measuring …/5 or …/1 A
1.6-inch dot matrix LCD screen.
Universal series power supply (85-265VAC/DC)
Max 50 lists SOE record, Provide 5 virtual alarm trigger
With RS-485 Modbus/RTU Communications
Optional 4DI,2DO,1PO expansion port.
51st harmonic individual monitoring
Basic metering function: Voltage, current, frequency, total power factor, active power, reactive power, apparent power, active/reactive energy consumed/generated
Optional metering function: time of use, voltage & current harmonic distortion, individual harmonic, current/voltage unbalance, voltage deviation, and sequence of the event record.

Specification

Power Supply	AC / DC 80-265V, 45-65Hz DC 20-60V (Optional) Burned < 10VA
Current Measurement	…/ 1A or …/5 A Burned < 0.1W
Voltage Measurement	Direct measurement 18~277V ac (L-N) PT secondary …/100Vac Burned < 0.1W
Frequency Measurement	45~65Hz Resolution 0.01Hz
Accuracy	U & I – 0.2% ; P &Q – 0.5% Frequency – 0.1% Active Energy – 0.5 class Reactive Energy – 1.0 class
Communication Port	RS485 (2/3 wires half duplex) Modbus RTU mode
Pulse Outputs	1 channel Coupler relay
Analog Outputs (Optional)	2 channel Isolated 0 / 4 … 20 mA
Alarms Outputs (Optional)	2 channel DO & 4 channel DI 230 VAC 5 A

Selectable Models

Download

Brochure of APM-SERIES-MULTI-FUNCTION-DIGITAL-PANEL-METER

BJ-194DR-User maual-V1.1_1.37
