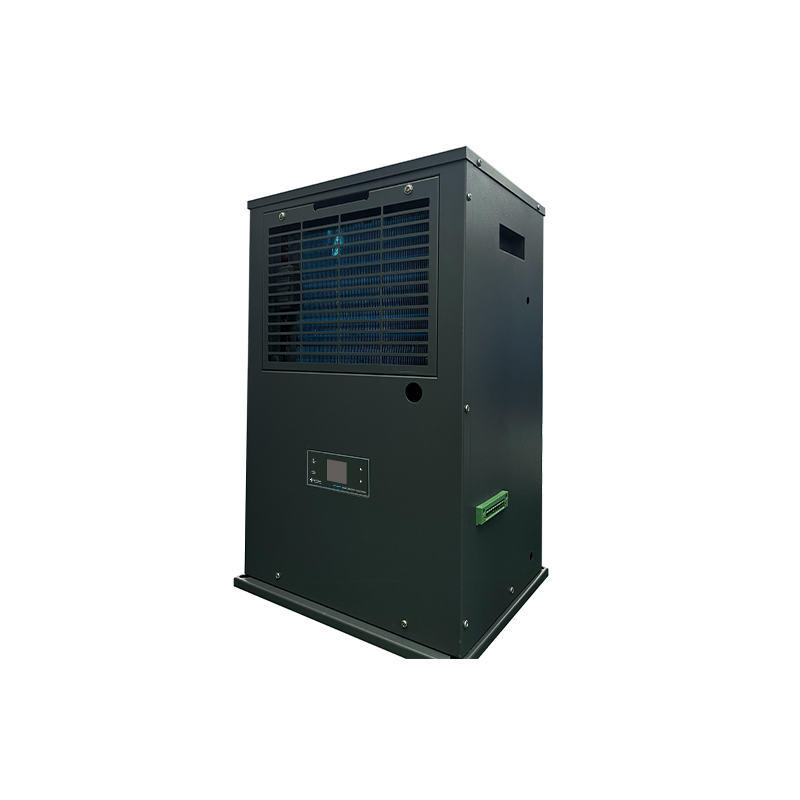

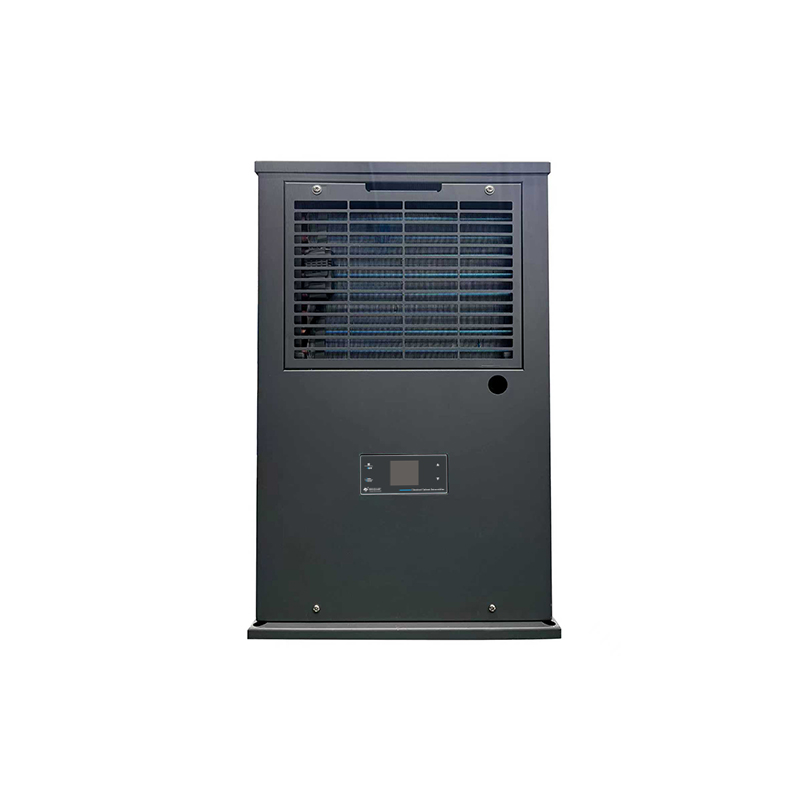

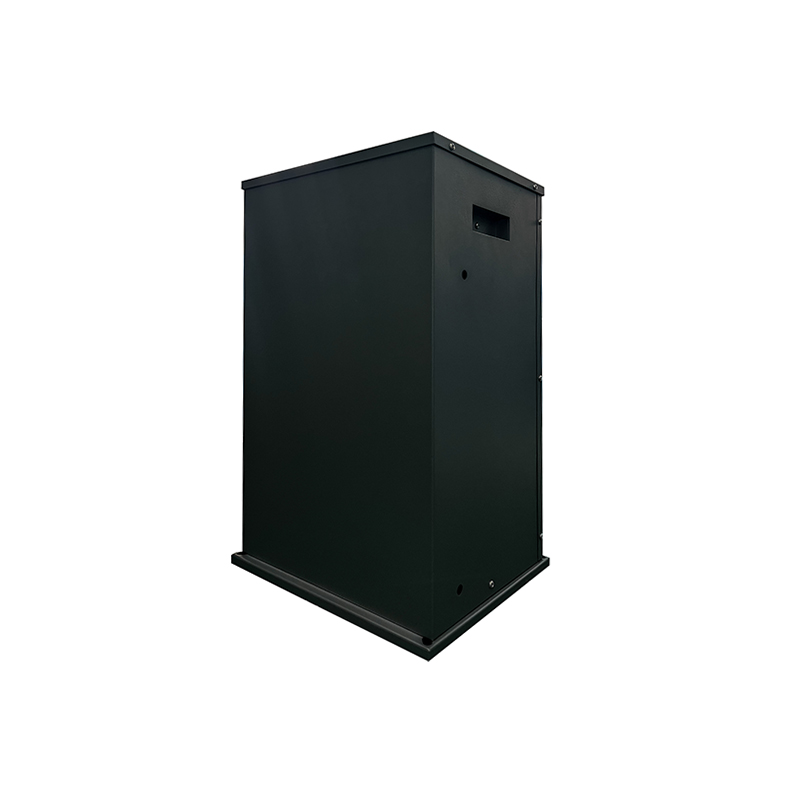

DH-C16 Intelligent compressor dehumidifier uses compressor refrigeration technology to make the moisture air inside the electric box condense into water on the surface of the condensation plate of the dehumidifier and then discharge it out of the cabinet, quickly reducing the humidity inside the cabinet.
DH-C16 Intelligent compressor dehumidifier is equipped with an intelligent control module and adopts anti-interference technology. The double-row digital tube displays the measured value and the set value at the same time, and alternately displays the current temperature and humidity, and realizes the automatic control function of humidity.
DH-C16 Intelligent compressor dehumidifier uses compressor refrigeration technology to make the moisture air inside the electric box condense into water on the surface of the condensation plate of the dehumidifier and then discharge it out of the cabinet, quickly reducing the humidity inside the cabinet.
DH-C16 Intelligent compressor dehumidifier is equipped with an intelligent control module and adopts anti-interference technology. The double-row digital tube displays the measured value and the set value at the same time, and alternately displays the current temperature and humidity, and realizes the automatic control function of humidity.
The intelligent compressor dehumidifiers operate based on the vapor-compression refrigeration principle. Humid air is drawn into the unit and passes through the evaporator, where moisture condenses into water and is discharged through the drainage tube. The air reheated by the condenser and released back into the environment, enabling continuous dehumidification.
The refrigerant circulates through the compressor, condenser, expansion device, and evaporator to complete the refrigeration cycle and continuously reduce ambient humidity.
| Working power | |
| Power supply | 85-265Vac/dc, ±10%, 50Hz |
| Rated input power | 300W |
| Dehumidification capacity | 16L/day @30°C, 80%RH |
| Max dehumidification space | 40 cubic meters |
| Refrigerant | R134a,130g |
| Measurement and ability | |
| Ambient temperature
Measurement & control range |
-40.0°C ~70.0°C, accuracy ±1°C,
Display resolution 0.1 |
| Ambient humidity
measurement range |
20.0~99.0%RH, Display resolution 0.1 |
| Ambient humidity control range | 20.0~95.0%RH |
| Ambient humidity accuracy | ±3%RH |
| External ambient temp. measurement range | -40°C ~70°C, Class 2.0 |
| Heater start threshold | 1~55°C, Default 5°C |
| Heater power | 50~500W optional |
| Relay contact capacity | 2*DO, Both dry contact, normally open
For heater: 5A@250Vac/ 30Vdc For fault alarm: 3A@250Vac/ 30Vdc |
| Safety | |
| Dielectric strength | 2kV AC RMS 1 minute, between input / output / case / power supply
Input, output and power supply to the chassis ≥100MΩ |
| Surge (impact) immunity | GB/T 17626.5-2008, Level 3 |
| Electrical fast transient/
burst immunity |
GB/T 17626.4-2008, Level 3 |
| Power frequency magnetic
field immunity |
GB/T 17626.8-2006, Level 3 |
| Other | |
| Environment | Storage: -10°C ~50°C, ≤90%RH, no condensation
Operating: 5°C ~40°C, ≤90%RH, no condensation |

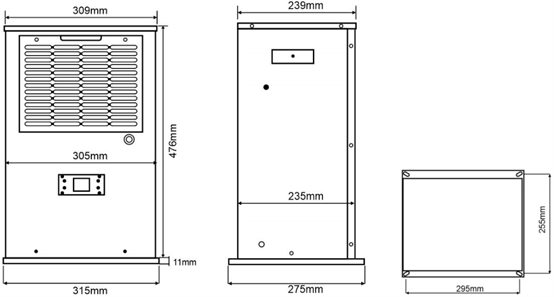

| Dimensions (W*H*D) | Body: 309x476x239mm
Base plate:315 x275x11mm |
| Drain hose | Silicone, OD 10 mm, ID 8 mm, length 2/3m optional |
| Net weight | 14KG |
| RS485 Communication | RS485, Modbus-RTU (Optional) |
Note:

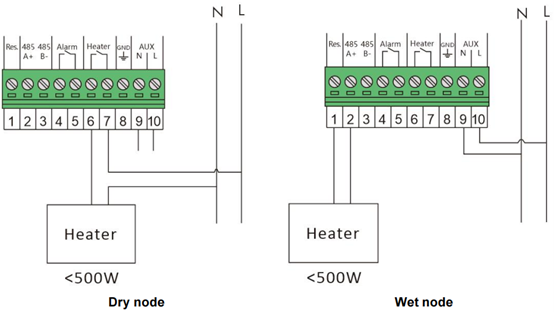

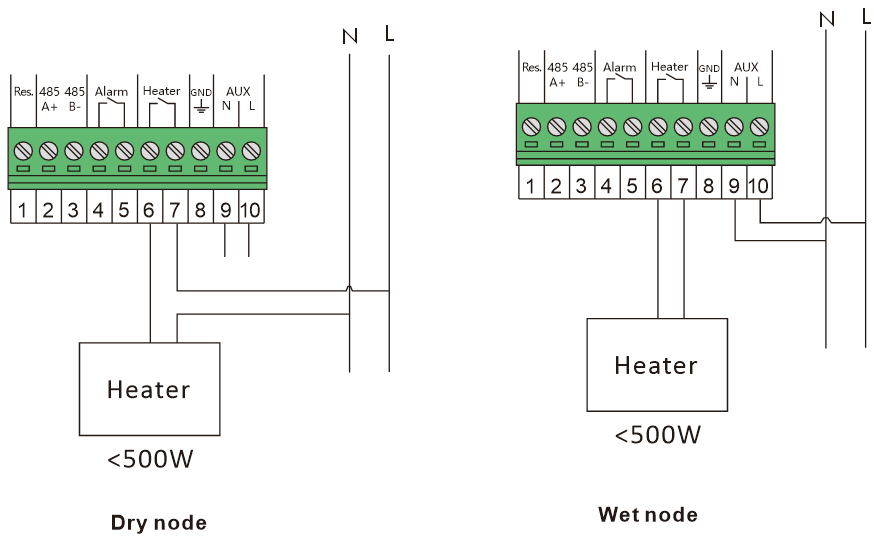

Heater DO port: Passive dry contact by default, external power supply required. optional active wet node version, the relay is energized and can directly drive the heater, no need external power supply.
