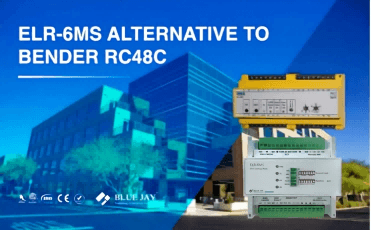

ELR-6MS - Cost-effective Alternative to Bender RC48C

ELR-6MS – Cost-effective Alternative to Bender RC48C

If you’re looking for a cost‑effective, space‑saving replacement for the Bender RC48C (a ground‑fault/earth‑continuity monitor for Mining applications & high‑resistance grounded systems), here is one of the best alternatives—Blue Jay ELR‑6MS.

Why Are Users Seeking Bender RC48C Replacements

In TN/TT systems, renewable energy storage (ESS), and grid-connected photovoltaics, the Bender RC48C is a classic Type A residual current monitor (RCM). However, given the current supply chain environment, are you facing the following challenges?

Deliveries Collapse (Cumbersome Processes at Large Manufacturers, Endless Waits for Small Orders): Large brands like Bender have cumbersome procurement processes and prioritize large orders, often resulting in long lead times for small and medium-sized orders or emergency small orders.

High Prices (Excessive Premiums, Severely Compressing Profit Margins): As a monopolistic brand in the industry, Bender carries a high brand premium, with prices often several times higher than comparable industrial brands. Using its entire product line can put enormous pressure on project budgets.

Difficult Technical Support (Lengthy After-Sales Processes): Due to the extremely cumbersome after-sales service processes of these brands, it is difficult to provide in-depth 24-hour technical support when encountering leakage current malfunctions or complex harmonic interference on-site.

ELR-6MS: 100% Functional Compatibility with Bender RC48C

Engineered specifically for real-time leakage current monitoring in heavy-duty mining applications, the ELR-6MS serves as a direct, drop-in replacement for the Bender RC48C. It delivers a seamless 1:1 technical match across all core electrical parameters and critical protection functions, ensuring uncompromised safety and zero system modifications.

Technical Specifications Comparison

Technical Parameters	ELR-6MS	RC48C-935
Power Supply Voltage Range	90~240V AC/DC，50/60Hz	Universal version: 60~264V AC/DC; UL specification: 110~240V AC/DC, 50/60Hz
Rated Power Consumption	AC 5VA / DC 5W	60V AC≈5VA；264V AC≈8.5VA
Operating Current Range	10mA ~ 500mA，16-speed DIP switch precise setting	Two-level switching: 0.1A~1A (100~1000mA), 1A~10A
Operating Current Accuracy	-15% ~ 0%	0.1A/1A range: 0~-25%; 0.3/0.5/0.7A range: ±20%.
Fault Delay Setting Range	0.02s ~ 10s, 7-level DIP switch adjustment	0.1s ~ 2s, fewer speed settings
Zero-Sequence Current Transformer Adaptation	Supports three fixed transformation ratios: 1000:1, 600:1, and 40:1 (200:5), with direct terminal selection.	Compatible only with Bender original transformers, no multiple ratio options available.
Monitoring Resistance Range	10Ω ~ 50Ω, 4-position DIP switch (10/20/30/50Ω), error ±15%.	Fixed tripping threshold 40Ω, error ±10Ω (30~50Ω tripping).
Standard Operating Delay	Fixed 150ms, accuracy ±0.1% (hard delay, not adjustable).	Series/short circuit fault response 200ms, accuracy ±20%.
Monitoring Circuit Parameters	Requires an external Zener diode terminator (GC/GD terminal) to monitor ground loop short circuits/open circuits. Unified trip trigger, no detailed alarm settings.	Built-in 12V DC monitoring voltage, circuit rated current 25mA DC, output impedance 240Ω, compatible with E6 series terminators.
Fault Type Identification	Unified trigger tripping, no granular alarm settings.	Differentiates between series high resistance/open circuit and cross short circuit faults with LED differentiated indications.
Number and Type of Relays	3 independent relays: 1 DPDT main trip, 2 SPDT auxiliary relays.	2-channel universal SPDT with no voltage conversion contacts.
Contact Current Carrying Capacity	Main contacts: 8A@250V AC/8A@30V DC; Auxiliary contacts: 16A@250V AC/16A@30V DC. Pure DIP switch configuration; upper DIP switch sets ground fault parameters, lower DIP switch sets ground detection parameters.	5A (on) / 2A (off) @ AC250V / DC300V
Parameter Configuration Method	Main and auxiliary relays are triggered immediately upon detecting leakage current; tripping is canceled if the fault disappears during the delay period, preventing false tripping.	Knob settings + physical buttons, with built-in TEST/RESET button.
Ground Fault Operating Logic	The main and auxiliary relays are triggered immediately upon detecting leakage current. If the fault disappears during the delay period, the tripping is cancelled, preventing malfunctions.	Residual current fault memory lock; manual RESET button required to reset.
Ground Wire Fault Operating Logic	Permanent tripping occurs after a fixed delay exceeding 150ms, with no automatic reset.	Automatic reset after fault clearance.
Advantageous Application Scenarios	Applications include: 1. Underground/open-pit mobile cable-operated equipment in mines; 2. Requires low leakage current protection (10~500mA), focusing on personal electric shock protection; 3. Multi-level power distribution systems requiring wide-range delay for selective protection; 4. Low-cost, pure hardware DIP switching, and no need for remote monitoring; 5. Scenarios requiring three independent relay outputs.	1. High-power industrial circuits and frequency converters (with many harmonics) rely on built-in filtering for interference suppression; 2. High leakage current protection (100mA~10A), focusing on short-circuit protection; 3. Field applications requiring local buttons, LED status indicators, and remote indicators; 4. Continuous production equipment requiring automatic recovery from ground faults and simplified maintenance; 5. European and American standard power distribution systems, compatible with Bender’s complete solutions.

Why ELR-6MS Is a Better Cost-Effective Choice

If you need a solution with 1:1 specifications, seamless drop-in replacement, and fast delivery, the ELR-6MS leakage current relay is your ideal choice.

100% Drop-in Replacement

The ELR-6MS perfectly matches the Bender RC48C in core parameters, protection functions, and Type A leakage current detection. It uses a standard 35mm DIN rail mount, allowing for direct and seamless matching with existing wiring and transformers, enabling R&D and field maintenance to achieve “zero wiring changes, plug and play.”

Completely Breaks the Long Lead Time Curse (Ready to Ship)

Addressing the common need for urgently needed spare parts in industrial settings such as “equipment burnout” and “rushed project deadlines,” we maintain ample stock of standard ELR-6MS units. Breaking the ironclad rule of “endless queues for small orders” among large manufacturers, we offer instant shipping for all order sizes, ensuring the security of your supply chain.

Cost-Effective BOM Reduction

While maintaining equivalent industrial-grade EMC performance, the ELR-6MS eliminates the high premiums of imported brands, directly optimizing material costs by over 30%. Furthermore, we provide 24/7 instant technical support, eliminating the lengthy and slow after-sales processes of multinational brands.

Trust & Quality

The ELR-6MS is manufactured strictly according to industrial-grade standards, has passed international authoritative certifications such as IEC, and undergoes rigorous high and low temperature cycling and surge impact testing before leaving the factory.

Application

In harsh mining environments with strong harmonic interference, and in HRG (High Resistance Grounding) systems with stringent requirements for detecting minute leakage currents, the Bender RC48C has always been the industry benchmark. The ELR-6MS achieves a perfect 1:1 technical match.

It features a built-in high-performance digital filter that, like the RC48C, precisely filters high-frequency interference from frequency converters, completely eliminating unplanned shutdowns in mines due to accidental tripping. Simultaneously, its highly sensitive Type A monitoring capability accurately detects microamp/milliamp level grounding faults in HRG systems. Whether in extremely harsh mining environments or demanding special grounding systems, the Blue Jay ELR-6MS provides equally stringent industrial-grade electrical safety protection.

Conclusion

The ELR-6MS is the most cost-effective drop-in alternative to the Bender RC48C, balancing identical industrial protection performance, smaller size, and lower procurement cost. Worried about the delivery time or cost of the Bender RC48C? Please contact us to purchase samples for testing.
