MCM263T Multifamily Utility Submetering in Distribution Panel

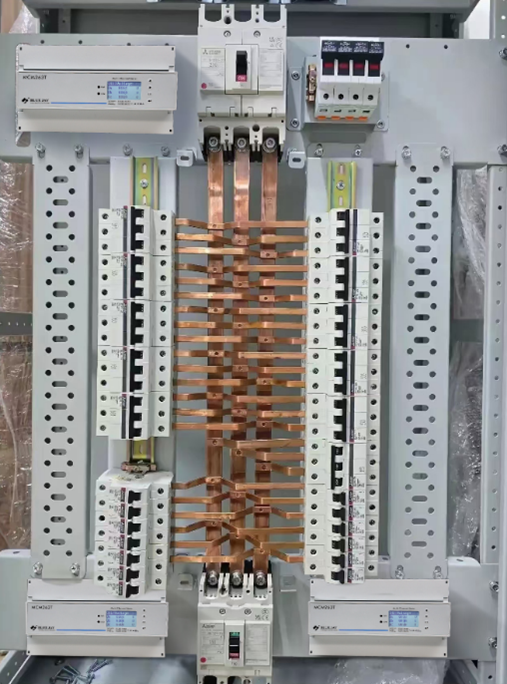

How to use multifamily utility submetering in a distribution panel? The figure shows the internal layout of a standard industrial power distribution cabinet. Three MCM263T multi family submeters are installed in the core position. Each MCM263T multi family submeter directly monitors the load circuit carried by the corresponding miniature circuit breaker (MCB) below it. The cabinet structure is clear: the center is the current busbar, the two ends are connected to the main circuit breaker, and a 4-pole fuse is installed in the upper right corner for protection. This layout shows the spatial integration advantage of MCM263T multifamily submetering in high-density power distribution monitoring scenarios.
Limitations of Traditional Monitoring Solutions
For the 18 single-phase load circuits (or equivalently 6 three-phase load circuits) shown in the figure, the traditional single-channel meter solution requires:
- 18 independent meters
- Occupies a large amount of panel installation space
- Significantly increases the number of voltage and current signal terminals and wiring complexity.
- Increases installation hours and the number of subsequent maintenance points.
Technical advantages of the MCM263T multifamily utility submetering integrated solution:

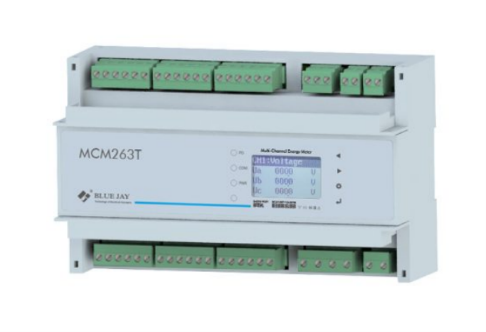

Blue Jay MCM263T multi family submeter is a highly integrated power monitoring device designed for industrial power distribution systems. Its core value lies in the integration of multiple independent measurement channels in a single device:
High-density measurement capability:

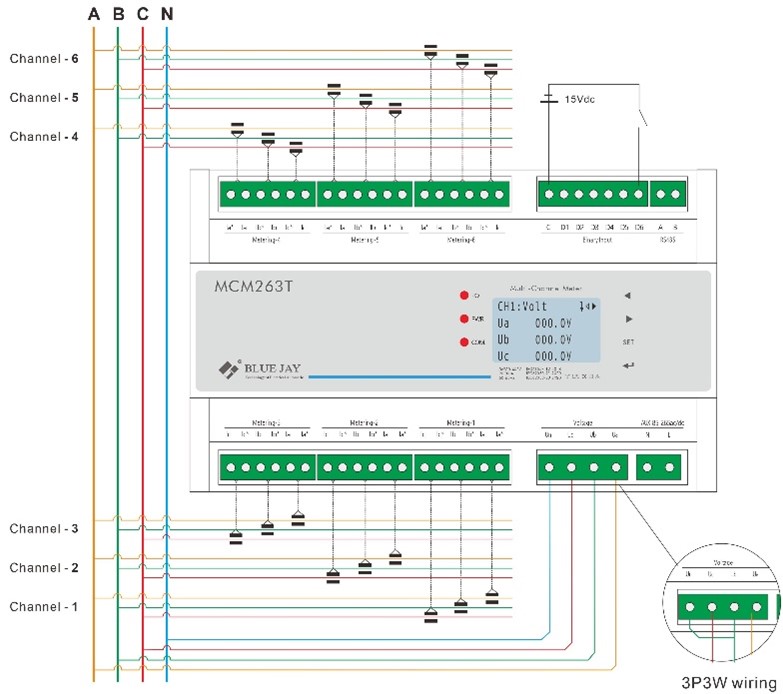

- A single MCM263T provides 6 completely independent three-phase measurement channels.
- Each three-phase channel can independently and accurately measure three-phase voltage, current, power (active, reactive, apparent), power factor, frequency, electric energy (active, reactive) and other core electrical parameters.
- Equivalent capability: 1 MCM263T can complete the measurement tasks equivalent to 18 single-phase meters (MCM261T) (i.e. monitoring 18 independent single-phase circuits).
Significant space savings and simplified installation:
- As shown in the figure, only 3 MCM263Ts are needed to achieve comprehensive metering coverage of 18 single-phase circuits (or 6 three-phase circuits).
- Space optimization: 3 MCM263Ts occupy much less panel space than the traditional solution of 18 single-phase meters. This is critical in the design of high-density distribution cabinets, leaving ample space for circuit breakers, fuses, busbars and other equipment to optimize heat dissipation and wiring.
- Simplified installation: Greatly reduce the number of required meters, mounting holes, terminal blocks and supporting current transformers (CTs). The wiring workload is significantly reduced, the installation efficiency is improved, and the potential wiring error points are reduced.
Optimized Distribution Panel Layout:
- The compact design of MCM263T multi family submeter enables it to be directly placed above or near the MCB of the monitoring circuit (as shown in the figure), so that the physical location of the measurement point corresponds to the protection device, which is convenient for circuit identification, troubleshooting and maintenance operations.
- Coordinate with the layout of key components such as busbars, circuit breakers, fuses, etc. to build a clear and efficient distribution monitoring node.
Comprehensive measurement functions (professional features):
In addition to basic electrical parameters, MCM263T generally supports:
- Phase and total energy measurement (active/reactive)
- Demand measurement (current, power)
- Voltage/current total harmonic distortion (THD) and odd harmonic component measurement
- Data recording and storage function.
- Standard industrial communication interface (such as Modbus-RTU over RS-485) for easy access to energy management system (EMS) or building management system (BMS).
Improved maintenance efficiency & multifamily energy efficiency
- Reducing the number of devices means centralized maintenance objects, and status viewing, data reading and diagnostic operations can be completed on fewer devices, improving operation and maintenance efficiency.
Summary of the core value of the MCM263T solution:
| Feature dimensions | Traditional single meter solution (18 single-phase) | MCM263T solution (3 units) | Advantages |
| Number of devices | 18 units | 3 units | Reduce the number of meters by 83% |
| Space occupied | Large | Significantly reduced | Optimize cabinet layout and improve space utilization |
| Wiring complexity | High (18 sets of independent wiring) | Low (3 sets of centralized wiring) | Simplify installation and reduce error rate |
| Maintenance points | 18 units | 3 | Reduce maintenance complexity and time cost |
| Channel management | Dispersed | Centralized | More efficient data collection and management |
Conclusion:
The Blue Jay MCM263T multifamily submetering provides an efficient, integrated solution for branch circuit monitoring in industrial power distribution systems. Its ability to integrate 6 independent three-phase measurement channels in a single device makes it a significant advantage in space-constrained distribution cabinet environments (as shown in the example). By significantly reducing the number of devices, simplifying wiring and installation, optimizing cabinet layout, and improving maintenance efficiency, the MCM263T multifamily utility submetering is an ideal choice for high-density, refined power metering and management.
For complete technical parameters, measurement accuracy, communication protocols and certification information of the MCM263T, please visit the product page:
