An arc protection relay from Blue Jay is an ideal arc flash solution for LV and MV switchgear protection. Our arc flash relay detects arc flash hazards through arc flash light sensing and overcurrent protection and quickly trips the busbar or feeder circuit breakers to limit arc fault damage. To learn more about arc flash,browse our guide – what is an arc flash?
Blue Jay has an ideal solution, no matter the switchgear cubicle, transformer compartment, motor control center bucket, generator control panel, or other electrical panel application. Get started with our Instant Quote tool now!
Blue Jay Arc Flash Detection Featured Products
Showing all 3 results
An arc protection relay from Blue Jay is an ideal arc flash solution for LV and MV switchgear protection. Our arc flash relay detects arc flash hazards through arc flash light sensing and overcurrent protection and quickly trips the busbar or feeder circuit breakers to limit arc fault damage. To learn more about arc flash,browse our guide – what is an arc flash?
Blue Jay has an ideal solution, no matter the switchgear cubicle, transformer compartment, motor control center bucket, generator control panel, or other electrical panel application. Get started with our Instant Quote tool now!
Blue Jay Arc Flash Detection Featured Products
-

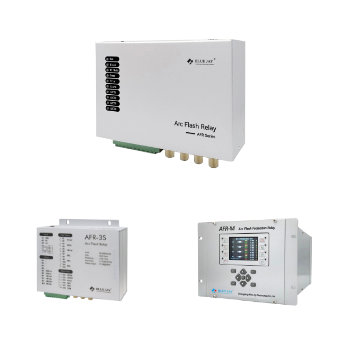

AFR-4 Arc Flash Detection Relay with 4 Channels
Read more -
AFR-3S Arc Flash Relay with 3 Channels
Read more -
AFR-M Busbar ARC Flash Protection Relay
Read more
Arc Flash Relay Core Features
High-speed tripping during arc-flash events is one of the arc fault detector outstanding features. The other features include:
2. Highly quality, Reliability, safety, and efficiency
3. Available in numerous types of arc fault protection
4. Quickly active circuit breaker failure protection
5. Coordinated Protection via Modbus TCP/DNP3 LAN/WAN/Telnet/FTP/IEC 61850
6. Self-monitoring all internal systems
7. Flexible Installation in new switchgear/MCC
8. Simply connecting & programming arc flash relay
9. Indication LEDs: Power available LED, Device operates normally LED, Maintenance service LED, alarm action LED, DO trips LED, Communication status LED, etc.
Application of Blue Jay Arc Protection Relays
These features make arc fault protection relay a standard choice for applications such as MV and LV switchgear cubicles, smart Motor Controls and generator control panels, Battery Energy Storage Systems(battery DC cabinet/container/power conversions system PCS), capacitor load banks, etc.
In these applications, arc flash protection is crucial for single or multiple arc flash protection zones, including breaker compartments, main bus bar sections, upper and lower cable exit sections, and more.
For smaller applications with one or two arc flash protection zones, our AFR-3S is an excellent choice.
For switchgear with multiple arc flash monitoring zones, our AFR-4 is ideal.
And for both simple and complex switchgear with over 12 arc flash zones, our AFR-M offers an ideal solution.
Want to use other arc flash mitigation methods for your application, please click here to learn more.
Accessories - Arc Flash Sensors
Our arc flash protection relay supports up to 48 arc flash sensors to fit your arc flash detection relay requirements. The common arc flash detection sensor includes point sensors and fiber-optic line sensors. Besides, our arc flash rlelays can be used with other sensors like bus temperature monitoring sensors (wireless), partial discharge sensors (TEV & AE & UHF), current sensors, and smoke sensors. |
 |
 |

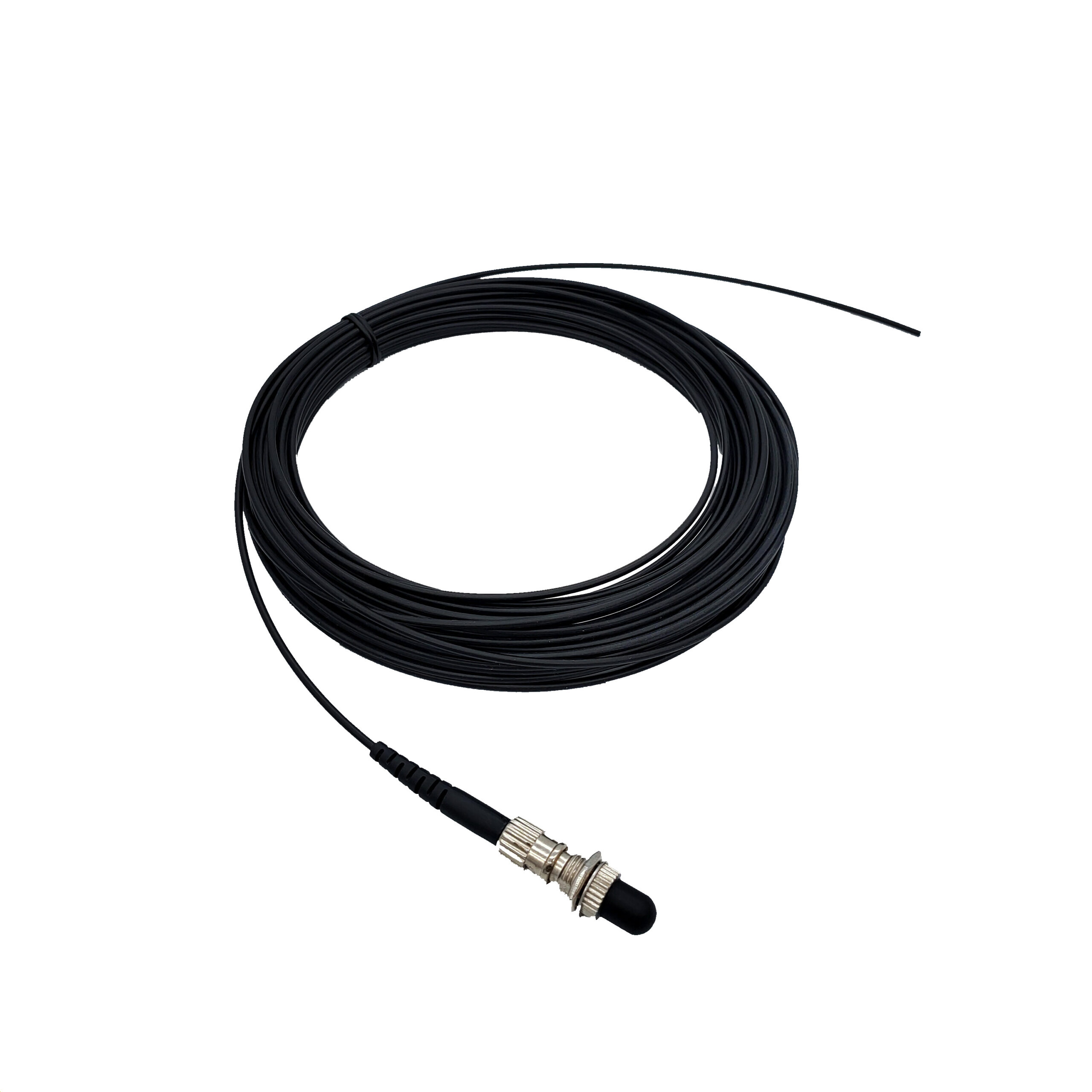

| SCM-OPUV UV light arc flash sensor • Detection angle: 0-240° • Photosensitive threshold: 1-10mw/cm² • Default trigger threshold: 5mw/ cm² |
SCM-OPVL1 visible light arc flash sensor • Detection angle: 0-240° • Max.transmission distance: <30 m • Photosensitive threshold: 5-20KLUX. |

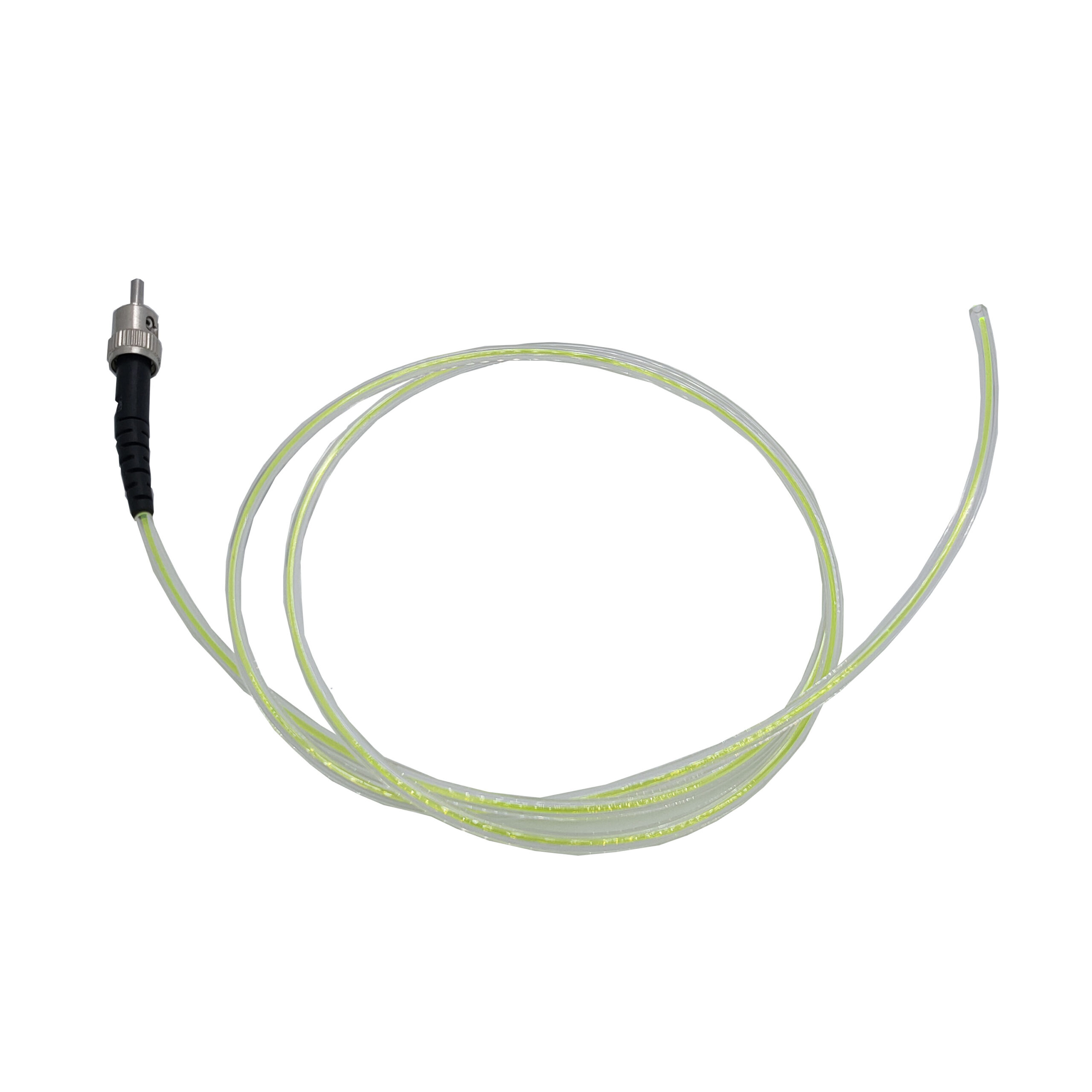

SCM-OPVL2 visible light arc flash sensor • Detection angle: 0-360°. • Photosensitive threshold: 5-20KLUX • Trigger threshold: 8KLUX |
Your One-Stop Source for Customized Arc Protection Relay
Blue Jay arc detection relay includes 3-12 Channel options. Our multi-channel arc flash relays are the most popular options for busbar protection and feeder protection. We also provide numerous types of arc detection device. They are Arc flash detection relays using light sensors, Arc fault protection relays using current sensors, and Arc flash relays using both light and current sensors.
Need customized features such as channels, communication ports, or logos for your arc fault protection system? Blue Jay can provide a one-stop solution for customized arc flash protection project cases. With over 10 years of customized experience, we can customize your arc flash relay quickly, so you can have them in as little as one week. Contact us for an Instant Quote now!
Browse an arc flash protection system for switchgear that Blue Jay offers right here. If you need to know the selection factors of arc relays, read our guide on how to choose an arc flash detector.
