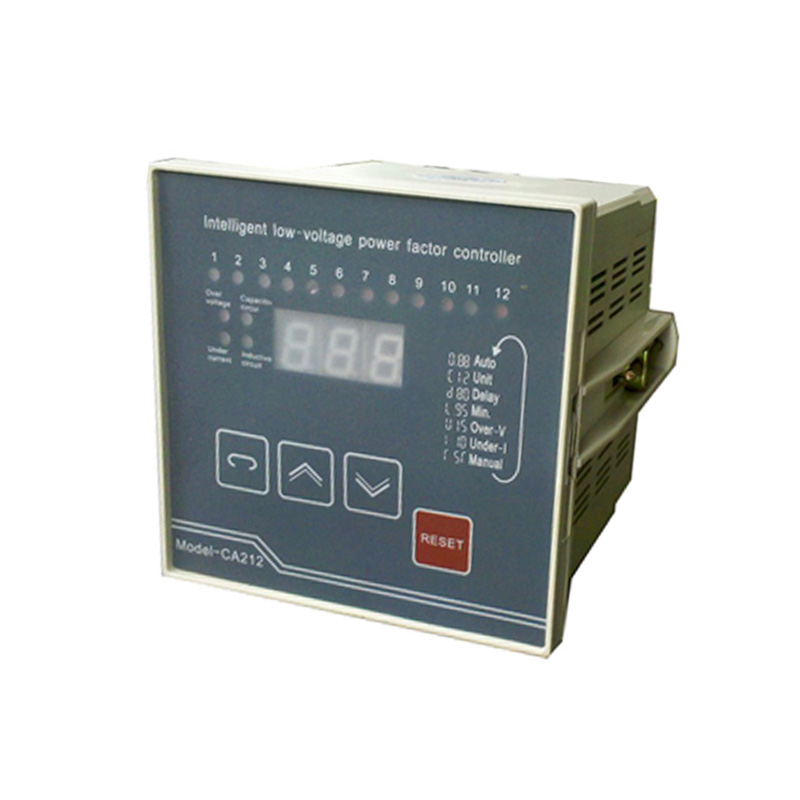

CA212 Basic Power Factor Controller

CA212 Basic Power Factor Controller

CA-212 power factor controller has been designed to ensure high accuracy in power factor regulation and excellent utilization of capacitor banks and relays in three phases 3 wire electrical grid. The common range for all network voltages is from 100V to 440V. The system reactive power compensation front panel is equipped with a 3-digit 7-segment display to show the present value of power factor voltage and line current.

Max 12 steps relay output for contactor, easy commission, and optional LCD display screen(provide power monitor function and CT ratio setting).

CA-212 power factor controller has been designed to ensure high accuracy in power factor regulation and excellent utilization of capacitor banks and relays in three phases 3 wire electrical grid. The common range for all network voltages is from 100V to 440V. The system reactive power compensation front panel is equipped with a 3-digit 7-segment display to show the present value of power factor voltage and line current.

Max 12 steps relay output for contactor, easy commission, and optional LCD display screen(provide power monitor function and CT ratio setting).

CA212 Power Factor Controller Specification

Sampling voltage AC 380V  ± 20%, optional 220V, 110V
50Hz ± 5%
Overload 1.5 x U cont. 4 x U for 1 sec
Sampling current 0 ~ 5A /<0.1Ω
Measuring parameters of grid Reactive Power, Power Factor
Measuring precision Voltage: 0.5class; Current: 0.5 class;
Power factor: 0.5 class; Frequency: 0.5 class
Active power: 1.0 class; Reactive power: 2.0 class
PF control threshold Turn on 0.90 ~ 0.99
Turn off -1.0 ~ -0.90
Delay time of switching output 10s ~ 120s
Over-voltage protective setting 5 10 15 20%Ue adjustable and 5V hysteresis
Under-current protective setting 2 4 6 8 10%Ie adjustable and 1.5%Ie hysteresis
Diamension 144 x 144 x 50 mm
138 x 138 mm cut out size

Features

-. I / U / COS measurement


-. Three digital LED display


-. Max 12 control steps (default 6 steps)


-. Used in three-phase balance gird


-. Self-powered from bus line

Download

BJ-CA212-User manual-V1.5
