Voltage Presence Indicator Compatibility Guide for Switchgear
Blue Jay Technology Voltage Presence Indicator (VPIS) is designed for both new installations and retrofit projects in medium- and high-voltage switchgear. Our solutions support power systems from 1 kV to 52 kV and can work for cable, transformer, circuit breaker, switch/Load break switch, and metering compartments inside switchgear panels.
Whether you are manufacturing new switchgear or upgrading existing equipment, selecting a compatible VPIS is essential for safe voltage indication and reliable operation. In this guide, you’ll find compatible switchgear brands, typical models, and practical guidance for choosing the right VPIS or Voltage Detecting System (VDS) for your application.
Electric Switchgear Compatible with Blue Jay VPIS
Blue Jay VPIS is designed to work with medium-voltage & high-voltage switchgear from many of the world’s leading manufacturers, including ABB, Schneider Electric, Siemens, Eaton, Ormazabal, Driescher, and Lucy Electric. The following sections introduce the compatible brands and their typical switchgear models commonly used in power distribution systems.
Switcgear Manufacturer & Model | Nominal voltage Range of switchgear | Recommended Blue Jay Model | Switchagear Panel Application |

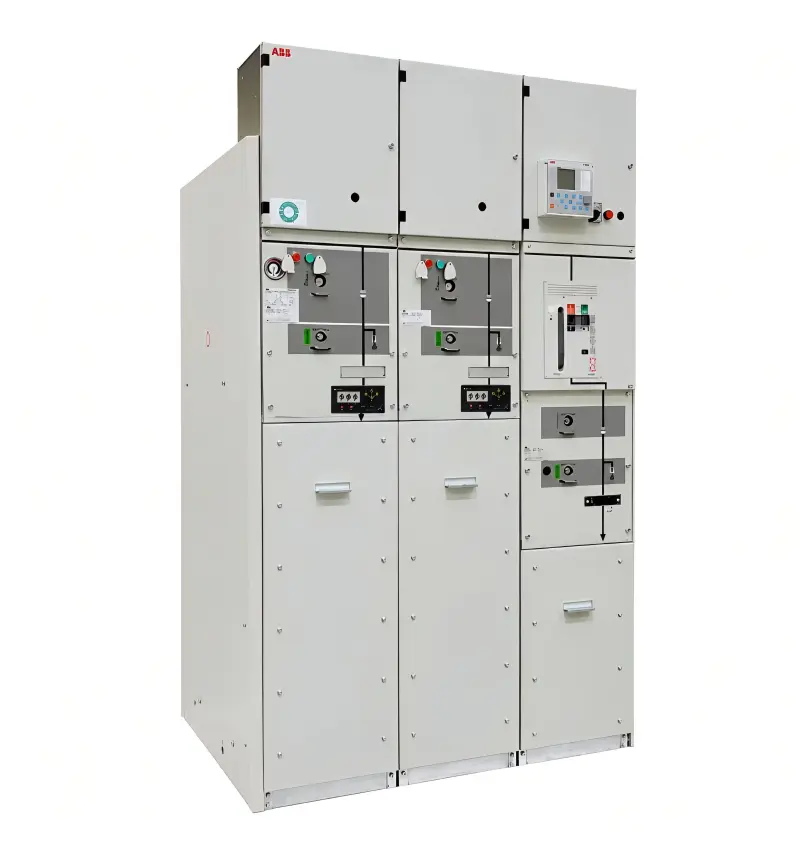

ABB SafeRing Switchgear | 10-20KV, 40.5 kV | CVI-2R VDIS | cable, transformer, circuit breaker compartment |
ABB SafePlus Switchgear | 10-20KV | cable, transformer, circuit breaker compartment |
Switcgear Manufacturer & Model | Nominal voltage Range of switchgear | Recommended Blue Jay Model | Switchagear Panel Application |

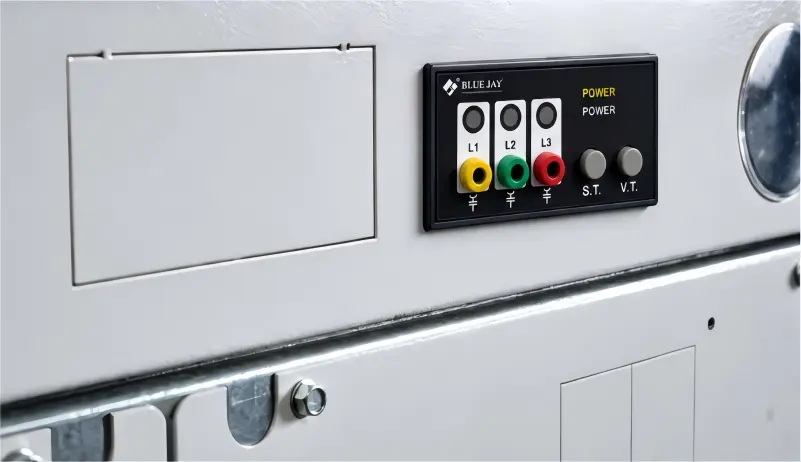

Schnider FBX Swichgear | 10-24KV | CVI Series VPIS | cable, transformer, circuit breaker, C, C1, T1, T2, R, RE |
Schnider RM6 Swichgear | 10-20KV | cable, transformer, circuit breaker compartment | |
Schnider SM6 Switchgear | 10KV, 20KV | cable, transformer compartment |
Switcgear Manufacturer & Model | Nominal voltage Range of switchgear | Recommended Blue Jay Model | Switchagear Panel Application |

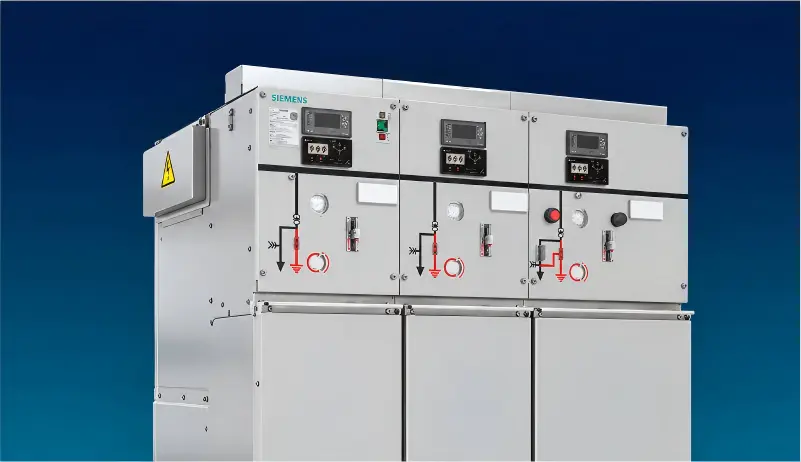

Siemens 8DJH Switchgear | 10-21.5KV | CVI-2R VDIS | cable, transformer, metering compartment |
Siemens 8DA/DB (Innenkonus S2, S3, S4 & | 10KV, 20KV | cable |
Switcgear Manufacturer & Model | Nominal voltage Range of switchgear | Recommended Blue Jay Model | Switchagear Panel Application |

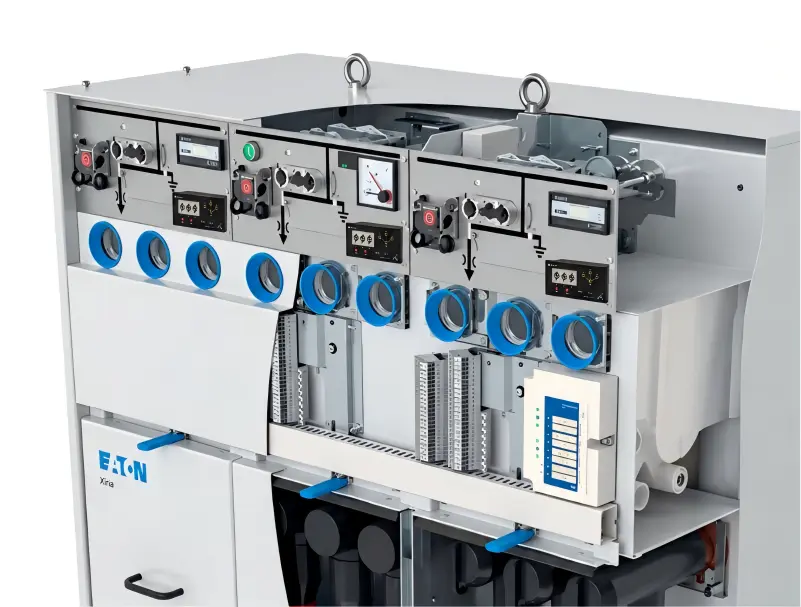

Eaton XIRIA switchgear | 10.0- 17.5 kV | CVI-2R VDIS | Cable, transformer, circuit breaker compartment |
Eaton XIRIA switchgear | 13.8-24KV | Cable, transformer, circuit breaker compartment |
Switcgear Manufacturer & Model | Nominal voltage Range of switchgear | Recommended Blue Jay Model | Switchagear Panel Application |

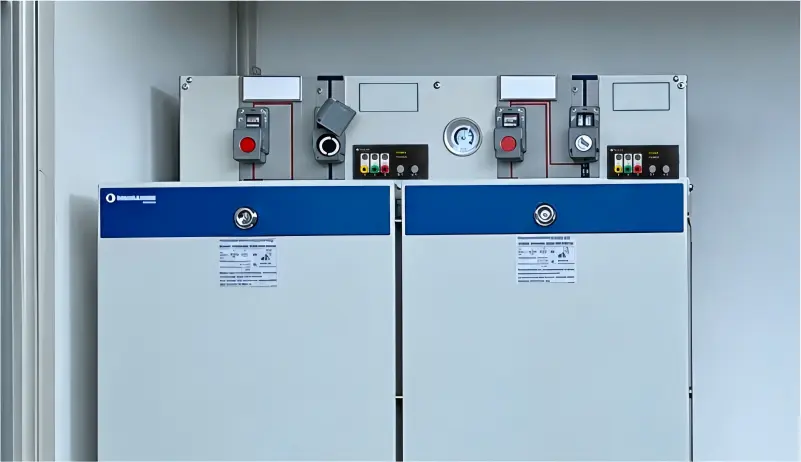

Ormazabal ga switchgear | 10-20KV | CVI Series VPIS | Cable, transformer, circuit breaker, metering compartment |
Ormazabal gae switchgear | 10-20KV | Cable, transformer, circuit breaker, metering compartment |
Switcgear Manufacturer & Model | Nominal voltage Range of switchgear | Recommended Blue Jay Model | Switchagear Panel Application |

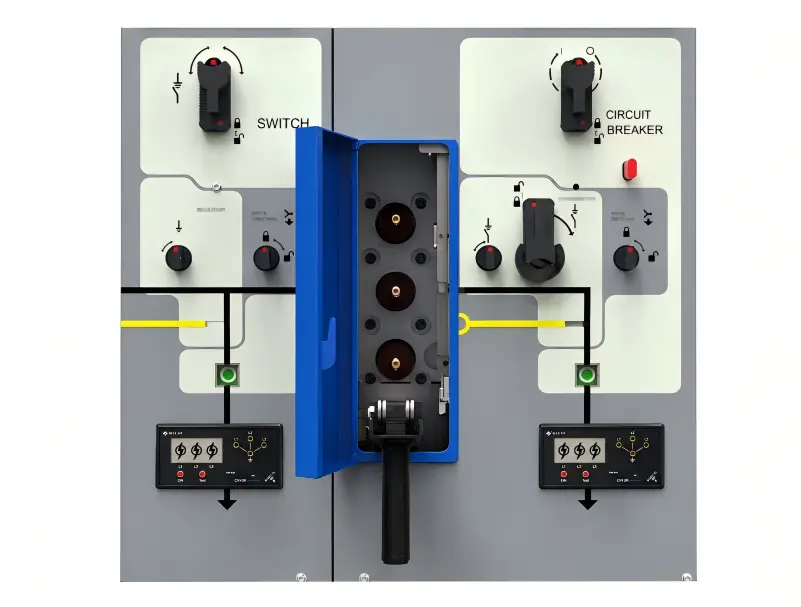

Lucy Electric Aegis Plus Switchgear | 10-24KV | CVI-2R VDIS | Switch, circuit breaker compartment |
Switcgear Manufacturer & Model | Nominal voltage Range of switchgear | Recommended Blue Jay Model | Switchagear Panel Application |
Driescher Minex Switchgear | 10-20KV | CVI Series VPIS | Cable, transformer, circuit breaker compartment |
Driescher Minex-C Switchgear | 10-20KV | Cable, transformer, circuit breaker compartment |
Why Switchgear & VPIS Compatibility Matters？
A Voltage Presence Indicator must match the switchgear’s voltage level, capacitive interface, and panel design to provide reliable voltage indication. Proper compatibility not only ensures safe maintenance but also simplifies installation, reduces engineering effort, and supports both OEM integration and retrofit applications.
How to Choose the Right Voltage Presence Indicator for Your Switchgear
Before selecting a high-voltage live-line indicator, you must first verify whether your switchgear is compatible with the VPIS. Generally, VPIS compatibility with switchgear depends on three key factors: system voltage, switchgear type, and the capacitive interface. Once these parameters are confirmed, you can select the appropriate VPIS or VDS solution for your switchgear.
Step 1: Check the System Voltage
The first step is to identify the rated system voltage of your switchgear. Different VPIS models are designed for different voltage classes, such as 1 kV, 10 kV, 20 kV, 24 kV, and up to 52 kV. Selecting a VPIS with the correct voltage rating ensures reliable voltage indication and safe operation.
Step 2: Identify the Switchgear Type
Next, determine the switchgear manufacturer and model, as well as the insulation type.
Typical information includes:
– Manufacturer (ABB, Siemens, Schneider, Eaton, etc.)
– Switchgear model (RM6, SafeRing, 8DJH, XIRIA…)
– Insulation type (GIS, AIS, Solid Insulated)
This information helps determine the appropriate installation method and compatible interface.
Step 3: Verify the Capacitive Interface
The capacitive interface is one of the most important factors in VPIS selection.
You should confirm:
– C1 capacitance value
– Sensor type
– Capacitive interface design
These parameters determine whether the VPIS can accurately detect voltage and connect correctly to the switchgear.
Step 4: Choose the Right VPIS Solution
Once the compatibility has been confirmed, you can select the most suitable VPIS solution based on your project requirements.
Consider the following factors:
– New installation or retrofit project
– Operating voltage
– Switchgear brand and model
– Capacitive interface type
– Application requirements (RMU, GIS, transformer, circuit breaker, etc.)
If you are unsure which model to choose, providing the above information will help our engineers recommend the most suitable Blue Jay VPIS solution for your application.
Conclusion
Choosing the right Voltage Presence Indicator (VPIS) for your switchgear requires careful consideration of system voltage, capacitive sensor specifications, and installation requirements. Blue Jay offers CVI Series VPIS and CVI-2R VDIS solutions for a wide range of switchgear applications, including new installations and retrofit projects. By verifying compatibility with your existing switchgear, you can achieve reliable voltage indication and ensure proper system integration. Contact Blue Jay with your switchgear model and sensor specifications to find the right solution for your application.
