Feature
Wide range of Application

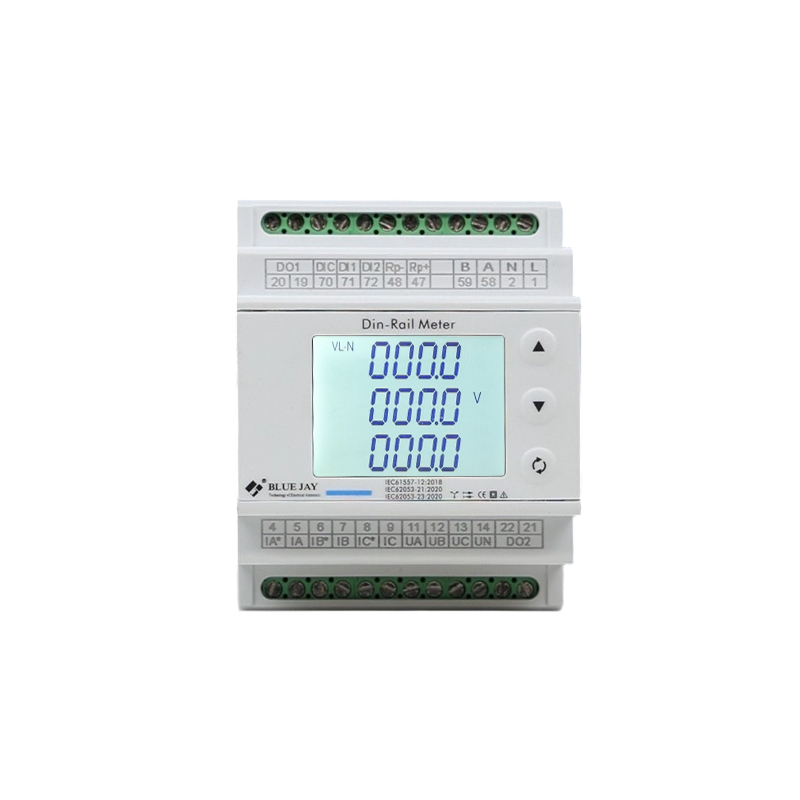

The DEM-4MC din rail 3 phase energy meter supports current rating up to 999A with the 100mA/333mV external CT connection. Besides, multi-DI/DO port configuration is available. Thus, it is widely used for 1 phase 2 wires, 3 phase 3 wires, 3 phase 4 wires systems in residential billing, room rental billing and industrial applications.
The DEM-4MC din rail 3 phase energy meter supports current rating up to 999A with the 100mA/333mV external CT connection. Besides, multi-DI/DO port configuration is available. Thus, it is widely used for 1 phase 2 wires, 3 phase 3 wires, 3 phase 4 wires systems in residential billing, room rental billing and industrial applications.
High Accuracy Measurement for basic and& optional advanced electrical parameters
The DEM-4MC three phase din rail energy meter, a new design monitoring solution, can measure and monitor active energy (kWh), reactive energy (kVarh), active power (W), reactive power (Var), apparent power (VA), voltage (V), current (A), power factor, demand, and frequency. Besides, you also can configurate the advanced parameter measurements such as harmonics, power quality. In general, accuracy class 0.5 per IEC61557 or IEC62053. Accuracy of ± 0.5% for voltage & current, 0.1% for Frequency, 0.01% for PF, 1% for Power, Class 1 for Active energy, Class 2 for reactive energy.
The DEM-4MC three phase din rail energy meter, a new design monitoring solution, can measure and monitor active energy (kWh), reactive energy (kVarh), active power (W), reactive power (Var), apparent power (VA), voltage (V), current (A), power factor, demand, and frequency. Besides, you also can configurate the advanced parameter measurements such as harmonics, power quality. In general, accuracy class 0.5 per IEC61557 or IEC62053. Accuracy of ± 0.5% for voltage & current, 0.1% for Frequency, 0.01% for PF, 1% for Power, Class 1 for Active energy, Class 2 for reactive energy.
Type of output
Both RS485 ouput and pulse ouput are option for 3 phase kwh meter din rail. Configurate your ouput for import or export energy measurement. Support 1 RS485 ouput, 1 Pulse output, or combination of one RS485 ouput and one one pulse output.
Both RS485 ouput and pulse ouput are option for 3 phase kwh meter din rail. Configurate your ouput for import or export energy measurement. Support 1 RS485 ouput, 1 Pulse output, or combination of one RS485 ouput and one one pulse output.
Compact size and easy mounting

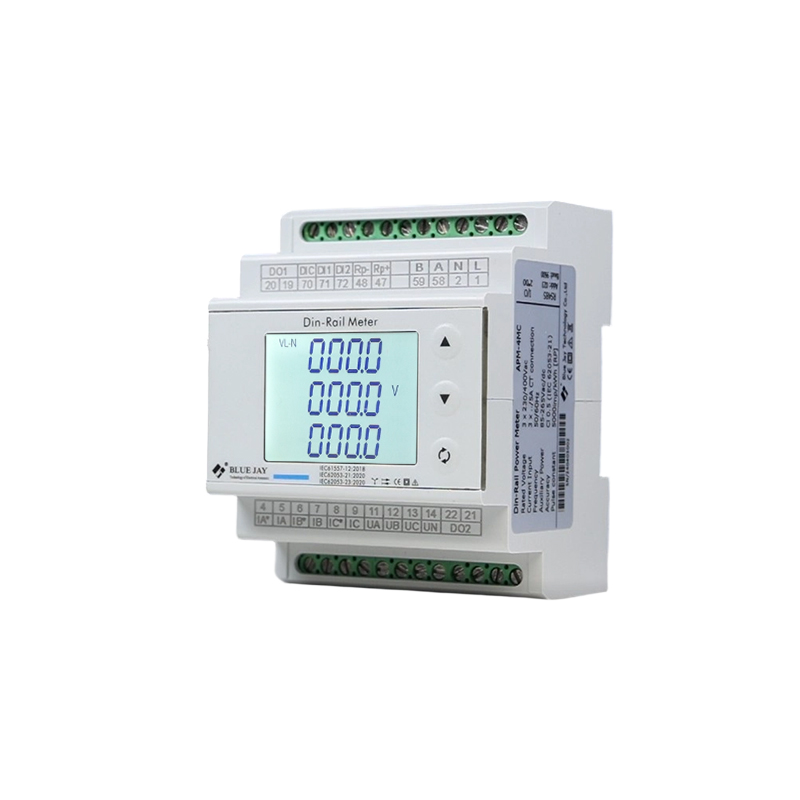

The DEM-4MC din rail power meter 3 phase adpots modern compact design, which allows for installation of the energy meter in modular switchgear in accordance with EN 62208 ( energy meter has a width of 4 modules) on 35 mm rail. The size is 78*90*60mm. The small size and din rail installation make you easiy mounting in the on-site.
The DEM-4MC din rail power meter 3 phase adpots modern compact design, which allows for installation of the energy meter in modular switchgear in accordance with EN 62208 ( energy meter has a width of 4 modules) on 35 mm rail. The size is 78*90*60mm. The small size and din rail installation make you easiy mounting in the on-site.
